EL53L-ADMRKA (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

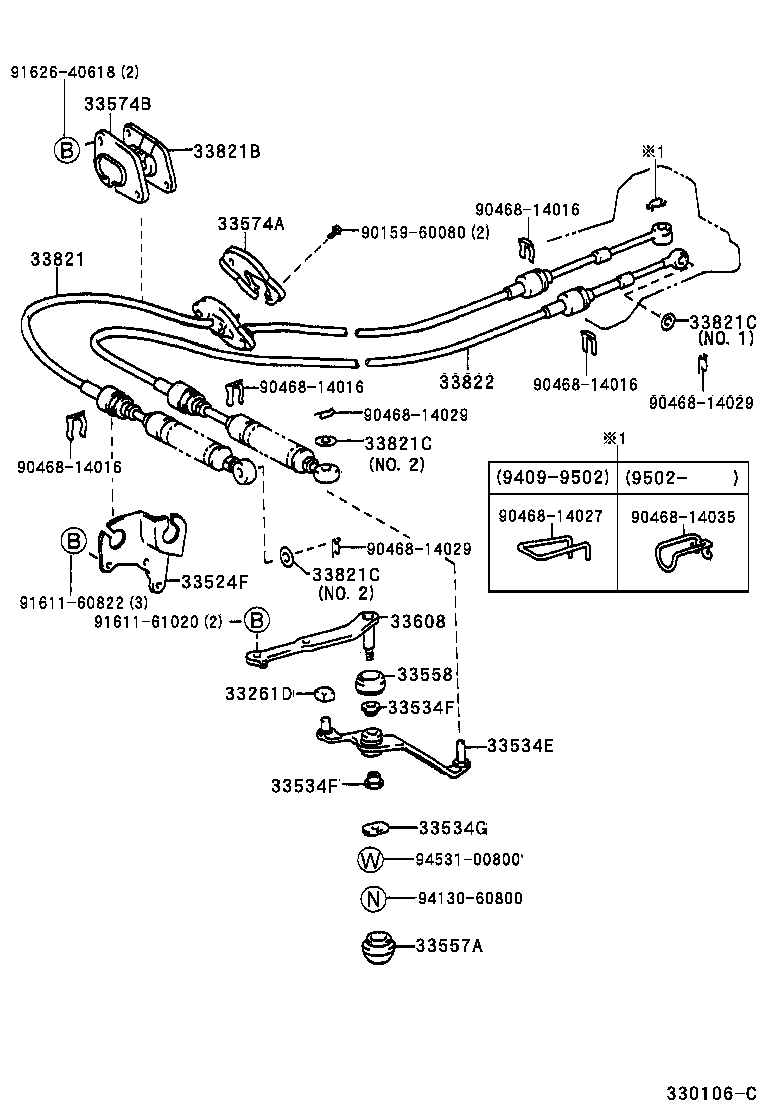

ILLUST NO. 2 OF 2(9409- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 33557-33010 |
EL53..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-16040 |
EL53..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
EL53..MTM |
1 | ||
| 33534-10060 |
EL53..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EL53..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EL53..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EL53..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EL53..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EL53..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EL53..4F,4FC,5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EL53 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10032 |
EL53..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-16150 |
EL53..MTM |
1 | ||
| 33821-16151 |
EL53..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EL53..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
EL53..5F OD=28,NO.2 |
2 | ||
| 90201-08023 |
EL53..MTM NO.1 |
1 | ||
| 90201-08077 |
EL53..MTM OD=30,NO.2 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
EL53..5F OD=28,NO.2 |
2 | ||
| 90201-08023 |
EL53..MTM NO.1 |
1 | ||
| 90201-08077 |
EL53..MTM OD=30,NO.2 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
EL53..5F OD=28,NO.2 |
2 | ||
| 90201-08023 |
EL53..MTM NO.1 |
1 | ||
| 90201-08077 |
EL53..MTM OD=30,NO.2 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-16050 |
EL53..MTM |
1 | ||
| Common parts | ||||
| 90159-60080 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14029 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91611-61020 | ||||
| 91626-40618 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||

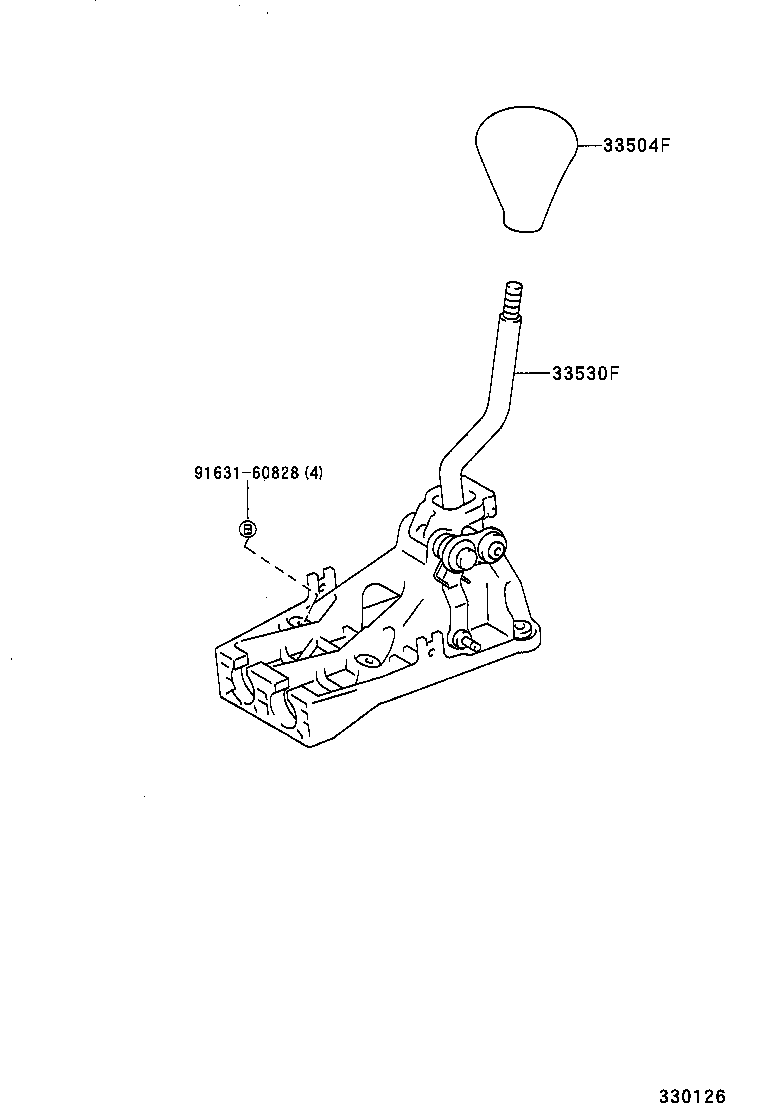

ILLUST NO. 1 OF 2(9409- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-24010E8 |
EL53..5F SANDAL WOOD,TRIM4# |
1 | ||
| 33504-24010B4 |
EL53..5F BLUISH GRAY,TRIM1# |
1 | ||
| 33504-24010E3 |
EL53..5F OAK,TRIM4# |
1 | ||
| 33504-24010B1 |
EL53..5F DARK SMOKE GRAY,TRIM1# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-16140 |
EL53..MTM |
1 | ||
| 33530-16150 |
EL53..5F |
1 | ||
| Common parts | ||||
| 91631-60828 | ||||
