EL53L-ADHRKA (1996)
Toyota Tercel
Production
Aug 1996
-
Jul 1999
Engine
5EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

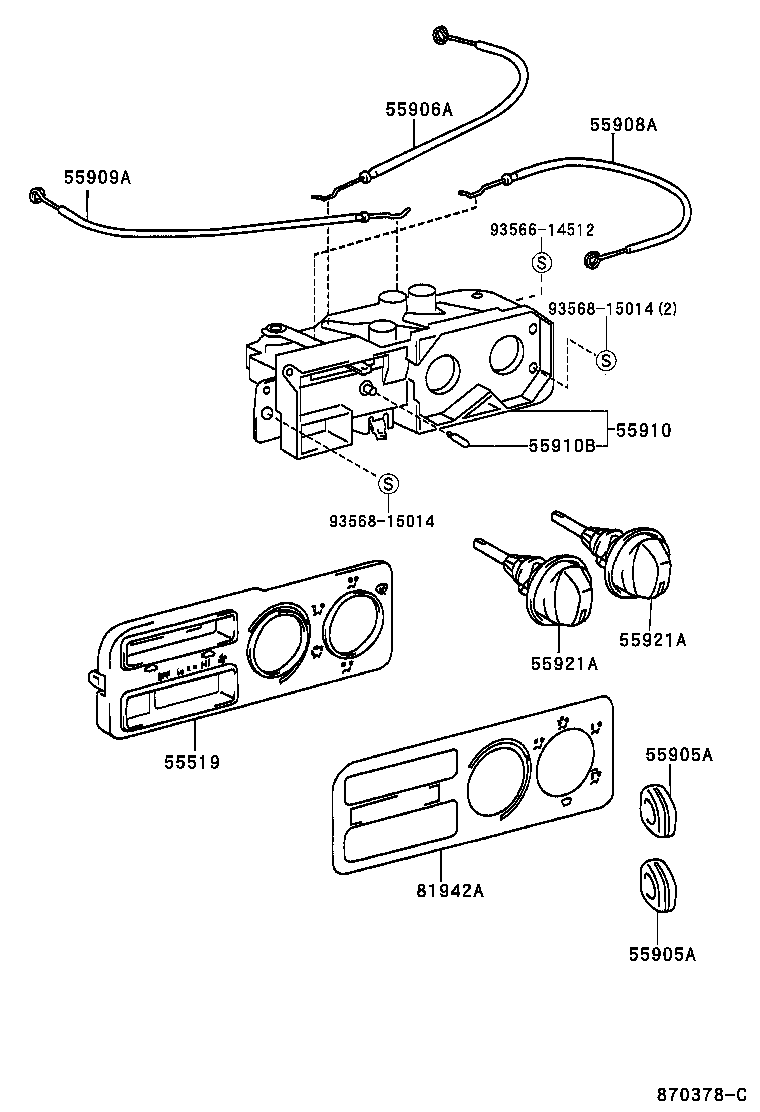

ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16250 |
EL53 |
1 | ||
| 55519-16140 |
EL53 |
1 | ||
| 55519-16260 |
EL53..USA W(AIR CONDITIONER) |
1 | ||
| 55519-16190 |
EL53 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL53 |
2 | ||
| 55905-89115 |
EL53 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16130 |
EL53 |
1 | ||
| 55906-16100 |
EL53 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16120 |
EL53 |
1 | ||
| 55908-16100 |
EL53 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16110 |
EL53 |
1 | ||
| 55909-16140 |
EL53 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16280 |
EL53 |
1 | ||
| 55910-16340 |
EL53 |
1 | ||
| 55910-16220 |
EL53 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90981-11014 |
EL53 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-16020 |
EL53 |
2 | ||
| 55921-10050 |
EL53 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-16020 |
EL53 |
2 | ||
| 55921-10050 |
EL53 |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16330 |
EL53 |
1 | ||
| 81942-16271 |
EL53 |
1 | ||
| 81942-16230 |
EL53 |
1 | ||
| 81942-16270 |
EL53 |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| 93568-15014 | ||||
