EL53L-ADHBKA (1994)

Toyota Tercel

Production Sep 1994 - Aug 1996
Engine 5EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409-9608)STD

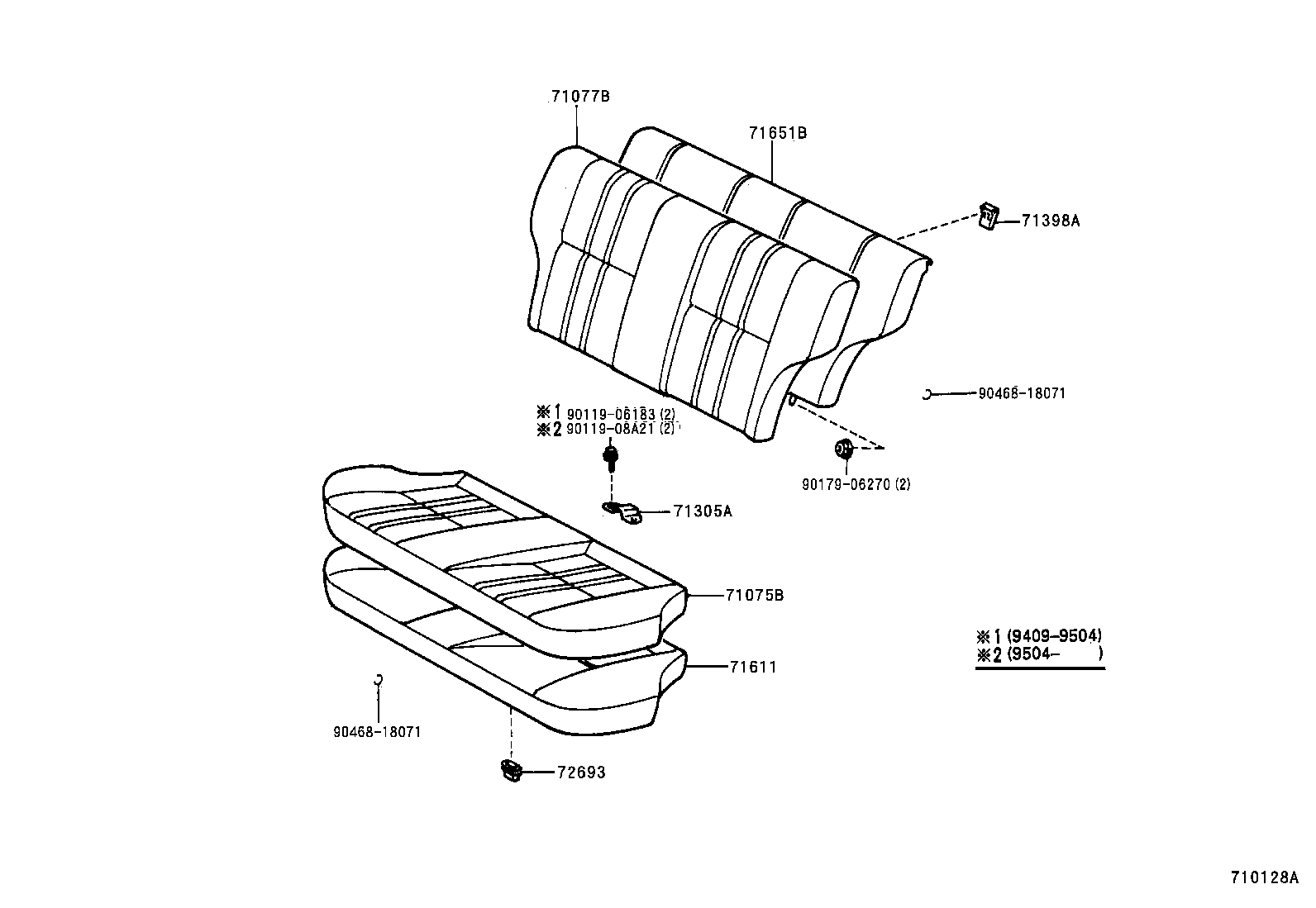

Click highlighted areas on diagram

diagram 71075B 71077B 71305A 71398A 71611 71651B 72693 9011906183 9011908A21 9017906270 9046818071 9046818071
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-16750B0

EL53..STD

BLUISH GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1G680B0

EL53..STD

BLUISH GRAY,TRIM1#

 1
71077-1G740E0

EL53..STD..USA

BLACK HAWK,OAK,TRIM4#

 1
71077-1G740B0

EL53..STD

STD PACKAGE,BLUISH GRAY,TRIM1#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71343-16090

EL53..2DS

 1
71343-16070

EL53

 1
71398A - HOLDER, REAR SEAT BACK
71398-32010

EL53

 2
71611 - PAD, REAR SEAT CUSHION
71503-16070

EL53..STD

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-16060

EL53

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL53

 2
Common parts
90119-06183
90119-08A21
90179-06270
90468-18071

(9409-9712)

Click highlighted areas on diagram

diagram 71077B 71305A 71398A 71460B 71480B 71651B 72693 9011906183 9011908A21 9017906270 9046818071
Part # Description Qty Price
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1G680B0

EL53..STD

BLUISH GRAY,TRIM1#

 1
71077-1G740E0

EL53..STD..USA

BLACK HAWK,OAK,TRIM4#

 1
71077-1G740B0

EL53..STD

STD PACKAGE,BLUISH GRAY,TRIM1#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71343-16090

EL53..2DS

 1
71343-16070

EL53

 1
71398A - HOLDER, REAR SEAT BACK
71398-32010

EL53

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G030E0

EL53..STD..USA

BLACK HAWK,OAK,TRIM4

 1
71460-1G030B0

EL53..2DS

BLUISH GRAY,TRIM1#

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-16060

EL53

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL53

 2
Common parts
90119-06183
90119-08A21
90179-06270
90468-18071

(9409-9712)

Click highlighted areas on diagram

diagram 71017 71018 71077S 71078S 71303C 71304C 71305A 71460B 71480S 71490S 71651S 71652S 71832A 72601A 72602A 72630C 72640A 72693 9010508102 9010508102 9010508102 9011906183 9011906183 9011906183 9011908A21 9011908A21 9011908A21 9046710023 9046818071 9046818071 9161260614 9161260614
Part # Description Qty Price
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71343-16090

EL53..2DS

 1
71343-16070

EL53

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G030E0

EL53..STD..USA

BLACK HAWK,OAK,TRIM4

 1
71460-1G030B0

EL53..2DS

BLUISH GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL53

 2
Common parts
90105-08102
90119-06183
90119-08A21
90467-10023
90468-18071
91612-60614
