EL42L-AEMREK (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994
Engine 3EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

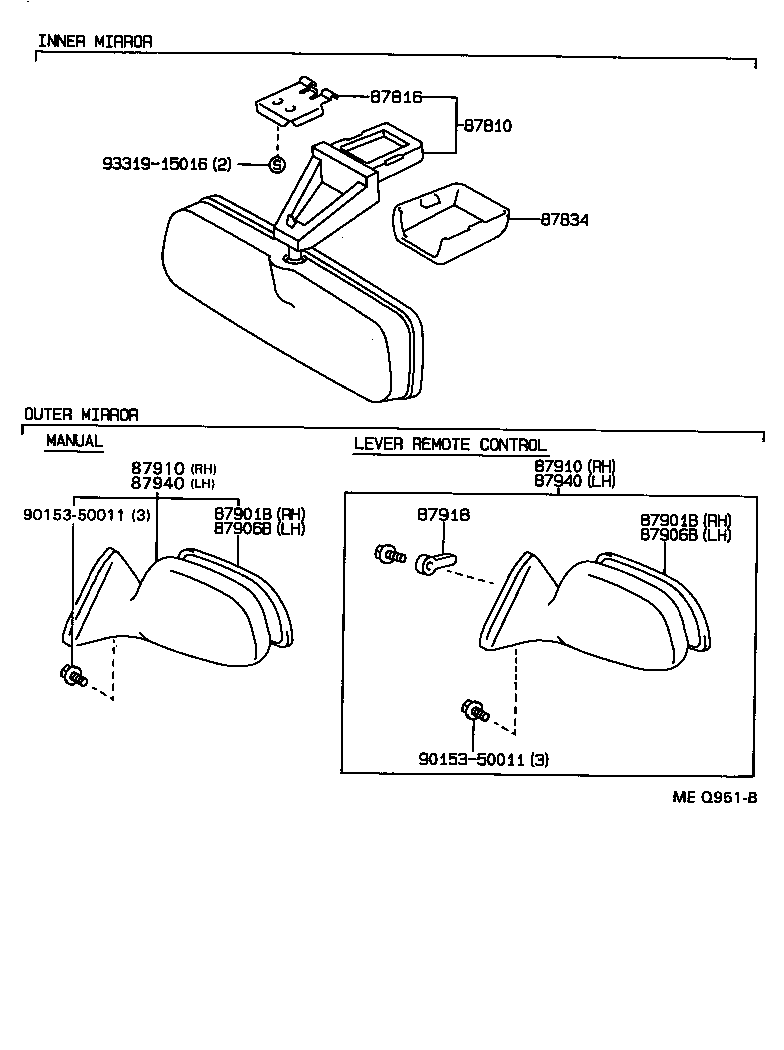

Click highlighted areas on diagram

diagram 87810 87816 87834 87901B 87901B 87906B 87906B 87910 87910 87918 87940 87940 9015350011 9015350011 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1224013

EL42..DLX,LE

GRAY,TRIM2#

 1
87810-1224014

EL42..DLX,LE

GRAYISH BLUE,TRIM8#

 1
87810-12240W7

EL42..DLX,LE

LI.BLUE,TRIM8#

 1
87810-12240S3

EL42..DLX,LE

GRAY,TRIM2#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

EL42

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-12030S3

EL42

GRAY,TRIM2#

 1
87834-1203014

EL42..DLX,LE

GRAYISH BLUE,TRIM8#

 1
87834-1203013

EL42

GRAY,TRIM2#

 1
87834-12030W7

EL42..DLX,LE

LI.BLUE,TRIM8#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-16510

EL42..DLX,LE

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-16510

EL42..DLX,LE

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-16550

EL42

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-16550

EL42

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16570

EL42..4DS..DLX

 1
87910-16510

EL42..4DS..DLX..CND

LEVER REMOTE CONTROL TYPE

 1
87910-16510

EL42..4DS..DLX

LEVER REMOTE CONTROL TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16570

EL42..4DS..DLX

 1
87910-16510

EL42..4DS..DLX..CND

LEVER REMOTE CONTROL TYPE

 1
87910-16510

EL42..4DS..DLX

LEVER REMOTE CONTROL TYPE

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-16010

EL42..DLX,LE

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16550

EL42..4DS..DLX..CND

LEVER REMOTE CONTROL TYPE

 1
87940-16550

EL42..4DS..DLX

LEVER REMOTE CONTROL TYPE

 1
87940-16560

EL42..4DS..DLX

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16550

EL42..4DS..DLX..CND

LEVER REMOTE CONTROL TYPE

 1
87940-16550

EL42..4DS..DLX

LEVER REMOTE CONTROL TYPE

 1
87940-16560

EL42..4DS..DLX

 1
Common parts
90153-50011
93319-15016
