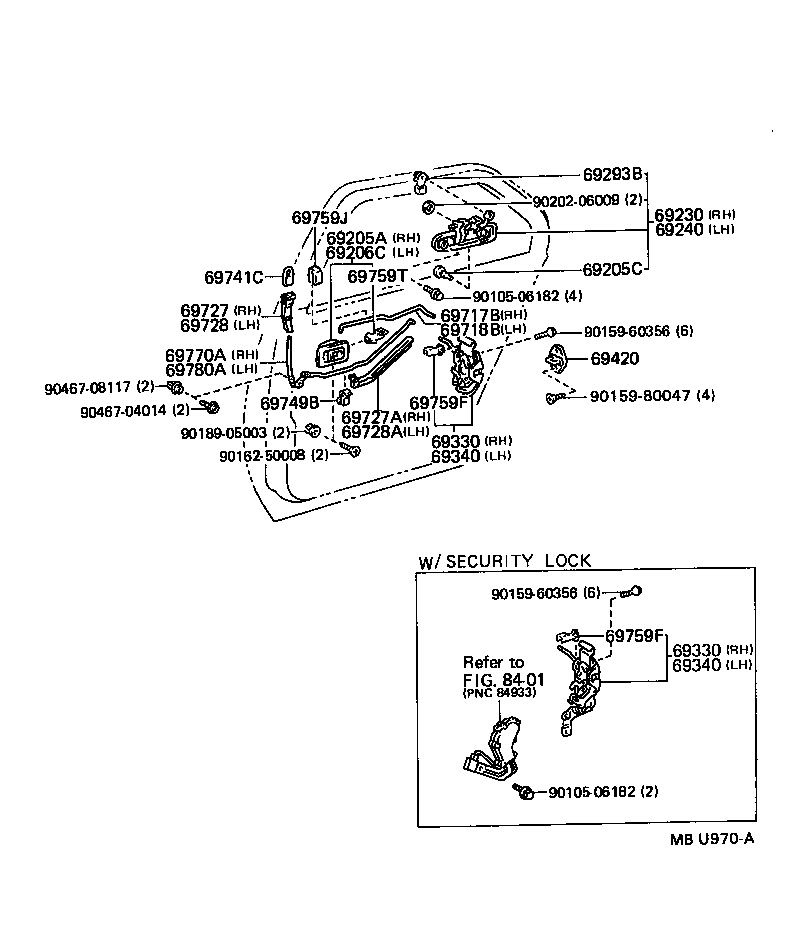

Toyota Tercel EL42 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206-10070W4	EL42..4DS EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
69206-1007001	EL42..4DS BLACK,TRIM2#	09/1990 - 08/1992	1
69206-1007022	EL42..4DS BLACK,TRIM2#	08/1992 - 09/1994	1
69206-1007014	EL42..4DS GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014	EL42..4DS	09/1990 - 09/1994	4
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69205-1007022	EL42..4DS BLACK,TRIM2#	08/1992 - 09/1994	1
69205-1007014	EL42..4DS GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
69205-10070W4	EL42..4DS EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
69205-1007001	EL42..4DS BLACK,TRIM2#	09/1990 - 08/1992	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-16050	EL42..4DS	09/1990 - 09/1994	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-16050	EL42..4DS	09/1990 - 09/1994	1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12060	EL42..4DS RH	11/1993 - 09/1994	1
69293-12050	EL42..4DS LH	11/1993 - 09/1994	1
69293-16080	EL42..4DS RH	09/1990 - 11/1993	1
69293-16070	EL42..4DS LH	09/1990 - 11/1993	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-16170	EL42..4DS	09/1990 - 09/1994	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-16170	EL42..4DS	09/1990 - 09/1994	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-16170	EL42..4DS	09/1990 - 09/1994	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-16170	EL42..4DS	09/1990 - 09/1994	1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001	EL42..4DS	09/1990 - 09/1994	2
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-16040	EL42..4DS	09/1990 - 09/1994	1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-16040	EL42..4DS	09/1990 - 09/1994	1
69727 - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69727-16010	EL42..4DS	09/1990 - 09/1994	1
69727A - PROTECTOR, REAR DOOR INSIDE LOCKING LINK
69727-16020	EL42..4DS	09/1990 - 09/1994	1
69728 - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69728-16010	EL42..4DS	09/1990 - 09/1994	1
69728A - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69728-16020	EL42..4DS	09/1990 - 09/1994	1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-90K0020	EL42..4DS GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	2
69741-90K0011	EL42..4DS NEW BLACK,TRIM2#	09/1990 - 08/1992	2
69741-90K00C0	EL42..4DS BLACK,TRIM2#	08/1992 - 09/1994	2
69741-90K00W4	EL42..4DS EISEN BLUE,TRIM8#	08/1992 - 09/1994	2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010	EL42..4DS	09/1990 - 09/1994	2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20040	EL42..4DS YELLOW	09/1990 - 08/1992	2
69759-20050	EL42..4DS BROWN	09/1990 - 08/1992	2
69759-20050	EL42..4DS BROWN	08/1992 - 09/1994	2
69759-20040	EL42..4DS YELLOW	08/1992 - 09/1994	2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20040	EL42..4DS YELLOW	09/1990 - 08/1992	2
69759-20050	EL42..4DS BROWN	09/1990 - 08/1992	2
69759-20050	EL42..4DS BROWN	08/1992 - 09/1994	2
69759-20040	EL42..4DS YELLOW	08/1992 - 09/1994	2
69759J - SILENCER, DOOR LOCK LINK
69759-95500	EL42..4DS	09/1990 - 07/1992	2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-20060	EL42..4DS LH	09/1990 - 09/1994	1
69759-20070	EL42..4DS RH	09/1990 - 09/1994	1
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-16060	EL42..4DS	09/1990 - 09/1994	1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69780-16060	EL42..4DS	09/1990 - 09/1994	1
Common parts
90105-06182
90159-60356
90159-80047
90162-50008
90189-05003
90202-06009
90467-04014
90467-08117
Linked diagrams
8401

EL42L-AEMREK (1990)

(9009- )4DS
