EL42L-AEMDEK (1990)
Toyota Tercel

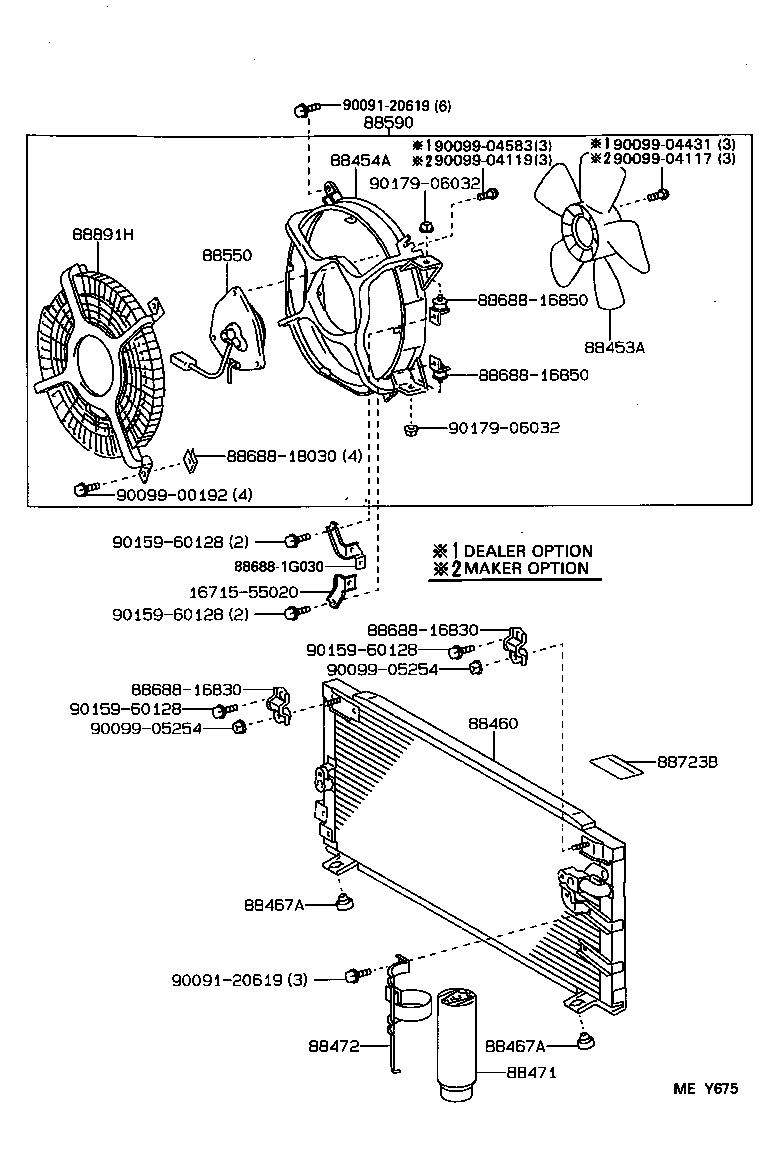

ILLUST NO. 1 OF 2(9009-9208)CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 16361-55040 |
EL42..4DS..5F..CND |
1 | ||
| 16361-55040 |
EL42..MTM |
1 | ||
| 16361-55040 |
EL42..4DS..5F..CND |
1 | ||
| 16361-55040 |
EL42..MTM |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 16711-55110 |
EL42..4DS..5F..CND |
1 | ||
| 16711-55110 |
EL42..MTM |
1 | ||
| 16711-55110 |
EL42..MTM |
1 | ||
| 16711-55110 |
EL42..4DS..5F..CND |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16310 |
EL42..4DS..CND |
1 | ||
| 88460-16311 |
EL42..4DS..CND |
1 | ||
| 88460-16230 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88460-16310 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..CND;EL42..MTM..USA |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..CND;EL42..MTM..USA |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
EL42..4DS..CND |
1 | ||
| 88471-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88471-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88471-16040 |
EL42..4DS..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16120 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88472-16120 |
EL42..4DS..CND |
1 | ||
| 88472-16110 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88472-16120 |
EL42..4DS..CND |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-55020 |
EL42..MTM |
1 | ||
| 16363-55020 |
EL42..4DS..5F..CND |
1 | ||
| 16363-55020 |
EL42..4DS..5F..CND |
1 | ||
| 16363-55020 |
EL42..MTM |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16060 |
EL42..MTM |
1 | ||
| 16370-55030 |
EL42..MTM..CND |
1 | ||
| 16370-55030 |
EL42..4DS..5F..CND |
1 | ||
| 16370-55030 |
EL42..4DS..5F..CND |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EL42..4DS..CND |
1 | ||
| 88645-10030 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88645-10030 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88645-20050 |
EL42..4DS..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16531 |
EL42..4DS..CND |
1 | ||
| 88716-16530 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716-16532 |
EL42..4DS..CND |
1 | ||
| 88716-16531 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16542 |
EL42..4DS..CND |
1 | ||
| 88716-16541 |
EL42..4DS..CND |
1 | ||
| 88716-16660 |
EL42..CND |
1 | ||
| 88716-16541 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16020 |
EL42..4DS..CND |
1 | ||
| 88723-16021 |
EL42..CND ENGLISH |
1 | ||
| 88723-20020 |
EL42 |
1 | ||
| 88723-16021 |
EL42..4DS..CND CHILE SPEC |
1 | ||
| 88723-20020 |
EL42..CND |
1 | ||
| 88723-16020 |
EL42 |
1 | ||
| 88723-16040 |
EL42..CND FRENCH |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88891-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88891-16040 |
EL42..4DS..CND |
1 | ||
| 88891-16040 |
EL42..4DS..CND |
1 | ||
| Common parts | ||||
| 16715-55010 | ||||
| 16715-55020 | ||||
| 88688-16590 | ||||
| 88688-16600 | ||||
| 88688-16830 | ||||
| 88688-16850 | ||||
| 88688-18030 | ||||
| 88718-12280 | ||||
| 90091-20619 | ||||
| 90099-00192 | ||||
| 90099-04431 | ||||
| 90099-04583 | ||||
| 90099-05254 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 90919-20619 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||

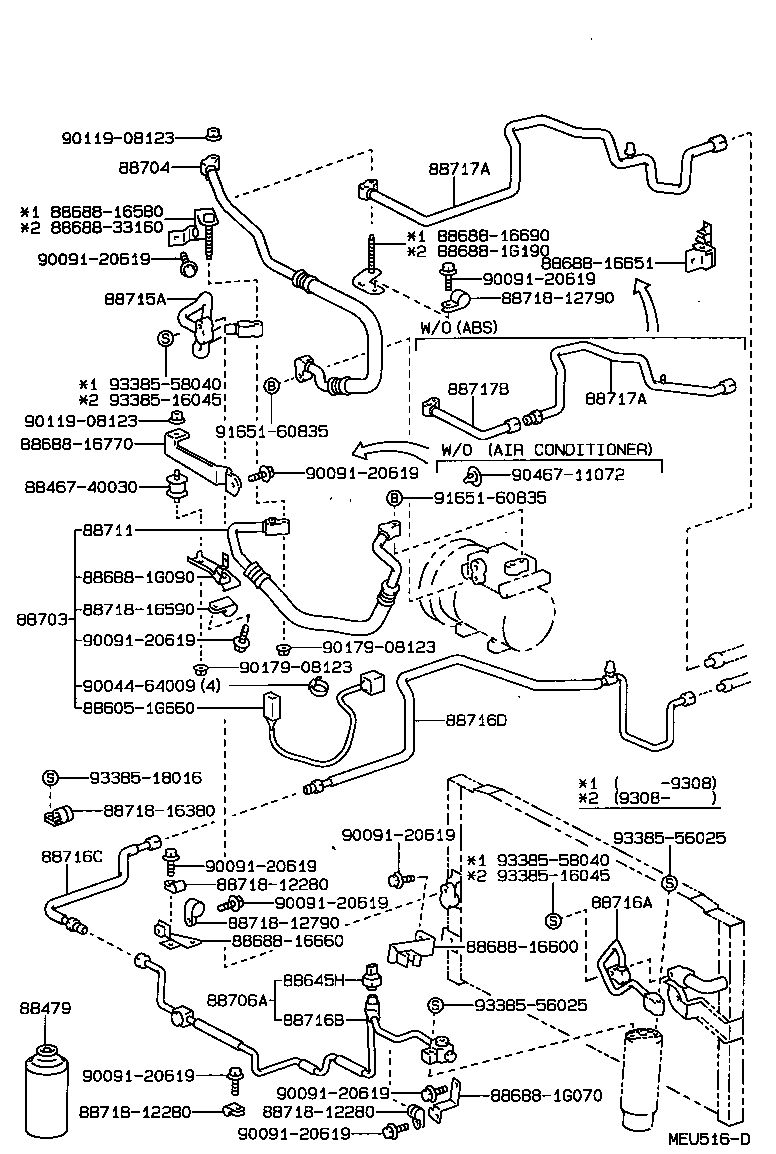

ILLUST NO. 2 OF 2(9009-9208)CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL42..CND 250G |
3 | ||
| 90986-02008 |
EL42..4DS..CND 200G |
3 | ||
| 90986-02004 |
EL42..4DS..CND 250G |
3 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-16021 |
EL42..CND |
1 | ||
| 88704-16020 |
EL42 |
1 | ||
| 88704-16022 |
EL42..CND |
1 | ||
| 88704-16240 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88704-16241 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16170 |
EL42..4DS..CND |
1 | ||
| 88711-16130 |
EL42 |
1 | ||
| 88711-16171 |
EL42..4DS..CND |
1 | ||
| 88711-16170 |
EL42 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-16030 |
EL42 |
1 | ||
| 88715-16030 |
EL42 |
1 | ||
| 88715-16030 |
EL42..4DS..CND |
1 | ||
| 88715-16031 |
EL42..4DS..CND |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16640 |
EL42..CND |
1 | ||
| 88716-16690 |
EL42..CND |
1 | ||
| 88716-16691 |
EL42 |
1 | ||
| 88716-16811 |
EL42..CND W(ABS) OR W(ABS & POWER STEERING) |
1 | ||
| 88716-16810 |
EL42..CND W(ABS) OR W(ABS & POWER STEERING) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16580 |
EL42..CND |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16190 |
EL42..CND |
1 | ||
| 88717-16110 |
EL42 |
1 | ||
| 88717-16181 |
EL42..CND |
1 | ||
| 88717-16210 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717-16211 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88688-16580 | ||||
| 88688-16650 | ||||
| 88688-16660 | ||||
| 88688-16670 | ||||
| 88688-16690 | ||||
| 88688-16770 | ||||
| 88688-16800 | ||||
| 88718-12280 | ||||
| 88718-12790 | ||||
| 88718-16380 | ||||
| 88718-1A320 | ||||
| 90091-20619 | ||||
| 90179-08123 | ||||
| 90469-11072 | ||||
| 91651-60835 | ||||
| 93385-18016 | ||||
| 93385-58040 | ||||

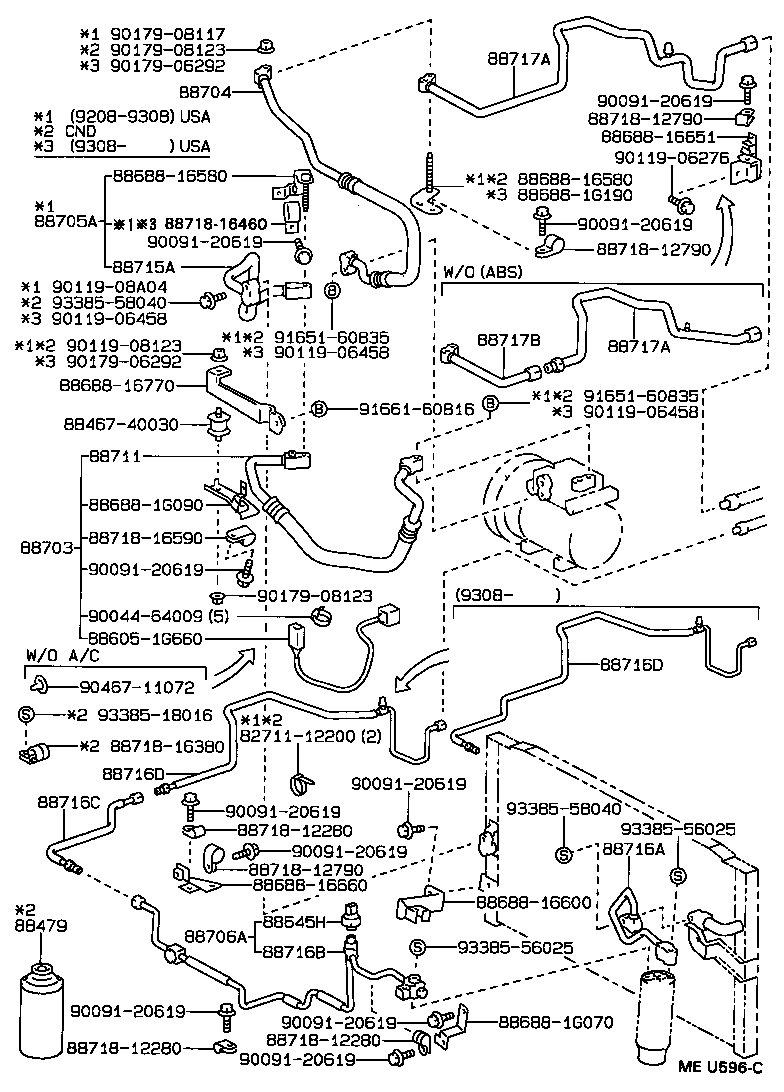

ILLUST NO. 2 OF 2(9208- )CND ; (9308- )USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL42..CND 250G |
3 | ||
| 90986-02008 |
EL42..4DS..CND 200G |
3 | ||
| 90986-02004 |
EL42..4DS..CND 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EL42..4DS..CND |
1 | ||
| 88645-10030 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88645-10030 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88645-20050 |
EL42..4DS..CND |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-16060 |
EL42..4DS..CND |
1 | ||
| 88703-16060 |
EL42 |
1 | ||
| 88703-16061 |
EL42..4DS..CND |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-16021 |
EL42..CND |
1 | ||
| 88704-16020 |
EL42 |
1 | ||
| 88704-16022 |
EL42..CND |
1 | ||
| 88704-16240 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88704-16241 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-16260 |
EL42..4DS..5F..CND |
1 | ||
| 88706-16260 |
EL42..MTM |
1 | ||
| 88706-16261 |
EL42..4DS..5F..CND |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16170 |
EL42..4DS..CND |
1 | ||
| 88711-16130 |
EL42 |
1 | ||
| 88711-16171 |
EL42..4DS..CND |
1 | ||
| 88711-16170 |
EL42 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-16030 |
EL42 |
1 | ||
| 88715-16030 |
EL42 |
1 | ||
| 88715-16030 |
EL42..4DS..CND |
1 | ||
| 88715-16031 |
EL42..4DS..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16531 |
EL42..4DS..CND |
1 | ||
| 88716-16530 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716-16532 |
EL42..4DS..CND |
1 | ||
| 88716-16531 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16542 |
EL42..4DS..CND |
1 | ||
| 88716-16541 |
EL42..4DS..CND |
1 | ||
| 88716-16660 |
EL42..CND |
1 | ||
| 88716-16541 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16640 |
EL42..CND |
1 | ||
| 88716-16690 |
EL42..CND |
1 | ||
| 88716-16691 |
EL42 |
1 | ||
| 88716-16811 |
EL42..CND W(ABS) OR W(ABS & POWER STEERING) |
1 | ||
| 88716-16810 |
EL42..CND W(ABS) OR W(ABS & POWER STEERING) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-16751 |
EL42..CND DEALER OPTION & W(ABS) |
1 | ||
| 88716-16680 |
EL42..CND DEALER OPTION |
1 | ||
| 88716-16681 |
EL42 DEALER OPTION |
1 | ||
| 88716-16750 |
EL42..CND W(ABS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16190 |
EL42..CND |
1 | ||
| 88717-16110 |
EL42 |
1 | ||
| 88717-16181 |
EL42..CND |
1 | ||
| 88717-16210 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717-16211 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16190 |
EL42..CND |
1 | ||
| 88717-16110 |
EL42 |
1 | ||
| 88717-16181 |
EL42..CND |
1 | ||
| 88717-16210 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717-16211 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-16180 |
EL42..4DS..CND |
1 | ||
| 88717-16180 |
EL42 |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88605-1G660 | ||||
| 88688-16580 | ||||
| 88688-16600 | ||||
| 88688-16651 | ||||
| 88688-16660 | ||||
| 88688-16690 | ||||
| 88688-16770 | ||||
| 88688-1G070 | ||||
| 88688-1G090 | ||||
| 88688-1G190 | ||||
| 88688-33160 | ||||
| 88718-12280 | ||||
| 88718-12790 | ||||
| 88718-16380 | ||||
| 88718-16590 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90119-08123 | ||||
| 90179-08123 | ||||
| 90467-11072 | ||||
| 91651-60835 | ||||
| 93385-16045 | ||||
| 93385-18016 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||
ILLUST NO. 2 OF 2(9208-9212)CND ; (9208- )USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL42..CND 250G |
3 | ||
| 90986-02008 |
EL42..4DS..CND 200G |
3 | ||
| 90986-02004 |
EL42..4DS..CND 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EL42..4DS..CND |
1 | ||
| 88645-10030 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88645-10030 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88645-20050 |
EL42..4DS..CND |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-16060 |
EL42..4DS..CND |
1 | ||
| 88703-16060 |
EL42 |
1 | ||
| 88703-16061 |
EL42..4DS..CND |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-16021 |
EL42..CND |
1 | ||
| 88704-16020 |
EL42 |
1 | ||
| 88704-16022 |
EL42..CND |
1 | ||
| 88704-16240 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88704-16241 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-16260 |
EL42..4DS..5F..CND |
1 | ||
| 88706-16260 |
EL42..MTM |
1 | ||
| 88706-16261 |
EL42..4DS..5F..CND |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16170 |
EL42..4DS..CND |
1 | ||
| 88711-16130 |
EL42 |
1 | ||
| 88711-16171 |
EL42..4DS..CND |
1 | ||
| 88711-16170 |
EL42 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-16030 |
EL42 |
1 | ||
| 88715-16030 |
EL42 |
1 | ||
| 88715-16030 |
EL42..4DS..CND |
1 | ||
| 88715-16031 |
EL42..4DS..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16531 |
EL42..4DS..CND |
1 | ||
| 88716-16530 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716-16532 |
EL42..4DS..CND |
1 | ||
| 88716-16531 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16542 |
EL42..4DS..CND |
1 | ||
| 88716-16541 |
EL42..4DS..CND |
1 | ||
| 88716-16660 |
EL42..CND |
1 | ||
| 88716-16541 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16640 |
EL42..CND |
1 | ||
| 88716-16690 |
EL42..CND |
1 | ||
| 88716-16691 |
EL42 |
1 | ||
| 88716-16811 |
EL42..CND W(ABS) OR W(ABS & POWER STEERING) |
1 | ||
| 88716-16810 |
EL42..CND W(ABS) OR W(ABS & POWER STEERING) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-16751 |
EL42..CND DEALER OPTION & W(ABS) |
1 | ||
| 88716-16680 |
EL42..CND DEALER OPTION |
1 | ||
| 88716-16681 |
EL42 DEALER OPTION |
1 | ||
| 88716-16750 |
EL42..CND W(ABS) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-16751 |
EL42..CND DEALER OPTION & W(ABS) |
1 | ||
| 88716-16680 |
EL42..CND DEALER OPTION |
1 | ||
| 88716-16681 |
EL42 DEALER OPTION |
1 | ||
| 88716-16750 |
EL42..CND W(ABS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16190 |
EL42..CND |
1 | ||
| 88717-16110 |
EL42 |
1 | ||
| 88717-16181 |
EL42..CND |
1 | ||
| 88717-16210 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717-16211 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16190 |
EL42..CND |
1 | ||
| 88717-16110 |
EL42 |
1 | ||
| 88717-16181 |
EL42..CND |
1 | ||
| 88717-16210 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717-16211 |
EL42..CND W(ABS & POWER STEERING) OR W(ABS) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-16180 |
EL42..4DS..CND |
1 | ||
| 88717-16180 |
EL42 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-40030 | ||||
| 88605-1G660 | ||||
| 88688-16580 | ||||
| 88688-16600 | ||||
| 88688-16651 | ||||
| 88688-16660 | ||||
| 88688-16770 | ||||
| 88688-1G070 | ||||
| 88688-1G090 | ||||
| 88688-1G190 | ||||
| 88718-12280 | ||||
| 88718-12790 | ||||
| 88718-16380 | ||||
| 88718-16460 | ||||
| 88718-16590 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90119-06276 | ||||
| 90119-06458 | ||||
| 90119-08123 | ||||
| 90119-08A04 | ||||
| 90179-06292 | ||||
| 90179-08117 | ||||
| 90179-08123 | ||||
| 90467-11072 | ||||
| 91651-60835 | ||||
| 91661-60816 | ||||
| 93385-18016 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||

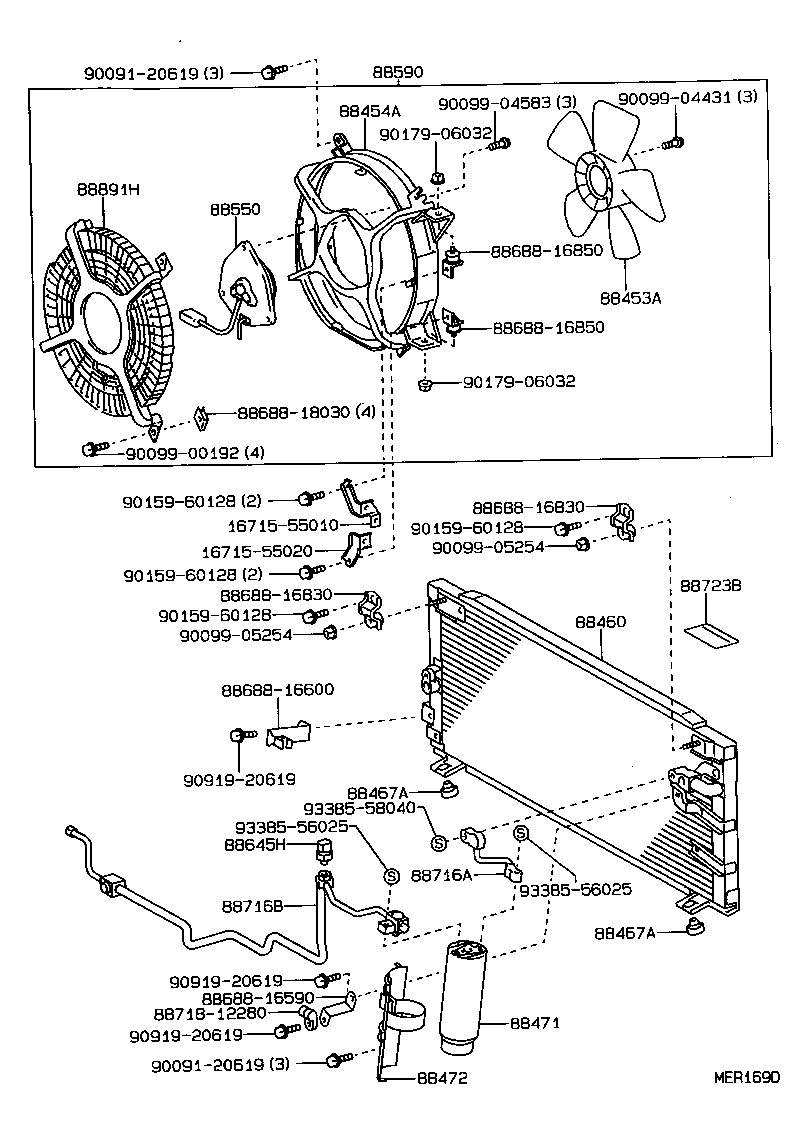

ILLUST NO. 2 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 16361-55040 |
EL42..4DS..5F..CND |
1 | ||
| 16361-55040 |
EL42..MTM |
1 | ||
| 16361-55040 |
EL42..4DS..5F..CND |
1 | ||
| 16361-55040 |
EL42..MTM |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 16711-55110 |
EL42..4DS..5F..CND |
1 | ||
| 16711-55110 |
EL42..MTM |
1 | ||
| 16711-55110 |
EL42..MTM |
1 | ||
| 16711-55110 |
EL42..4DS..5F..CND |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16310 |
EL42..4DS..CND |
1 | ||
| 88460-16311 |
EL42..4DS..CND |
1 | ||
| 88460-16230 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88460-16310 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..CND;EL42..MTM..USA |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..4DS..CND |
2 | ||
| 88467-10020 |
EL42..CND |
2 | ||
| 88467-10020 |
EL42..CND;EL42..MTM..USA |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
EL42..4DS..CND |
1 | ||
| 88471-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88471-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88471-16040 |
EL42..4DS..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16120 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88472-16120 |
EL42..4DS..CND |
1 | ||
| 88472-16110 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88472-16120 |
EL42..4DS..CND |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-55020 |
EL42..MTM |
1 | ||
| 16363-55020 |
EL42..4DS..5F..CND |
1 | ||
| 16363-55020 |
EL42..4DS..5F..CND |
1 | ||
| 16363-55020 |
EL42..MTM |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16060 |
EL42..MTM |
1 | ||
| 16370-55030 |
EL42..MTM..CND |
1 | ||
| 16370-55030 |
EL42..4DS..5F..CND |
1 | ||
| 16370-55030 |
EL42..4DS..5F..CND |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16020 |
EL42..4DS..CND |
1 | ||
| 88723-16021 |
EL42..CND ENGLISH |
1 | ||
| 88723-20020 |
EL42 |
1 | ||
| 88723-16021 |
EL42..4DS..CND CHILE SPEC |
1 | ||
| 88723-20020 |
EL42..CND |
1 | ||
| 88723-16020 |
EL42 |
1 | ||
| 88723-16040 |
EL42..CND FRENCH |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88891-16040 |
EL42..CND;EL42..MTM..USA |
1 | ||
| 88891-16040 |
EL42..4DS..CND |
1 | ||
| 88891-16040 |
EL42..4DS..CND |
1 | ||
| Common parts | ||||
| 16715-55020 | ||||
| 88688-16830 | ||||
| 88688-16850 | ||||
| 88688-18030 | ||||
| 88688-1G030 | ||||
| 90091-20619 | ||||
| 90099-00192 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04431 | ||||
| 90099-04583 | ||||
| 90099-05254 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
