EL42L-AEMDEA (1990)

Toyota Tercel

Production Sep 1990 - Aug 1993
Engine 3EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

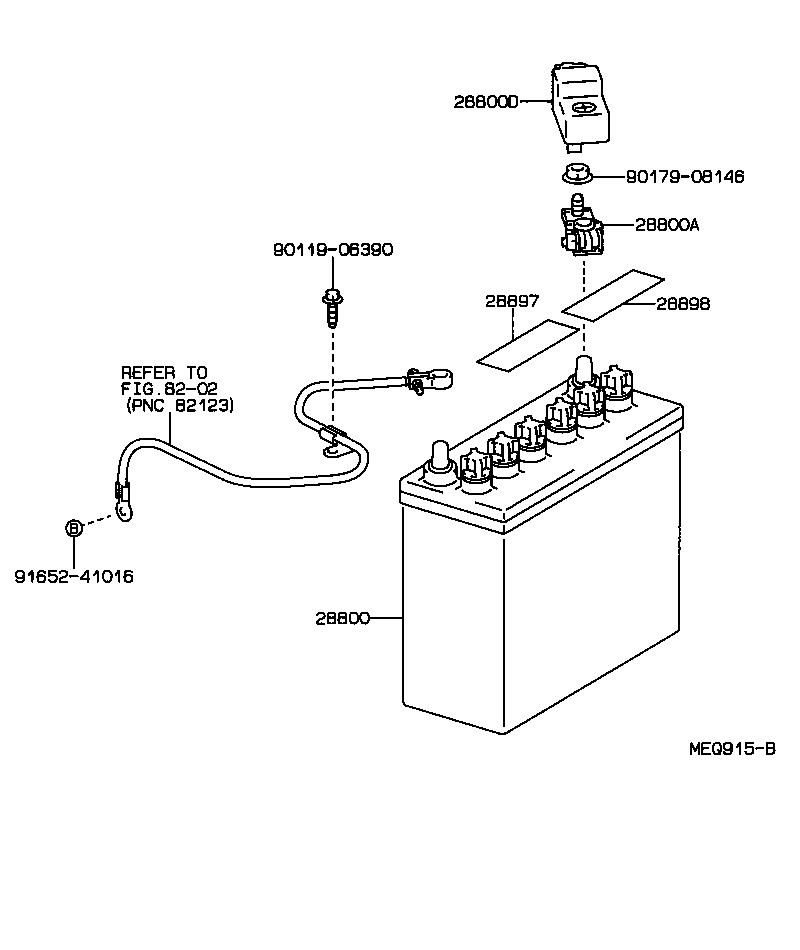

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28897 28898 8202 9011906390 9017908146 9165241016
Part # Description Qty Price
28800 - BATTERY
28800-33101

3EE..EL42..USA

32C24R

 1
28800-15010

3EE..EL42..USA

55D23R

 1
28800-14030

3EE..EL42..USA

50D20R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

3EE..EL42

 1
28897 - PLATE, BATTERY CAUTION
28897-26010

3EE..EL42..USA

 1
28898 - PLATE, BATTERY
28898-26010

3EE..EL42..USA

 1
Common parts
90119-06390
90179-08146
91652-41016
Linked diagrams
8202
