EL42L-AEMDEA (1990)

Toyota Tercel

Production Sep 1990 - Aug 1993
Engine 3EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

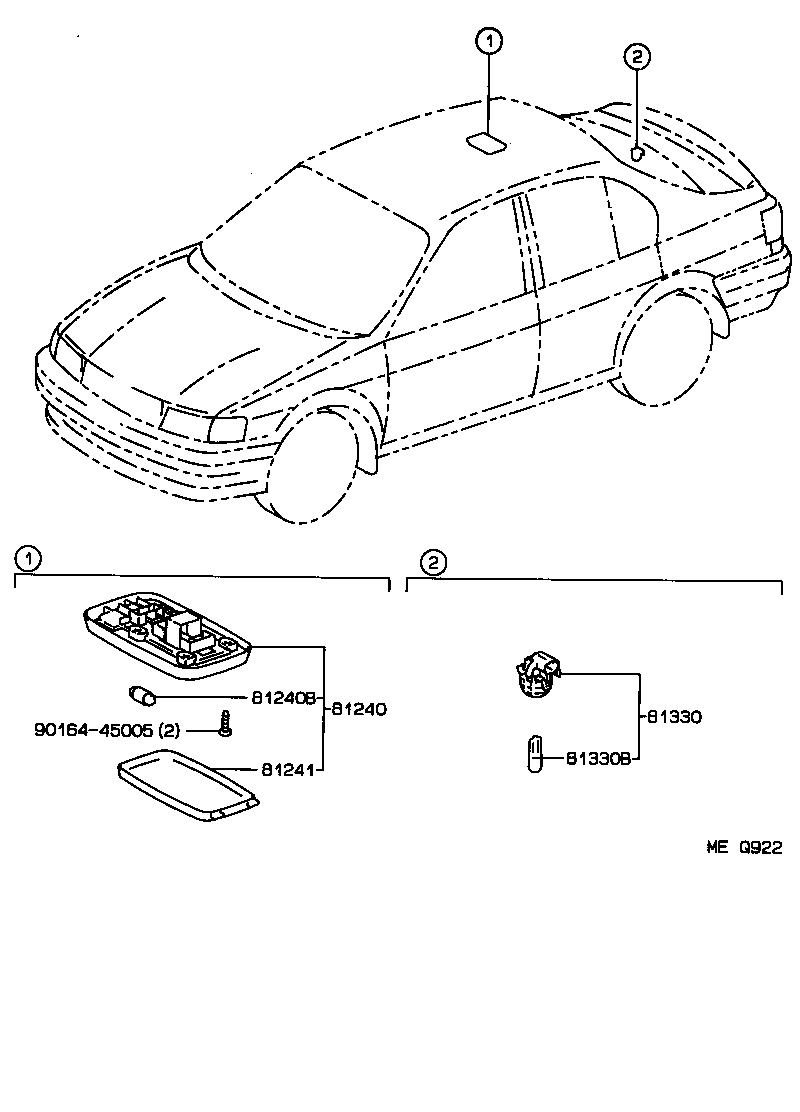

Click highlighted areas on diagram

diagram 81240 81240B 81241 81330 81330B 9016445005
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1203024

EL42..DLX,LE

GRAISH BLUE,TRIM8#

 1
81240-1203003

EL42..DLX,LE

LIGHT GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

EL42..DLX,LE

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

EL42..DLX,LE

 1
Common parts
90164-45005
