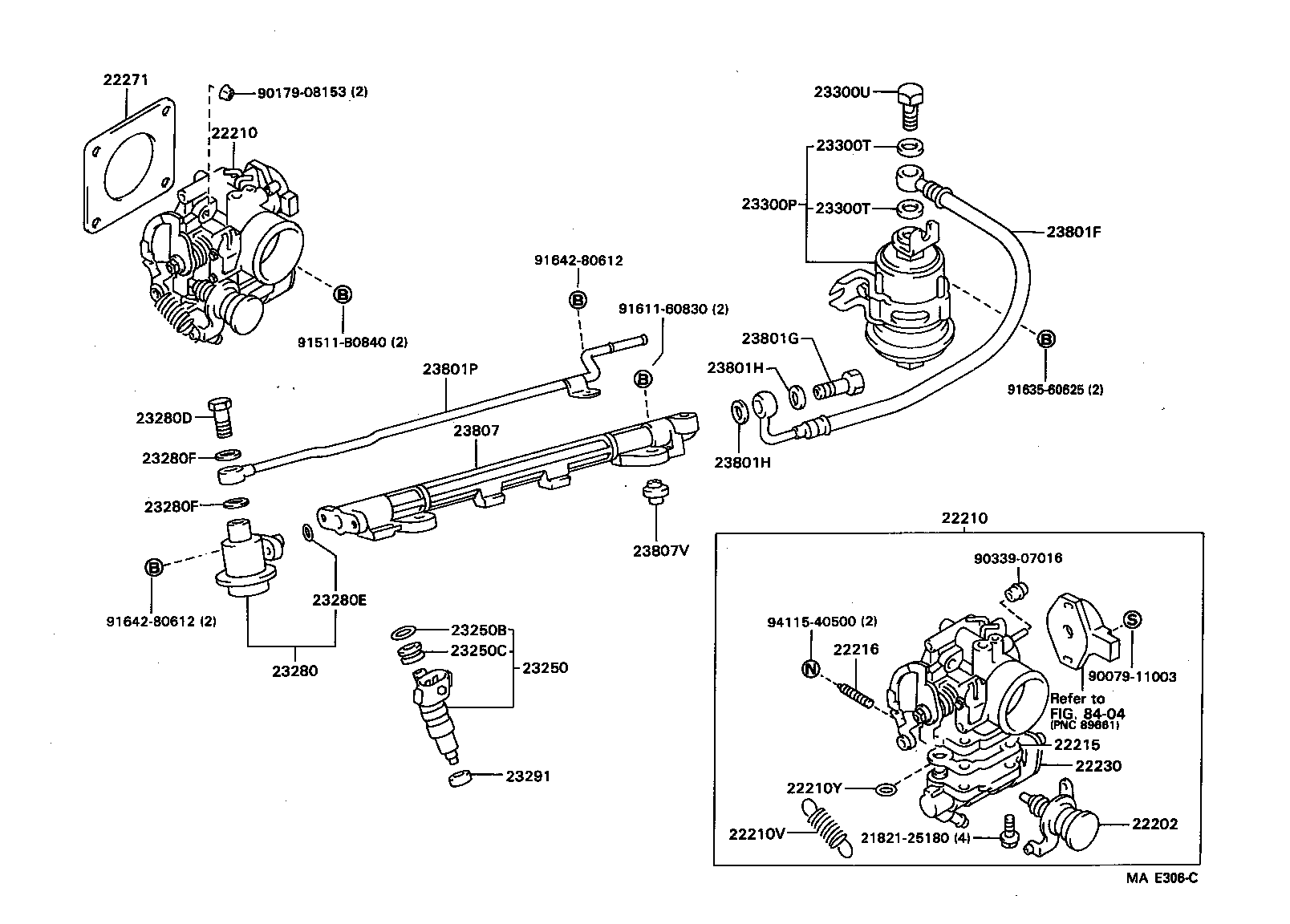

Toyota Tercel EL42 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22202 - DASH POT SUB-ASSY
22202-11022	3EE..EL42	09/1990 - 09/1994	1
22202-11021	3EE..EL42..MTM..USA CALIFORNIA SPEC	09/1990 - 08/1992	1
22210 - BODY ASSY, THROTTLE
22210-11160	3EE..EL42..MTM..USA CALIFORNIA SPEC	09/1990 - 12/1990	1
22210-11180	3EE..EL42..MTM	09/1990 - 09/1994	1
22210 - BODY ASSY, THROTTLE
22210-11160	3EE..EL42..MTM..USA CALIFORNIA SPEC	09/1990 - 12/1990	1
22210-11180	3EE..EL42..MTM	09/1990 - 09/1994	1
22210V - SPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN)
90507-12021	3EE..EL42	09/1990 - 09/1994	1
22210Y - RING, O(FOR AIR TUBE)
96711-19009	3EE..EL42	09/1990 - 09/1994	1
22215 - GASKET, THROTTLE BODY COVER
22215-11110	3EE..EL42	09/1990 - 09/1994	1
22216 - SCREW, DASH POT ADJUSTING
22216-74010	3EE..EL42..MTM..USA CALIFORNIA SPEC	09/1990 - 08/1992	2
22216-74311	3EE..EL42	09/1990 - 07/1993	1
22230 - VALVE ASSY, AUXILIARY AIR
22230-11030	3EE..EL42..MTM	09/1990 - 09/1994	1
22271 - GASKET, THROTTLE BODY
22271-11011	3EE..EL42	09/1990 - 09/1994	1
23250 - INJECTOR ASSY, FUEL
23203-11010	3EE..EL42 NO.2,4 CYLINDER	09/1990 - 09/1994	2
23209-11090	3EE..EL42 NO.1,3 CYLINDER	09/1990 - 09/1994	2
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3EE..EL42	09/1990 - 09/1994	2
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	3EE..EL42	09/1990 - 09/1994	2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11050	3EE..EL42	09/1990 - 09/1994	1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-08010	3EE..EL42	09/1990 - 05/1993	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001	3EE..EL42	09/1990 - 09/1994	1
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-08005	3EE..EL42	09/1990 - 08/1992	2
90430-08012	3EE..EL42	08/1992 - 05/1993	2
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-08005	3EE..EL42	09/1990 - 08/1992	2
90430-08012	3EE..EL42	08/1992 - 05/1993	2
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	3EE..EL42	09/1990 - 09/1994	4
23300P - FILTER, FUEL(FOR EFI)
23300-19265	3EE..EL42	09/1990 - 09/1994	1
23300T - GASKET(FOR FUEL FILTER)
90430-12005	3EE..EL42	09/1990 - 12/1992	2
23300T - GASKET(FOR FUEL FILTER)
90430-12005	3EE..EL42	09/1990 - 12/1992	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	3EE..EL42	09/1990 - 09/1994	1
23801F - HOSE, FUEL, NO.1
23271-11060	3EE..EL42	09/1990 - 09/1994	1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097	3EE..EL42	09/1990 - 07/1993	1
23801H - GASKET(FOR FUEL PIPE)
90430-12005	3EE..EL42	09/1990 - 08/1992	2
23801H - GASKET(FOR FUEL PIPE)
90430-12005	3EE..EL42	09/1990 - 08/1992	2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11060	3EE..EL42	09/1990 - 09/1994	1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11050	3EE..EL42	09/1990 - 09/1994	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08036	3EE..EL42	09/1990 - 09/1994	2
Common parts
21821-25180
90079-11003
90179-08153
90339-07016
91511-B0840
91611-60830
91635-60625
91642-80612
94115-40500
Linked diagrams
8404

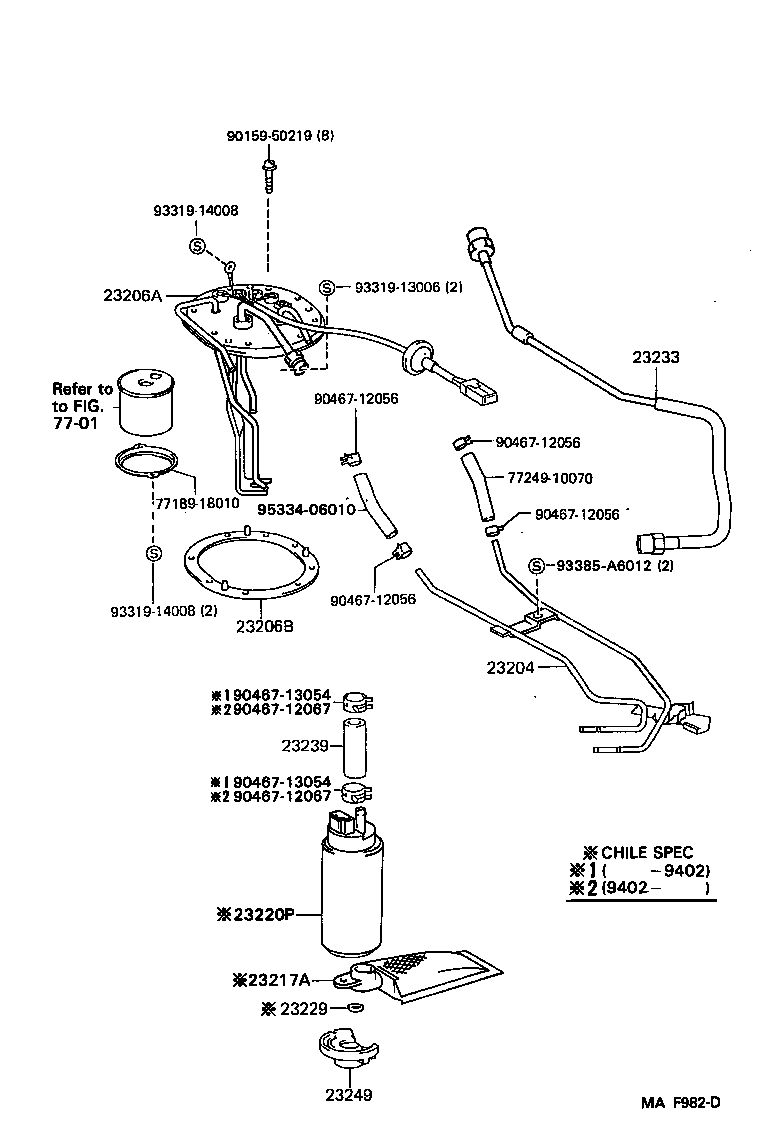

Part #	Description	Period	Qty
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-11140	3EE..EL42	09/1990 - 09/1994	1
23206A - BRACKET, FUEL PUMP
23206-11140	3EE..EL42..DLX,STD;3EE..EL42..LE..USA	09/1990 - 09/1994	1
23206B - GASKET, FUEL PUMP BRACKET
77169-16030	3EE..EL42	09/1990 - 09/1994	1
23217A - FILTER, FUEL PUMP
23217-11020	3EE..EL42	09/1990 - 08/1992	1
23220P - PUMP ASSY, FUEL
23221-46010	3EE..EL42	09/1990 - 09/1994	1
23233 - HOSE, FUEL PUMP
23091-11050	3EE..EL42..DLX,STD;3EE..EL42..LE..USA	08/1992 - 08/1993	1
23091-11050	3EE..EL42	09/1990 - 08/1992	1
23239 - HOSE
23239-63010	3EE..EL42	09/1990 - 02/1994	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610	3EE..EL42	09/1990 - 09/1994	1
Common parts
77189-18010
77249-10070
90159-50219
90467-12056
90467-12067
90467-13054
93319-13006
93319-14008
93385-A6012
95334-06010
Linked diagrams
7701

EL42L-AEMDEA (1990)

ILLUST NO. 1 OF 2(9009- )

ILLUST NO. 2 OF 2(9009- )
