EL42L-AEHREK (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994

Engine 3EE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

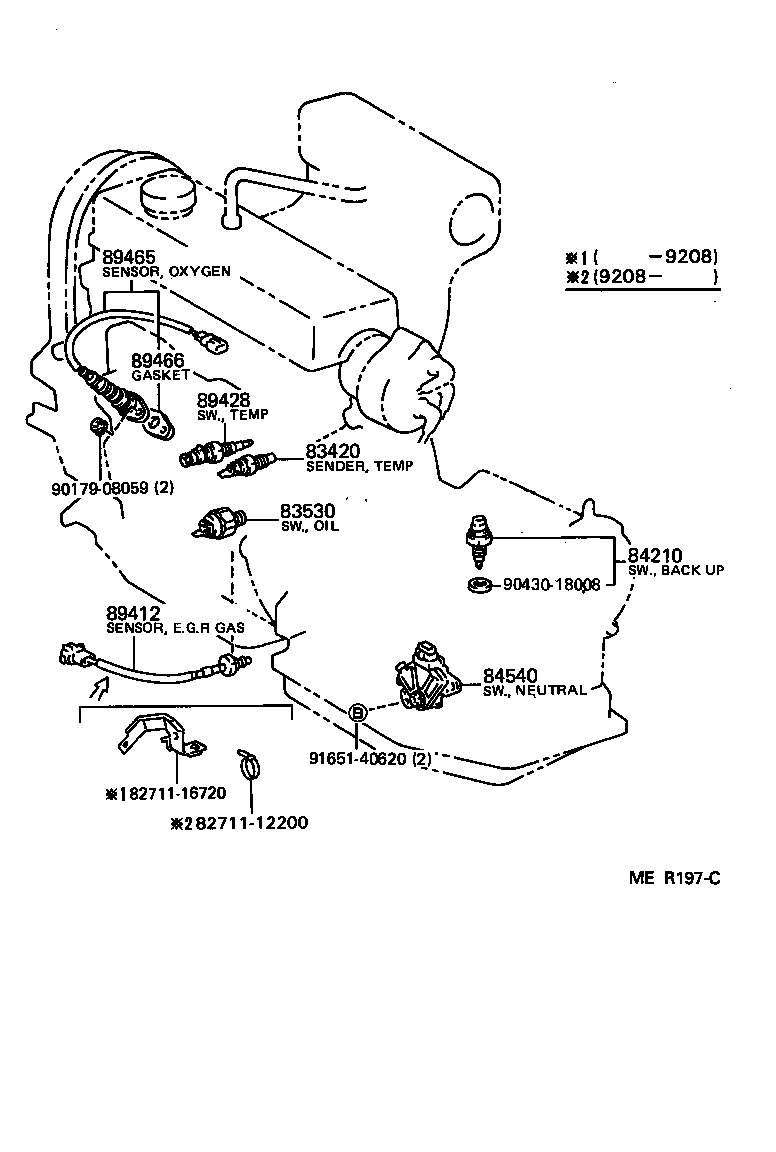

ILLUST NO. 1 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16020	EL42	09/1990 - 09/1994	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30080	EL42	09/1990 - 08/1992	1
83530-14060	EL42	08/1992 - 09/1994	1
84540 - SWITCH ASSY, NEUTRAL START
84540-16040	EL42..3FC	08/1992 - 09/1994	1
84540-16030	EL42..3FC	09/1990 - 08/1992	1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-20060	EL42	09/1990 - 08/1992	1
89428-12160	EL42	08/1992 - 09/1994	1
89465 - SENSOR, OXYGEN
89465-19405	EL42	09/1990 - 09/1994	1
89466 - GASKET, OXYGEN SENSOR
89466-20020	EL42	09/1990 - 09/1994	1
Common parts
82711-12200
82711-16720
90179-08059
90430-18008
91651-40620

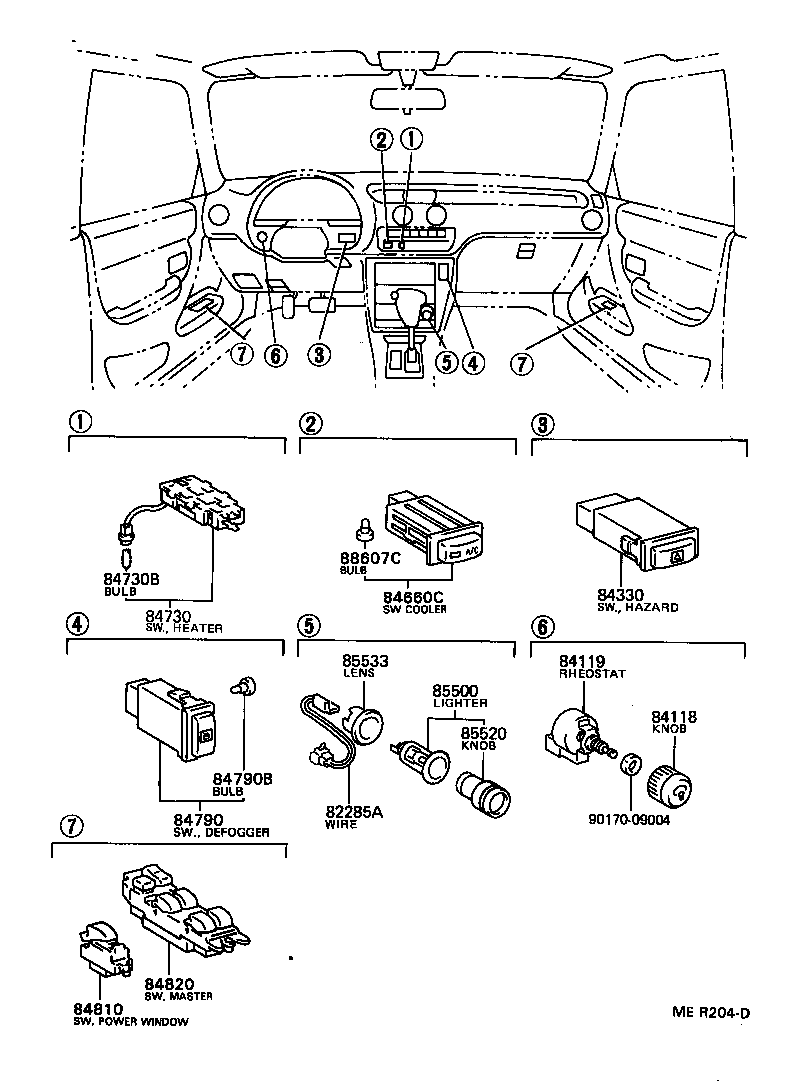

ILLUST NO. 2 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82285A - WIRE, ILLUMINATION
82285-16020	EL42	09/1990 - 09/1994	1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-2001114	EL42..DLX,LE GRAISH BLUE,TRIM8#	09/1990 - 08/1992	1
84118-2001122	EL42..DLX,LE BLACK,TRIM2#,8#	08/1992 - 09/1994	1
84118-2001101	EL42 BLACK,TRIM2#	09/1990 - 08/1992	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-20140	EL42	09/1990 - 09/1994	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20260	EL42	09/1990 - 09/1994	1
84660C - SWITCH, COOLER
84660-16100	EL42	09/1990 - 09/1994	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-16160	EL42	10/1990 - 09/1994	1
84732-16120	EL42	09/1990 - 10/1990	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	EL42 14V 1.4W	09/1990 - 09/1994	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-16090	EL42..CND	09/1990 - 09/1994	1
84790-16100	EL42..4DS..CND REAR WINDOW DEFOGGER(100W)	08/1992 - 09/1994	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10200	EL42..CND 14V 0.56W	09/1990 - 09/1994	1
84999-10320	EL42..LE..CND;EL42..4DS..DLX;EL42..2DS..USA 14V 0.84W	08/1992 - 09/1994	1
85500 - LIGHTER ASSY, CIGARETTE
85500-50020	EL42	09/1990 - 09/1994	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-30200	EL42	09/1991 - 09/1994	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-16020	EL42	09/1990 - 09/1994	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-16010	EL42 14V 0.065A	09/1990 - 09/1994	1
Common parts
90170-09004

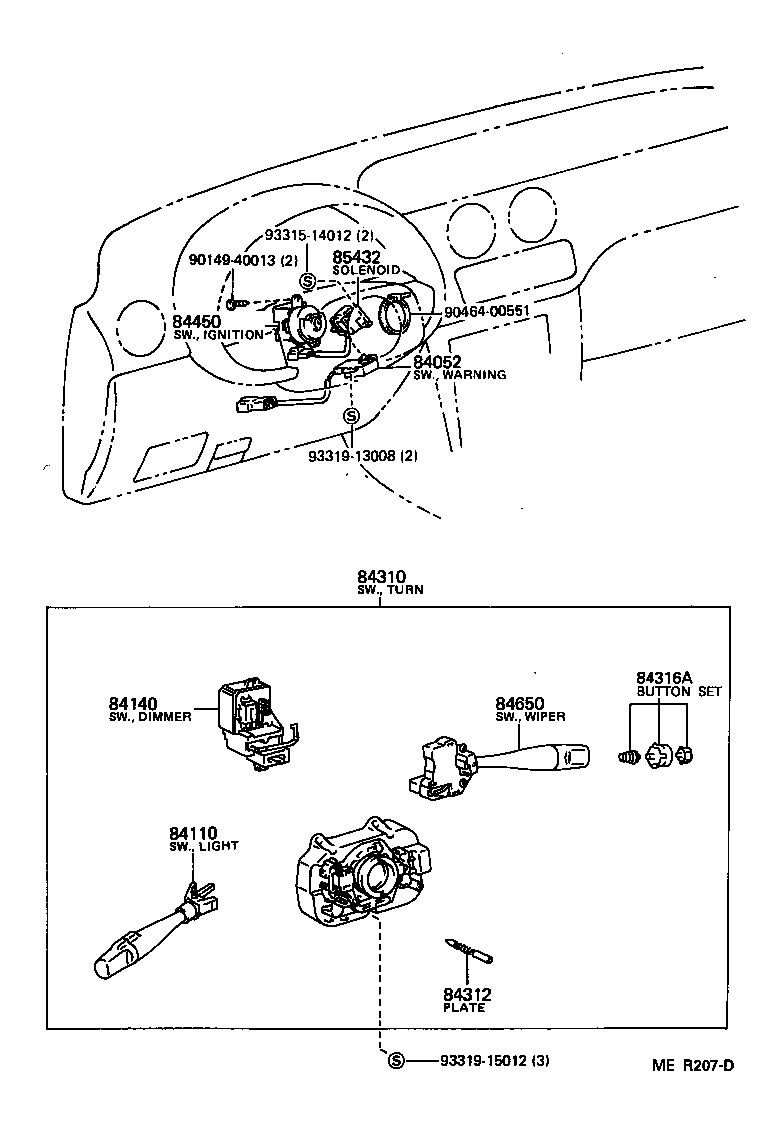

ILLUST NO. 4 OF 7(9009-9208) ; (9208- )CND

Click highlighted areas on diagram

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-16020	EL42	09/1990 - 09/1994	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80054	EL42..CND	08/1992 - 09/1994	1
84112-80054	EL42	09/1990 - 08/1992	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-10170	EL42	09/1990 - 08/1992	1
84140-10170	EL42..CND	08/1992 - 09/1994	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10820	EL42..(DLX,STD)..CND	08/1992 - 09/1994	1
84310-10820	EL42..DLX,STD	09/1990 - 08/1992	1
84310-16470	EL42..DLX..CND W(INTERMITTENT WIPER)	08/1993 - 09/1994	1
84312 - PLATE, HORN CONTACT
84312-12050	EL42..CND	08/1992 - 09/1994	1
84312-12050	EL42	09/1990 - 08/1992	1
84316A - BUTTON SET, WASHER
84316-16020	EL42..DLX,STD	09/1990 - 08/1992	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-10110	EL42	09/1990 - 09/1994	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-10590	EL42..DLX,STD	09/1990 - 08/1992	1
84652-10590	EL42..(DLX,STD)..CND	08/1992 - 09/1994	1
84652-16360	EL42..DLX..CND W(INTERMITTENT WIPER)	08/1993 - 09/1994	1
85432 - SOLENOID, KEY INTER LOCK
85432-16030	EL42..3FC	09/1990 - 09/1994	1
Common parts
90149-40013
90464-00551
93315-14012
93319-13008
93319-15012

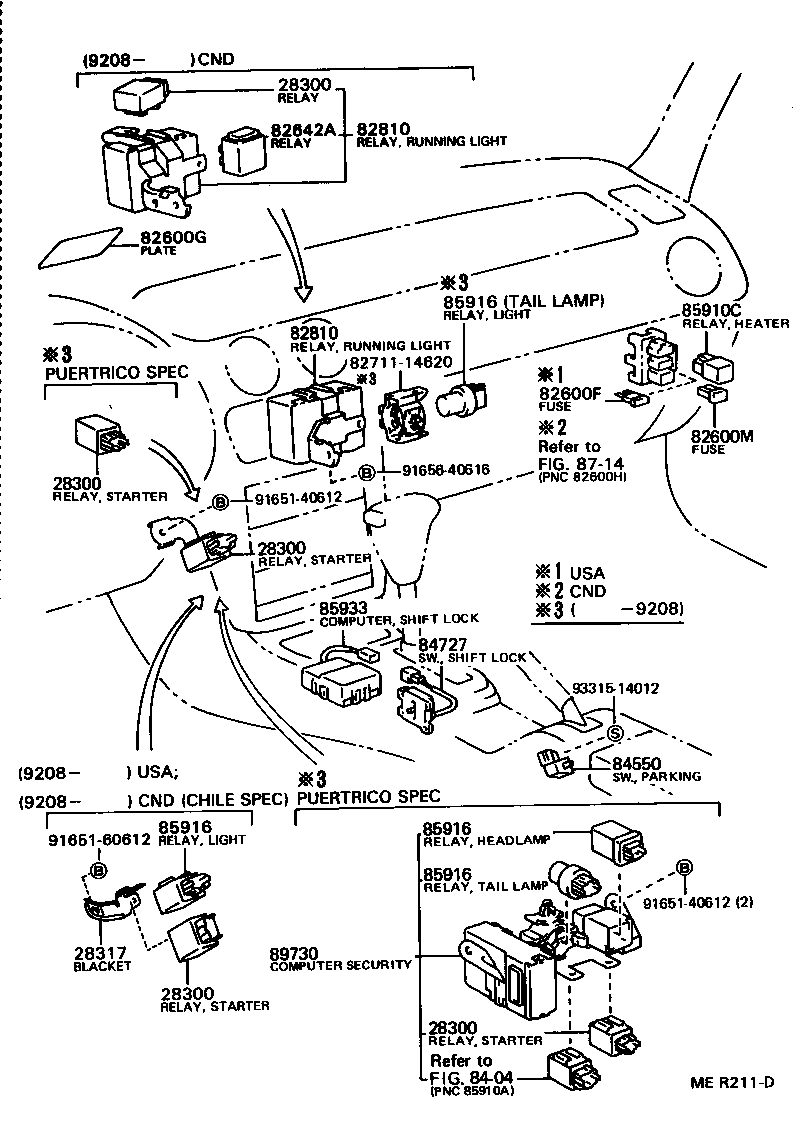

ILLUST NO. 5 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10010	3EE..EL42	08/1992 - 09/1994	1
28300 - RELAY ASSY, STARTER
28300-10010	3EE..EL42	08/1992 - 09/1994	1
28300 - RELAY ASSY, STARTER
28300-10010	3EE..EL42	08/1992 - 09/1994	1
28300 - RELAY ASSY, STARTER
28300-10010	3EE..EL42	08/1992 - 09/1994	1
28300 - RELAY ASSY, STARTER
28300-10010	3EE..EL42	08/1992 - 09/1994	1
28317 - BRACKET, STARTER RELAY
28317-11010	3EE..EL42..4DS..CND	08/1992 - 01/1994	1
82600F - FUSE, FUSE BLOCK
90982-09003	EL42 15A	09/1990 - 09/1994	1
90982-07011	EL42 30A,GREEN	09/1990 - 08/1992	2
90982-09002	EL42..CND 10A	09/1990 - 09/1994	4
90982-09005	EL42 7.5A	09/1990 - 09/1994	1
90982-09002	EL42 10A	09/1990 - 09/1994	2
90982-07011	EL42..DLX,LE;EL42..STD..CND 30A,GREEN	04/1991 - 08/1992	1
90982-09005	EL42..CND 7.5A	08/1992 - 09/1994	2
90982-09003	EL42 15A	09/1990 - 09/1994	4
90982-09004	EL42 20A,YELLOW	09/1990 - 09/1994	1
90982-09003	EL42 15A	09/1990 - 09/1994	3
82600G - PLATE, CAUTION(FOR FUSE)
82685-16020	EL42..4DS..CND CHILE SPEC	08/1992 - 09/1994	1
82600M - FUSE, MEDIUM CURRENT
90982-10001	EL42 30A,PINK	09/1990 - 09/1994	2
82642A - RELAY, RUNNING LIGHT
28300-10010	EL42..CND	08/1992 - 09/1994	1
82810 - RELAY ASSY, RUNNING LIGHT
82810-16030	EL42..CND	08/1992 - 09/1994	1
82810-16020	EL42..CND	09/1990 - 08/1992	1
82810 - RELAY ASSY, RUNNING LIGHT
82810-16030	EL42..CND	08/1992 - 09/1994	1
82810-16020	EL42..CND	09/1990 - 08/1992	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	EL42	09/1990 - 09/1994	1
84727 - SWITCH, SHIFT LOCK CONTROL
84727-16030	EL42..3FC	09/1990 - 09/1994	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	EL42	09/1990 - 09/1994	1
85916 - RELAY, LIGHT CONTROL
28300-10010	EL42..4DS..CND CHILE SPEC,TAIL LAMP	08/1992 - 08/1993	1
90987-02004	EL42..CND TAIL LAMP	09/1990 - 08/1992	1
90987-02006	EL42 HEADLAMP	08/1992 - 09/1994	1
90987-02006	EL42..CND HEADLAMP	09/1990 - 08/1992	1
85916 - RELAY, LIGHT CONTROL
28300-10010	EL42..4DS..CND CHILE SPEC,TAIL LAMP	08/1992 - 08/1993	1
90987-02004	EL42..CND TAIL LAMP	09/1990 - 08/1992	1
90987-02006	EL42 HEADLAMP	08/1992 - 09/1994	1
90987-02006	EL42..CND HEADLAMP	09/1990 - 08/1992	1
85916 - RELAY, LIGHT CONTROL
28300-10010	EL42..4DS..CND CHILE SPEC,TAIL LAMP	08/1992 - 08/1993	1
90987-02004	EL42..CND TAIL LAMP	09/1990 - 08/1992	1
90987-02006	EL42 HEADLAMP	08/1992 - 09/1994	1
90987-02006	EL42..CND HEADLAMP	09/1990 - 08/1992	1
85916 - RELAY, LIGHT CONTROL
28300-10010	EL42..4DS..CND CHILE SPEC,TAIL LAMP	08/1992 - 08/1993	1
90987-02004	EL42..CND TAIL LAMP	09/1990 - 08/1992	1
90987-02006	EL42 HEADLAMP	08/1992 - 09/1994	1
90987-02006	EL42..CND HEADLAMP	09/1990 - 08/1992	1
85933 - COMPUTER, SHIFT LOCK CONTROL
85933-16030	EL42..3FC	09/1990 - 08/1992	1
85933-16040	EL42..3FC	08/1992 - 09/1994	1
Common parts
82711-14620
91651-40612
91651-60612
91656-40616
93315-14012
Linked diagrams
8404
8714

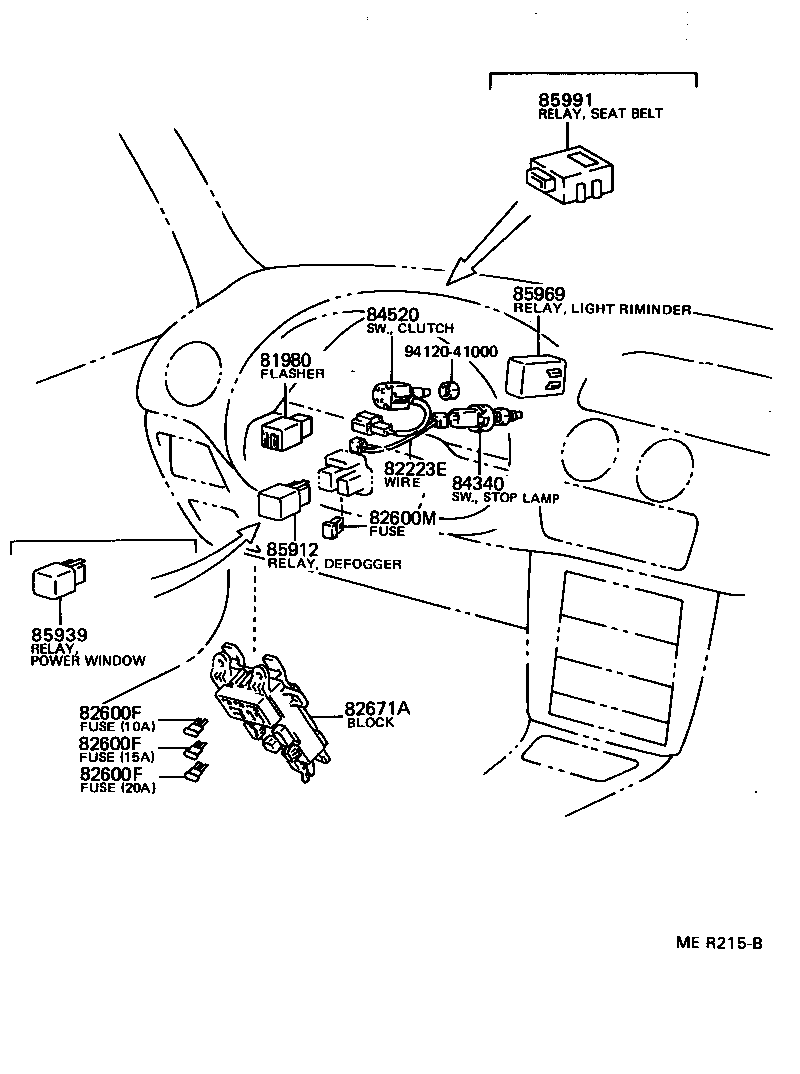

ILLUST NO. 6 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-12070	EL42	09/1990 - 09/1994	1
82223E - WIRE, CLUTCH START SWITCH
82223-12530	EL42	08/1992 - 09/1994	1
82223-16020	EL42	09/1990 - 08/1992	1
82600F - FUSE, FUSE BLOCK
90982-09003	EL42 15A	09/1990 - 09/1994	1
90982-07011	EL42 30A,GREEN	09/1990 - 08/1992	2
90982-09002	EL42..CND 10A	09/1990 - 09/1994	4
90982-09005	EL42 7.5A	09/1990 - 09/1994	1
90982-09002	EL42 10A	09/1990 - 09/1994	2
90982-07011	EL42..DLX,LE;EL42..STD..CND 30A,GREEN	04/1991 - 08/1992	1
90982-09005	EL42..CND 7.5A	08/1992 - 09/1994	2
90982-09003	EL42 15A	09/1990 - 09/1994	4
90982-09004	EL42 20A,YELLOW	09/1990 - 09/1994	1
90982-09003	EL42 15A	09/1990 - 09/1994	3
82600F - FUSE, FUSE BLOCK
90982-09003	EL42 15A	09/1990 - 09/1994	1
90982-07011	EL42 30A,GREEN	09/1990 - 08/1992	2
90982-09002	EL42..CND 10A	09/1990 - 09/1994	4
90982-09005	EL42 7.5A	09/1990 - 09/1994	1
90982-09002	EL42 10A	09/1990 - 09/1994	2
90982-07011	EL42..DLX,LE;EL42..STD..CND 30A,GREEN	04/1991 - 08/1992	1
90982-09005	EL42..CND 7.5A	08/1992 - 09/1994	2
90982-09003	EL42 15A	09/1990 - 09/1994	4
90982-09004	EL42 20A,YELLOW	09/1990 - 09/1994	1
90982-09003	EL42 15A	09/1990 - 09/1994	3
82600F - FUSE, FUSE BLOCK
90982-09003	EL42 15A	09/1990 - 09/1994	1
90982-07011	EL42 30A,GREEN	09/1990 - 08/1992	2
90982-09002	EL42..CND 10A	09/1990 - 09/1994	4
90982-09005	EL42 7.5A	09/1990 - 09/1994	1
90982-09002	EL42 10A	09/1990 - 09/1994	2
90982-07011	EL42..DLX,LE;EL42..STD..CND 30A,GREEN	04/1991 - 08/1992	1
90982-09005	EL42..CND 7.5A	08/1992 - 09/1994	2
90982-09003	EL42 15A	09/1990 - 09/1994	4
90982-09004	EL42 20A,YELLOW	09/1990 - 09/1994	1
90982-09003	EL42 15A	09/1990 - 09/1994	3
82600M - FUSE, MEDIUM CURRENT
90982-10001	EL42 30A,PINK	09/1990 - 09/1994	2
82671A - BLOCK, JUNCTION
82671-16061	EL42	09/1990 - 09/1994	1
84340 - SWITCH ASSY, STOP LAMP
84340-32050	EL42	09/1990 - 09/1994	1
85912 - RELAY, DEFOGGER
90987-02004	EL42..CND NIPPONDENSO	09/1990 - 09/1994	1
90987-02002	EL42..CND MARUKO	09/1990 - 09/1994	1
85969 - RELAY, LIGHT REMINDER
85969-17010	EL42	08/1992 - 09/1994	1
85991 - RELAY, SEAT BELT WARNING
85991-16050	EL42	08/1992 - 02/1993	1
85991-16051	EL42	02/1993 - 09/1994	1
Common parts
94120-41000

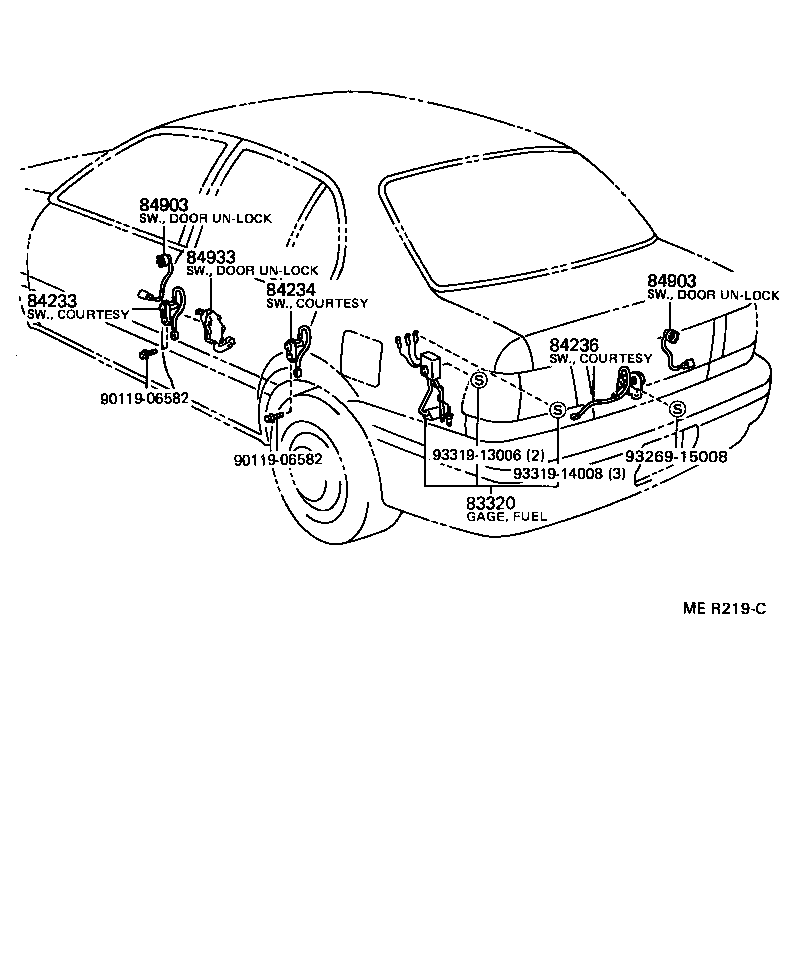

ILLUST NO. 7 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80192	EL42..4DS..DLX..CND CHILE SPEC	08/1992 - 09/1994	1
83320-80191	EL42..DLX,STD;EL42..LE..USA	09/1990 - 09/1994	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-32040	EL42	09/1990 - 09/1994	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-32040	EL42..4DS	09/1990 - 09/1994	2
Common parts
90119-06582
93269-15008
93319-13006
93319-14008

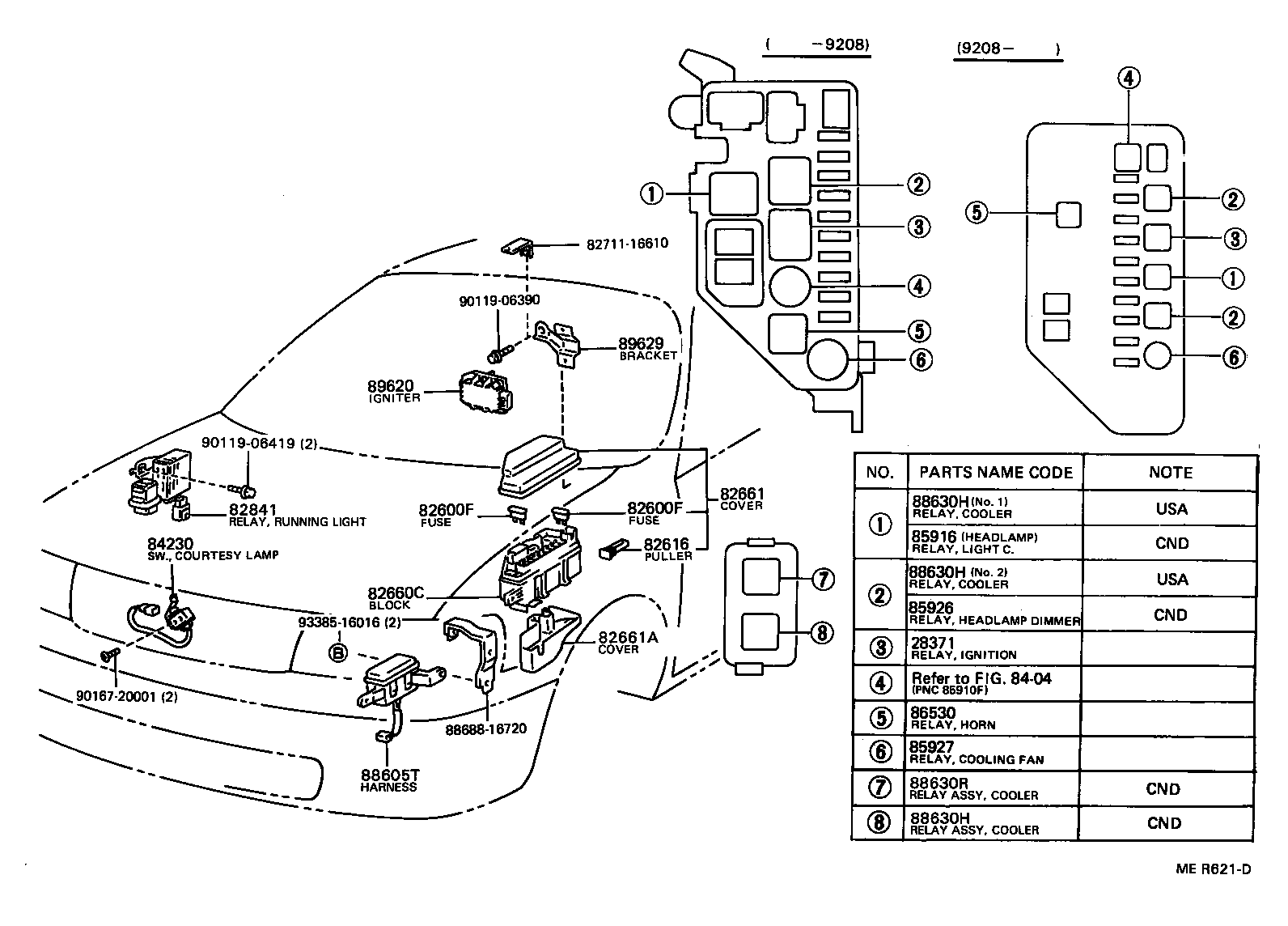

ILLUST NO. 3 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28371 - RELAY, IGNITION, NO.1
90987-04002	3EE..EL42	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09003	EL42 15A	09/1990 - 09/1994	1
90982-07011	EL42 30A,GREEN	09/1990 - 08/1992	2
90982-09002	EL42..CND 10A	09/1990 - 09/1994	4
90982-09005	EL42 7.5A	09/1990 - 09/1994	1
90982-09002	EL42 10A	09/1990 - 09/1994	2
90982-07011	EL42..DLX,LE;EL42..STD..CND 30A,GREEN	04/1991 - 08/1992	1
90982-09005	EL42..CND 7.5A	08/1992 - 09/1994	2
90982-09003	EL42 15A	09/1990 - 09/1994	4
90982-09004	EL42 20A,YELLOW	09/1990 - 09/1994	1
90982-09003	EL42 15A	09/1990 - 09/1994	3
82600F - FUSE, FUSE BLOCK
90982-09003	EL42 15A	09/1990 - 09/1994	1
90982-07011	EL42 30A,GREEN	09/1990 - 08/1992	2
90982-09002	EL42..CND 10A	09/1990 - 09/1994	4
90982-09005	EL42 7.5A	09/1990 - 09/1994	1
90982-09002	EL42 10A	09/1990 - 09/1994	2
90982-07011	EL42..DLX,LE;EL42..STD..CND 30A,GREEN	04/1991 - 08/1992	1
90982-09005	EL42..CND 7.5A	08/1992 - 09/1994	2
90982-09003	EL42 15A	09/1990 - 09/1994	4
90982-09004	EL42 20A,YELLOW	09/1990 - 09/1994	1
90982-09003	EL42 15A	09/1990 - 09/1994	3
82616 - PULLER, FUSE
82616-12010	EL42	09/1990 - 09/1994	1
82660C - BLOCK ASSY, RELAY
82660-10130	EL42	08/1992 - 09/1994	1
82660-10110	EL42	09/1990 - 08/1992	1
82661 - COVER, RELAY BLOCK, NO.1
82662-16070	EL42..CND	09/1990 - 08/1992	1
82662-16130	EL42..4DS..CND	08/1992 - 09/1994	1
82661A - COVER, RELAY BLOCK, NO.2
82663-10030	EL42..CND	02/1993 - 09/1994	1
82663-10020	EL42	09/1990 - 08/1992	1
82663-10030	EL42	08/1992 - 02/1993	1
82841 - RELAY, RUNNING LIGHT VOLTAGE CONTROL
82840-16010	EL42..CND	08/1992 - 09/1994	1
85916 - RELAY, LIGHT CONTROL
28300-10010	EL42..4DS..CND CHILE SPEC,TAIL LAMP	08/1992 - 08/1993	1
90987-02004	EL42..CND TAIL LAMP	09/1990 - 08/1992	1
90987-02006	EL42 HEADLAMP	08/1992 - 09/1994	1
90987-02006	EL42..CND HEADLAMP	09/1990 - 08/1992	1
85926 - RELAY, HEADLAMP DIMMER
85926-30020	EL42..CND	09/1990 - 09/1994	1
85927 - RELAY, COOLING FAN
90987-03001	EL42	09/1990 - 09/1994	1
86530 - RELAY ASSY, HORN
86530-20070	EL42	09/1990 - 09/1994	1
88605T - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-1G500	EL42..CND	09/1990 - 08/1992	1
88605-1G500	EL42..4DS..CND	08/1992 - 12/1992	1
88605-1G500	EL42..4DS..CND	08/1993 - 09/1994	1
88605-1G500	EL42..CND	12/1992 - 08/1993	1
88630H - RELAY ASSY, COOLER
90987-02009	EL42..4DS..CND	08/1992 - 12/1992	1
90987-02009	EL42..CND	09/1990 - 08/1992	1
90987-02009	EL42..CND	12/1992 - 08/1993	1
90987-02009	EL42..4DS..CND	08/1993 - 09/1994	1
88630H - RELAY ASSY, COOLER
90987-02009	EL42..4DS..CND	08/1992 - 12/1992	1
90987-02009	EL42..CND	09/1990 - 08/1992	1
90987-02009	EL42..CND	12/1992 - 08/1993	1
90987-02009	EL42..4DS..CND	08/1993 - 09/1994	1
88630H - RELAY ASSY, COOLER
90987-02009	EL42..4DS..CND	08/1992 - 12/1992	1
90987-02009	EL42..CND	09/1990 - 08/1992	1
90987-02009	EL42..CND	12/1992 - 08/1993	1
90987-02009	EL42..4DS..CND	08/1993 - 09/1994	1
88630R - RELAY ASSY, COOLER, NO.3
90987-04003	EL42..CND	12/1992 - 08/1993	1
90987-04003	EL42..CND	09/1990 - 08/1992	1
90987-04003	EL42..4DS..CND	08/1992 - 12/1992	1
90987-04003	EL42..4DS..CND	08/1993 - 09/1994	1
89620 - IGNITER ASSY
89621-26010	EL42	09/1990 - 09/1994	1
89629 - BRACKET, IGNITER ASSY
89629-16040	EL42	09/1990 - 09/1994	1
Common parts
82711-16610
88688-16720
90119-06390
90119-06419
90167-20001
93385-16016
Linked diagrams
8404

EL42L-AEHREK (1990)

ILLUST NO. 1 OF 7(9009- )

ILLUST NO. 2 OF 7(9009- )

ILLUST NO. 4 OF 7(9009-9208) ; (9208- )CND

ILLUST NO. 5 OF 7(9009- )

ILLUST NO. 6 OF 7(9009- )

ILLUST NO. 7 OF 7(9009- )

ILLUST NO. 3 OF 7(9009- )

Part Price Details
