Toyota Tercel EL42 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
EU
TERCEL
EL42L-AEHREK (1990)
1603 - RADIATOR & WATER OUTLET

EL42L-AEHREK (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994

Engine 3EE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

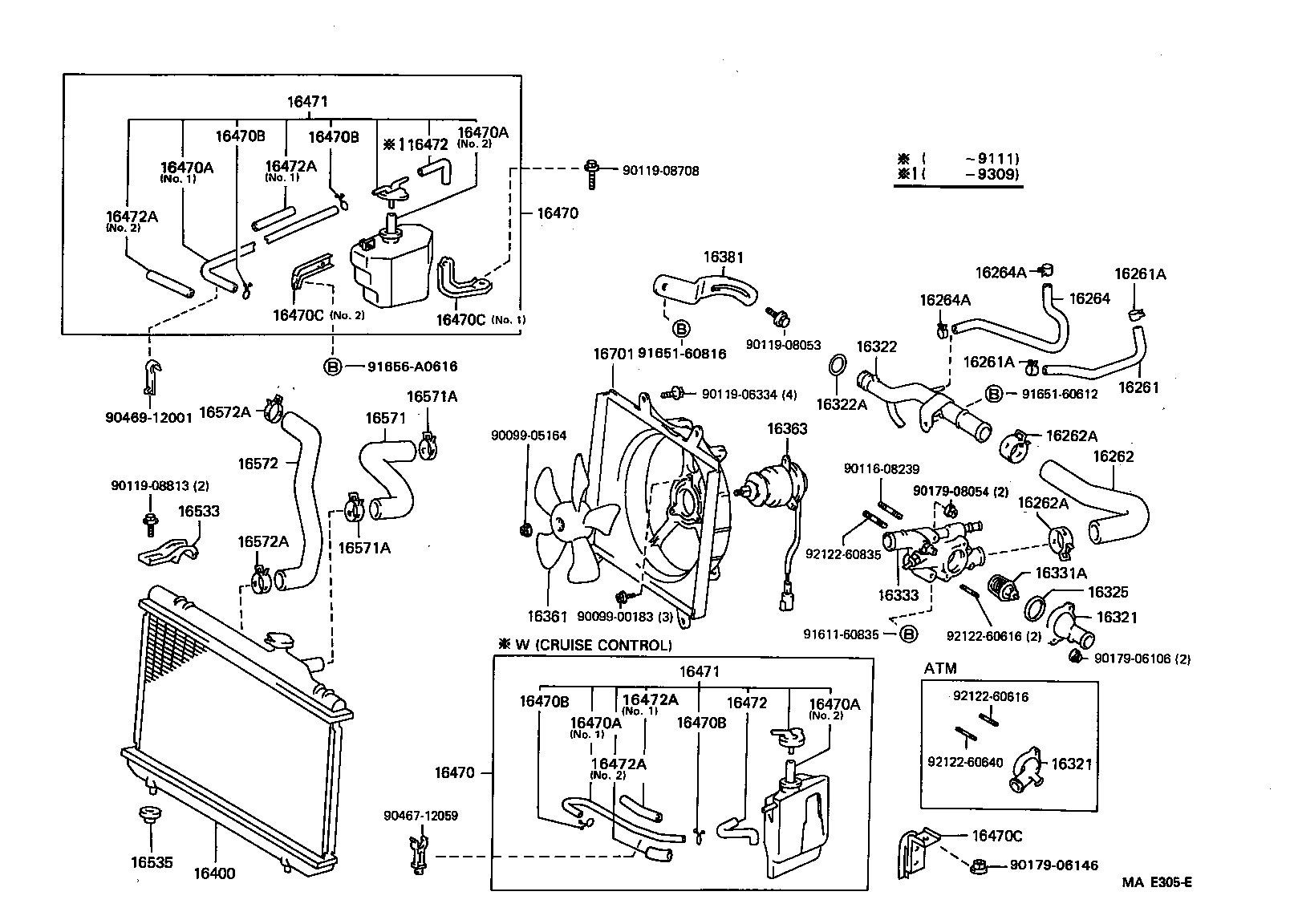

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-11020	3EE..EL42	09/1990 - 09/1994	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-11009	3EE..EL42	09/1990 - 09/1994	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-11009	3EE..EL42	09/1990 - 09/1994	2
16262 - HOSE, WATER INLET
16262-10020	3EE..EL42..3FC	09/1990 - 09/1994	1
16262A - CLIP(FOR WATER INLET HOSE)
90467-34003	3EE..EL42	09/1990 - 09/1994	2
16262A - CLIP(FOR WATER INLET HOSE)
90467-34003	3EE..EL42	09/1990 - 09/1994	2
16264 - HOSE, WATER BY-PASS, NO.2
99555-00200	3EE..EL42 *H,L=200	09/1990 - 09/1994	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009	3EE..EL42	09/1990 - 09/1994	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-11009	3EE..EL42	09/1990 - 09/1994	2
16321 - INLET, WATER
16321-11011	3EE..EL42..3FC	09/1990 - 09/1994	1
16321 - INLET, WATER
16321-11011	3EE..EL42..3FC	09/1990 - 09/1994	1
16322 - PIPE, WATER INLET
16322-11032	3EE..EL42	04/1992 - 09/1994	1
16322-11030	3EE..EL42	09/1990 - 04/1992	1
16322A - RING, O(FOR WATER INLET)
96711-35028	3EE..EL42	09/1990 - 09/1994	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010	3EE..EL42	09/1990 - 01/1993	1
16325-63011	3EE..EL42	01/1993 - 09/1994	1
16331A - THERMOSTAT
90916-03046	3EE..EL42 *WAX 82-95	09/1990 - 09/1994	1
16333 - HOUSING, WATER OUTLET
16333-11160	3EE..EL42	09/1990 - 09/1994	1
16361 - FAN
16361-63020	3EE..EL42..3FC	09/1990 - 09/1994	1
16363 - MOTOR, COOLING FAN
16363-11060	3EE..EL42..3FC	09/1990 - 09/1994	1
16381 - BAR, FAN BELT ADJUSTING
16381-11030	3EE..EL42..3FC,4F;3EE..EL42..5F..CND	08/1992 - 09/1994	1
16381-11030	3EE..EL42	09/1990 - 08/1992	1
16400 - RADIATOR ASSY
16400-11460	3EE..EL42..3FC	09/1990 - 09/1994	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-55020	3EE..EL42 W(ABS)	08/1992 - 09/1994	1
16470-55030	3EE..EL42	09/1990 - 09/1994	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-55020	3EE..EL42 W(ABS)	08/1992 - 09/1994	1
16470-55030	3EE..EL42	09/1990 - 09/1994	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534	3EE..EL42 L=1000,NO.1	09/1990 - 09/1994	1
90445-12078	3EE..EL42 L=600,W(*66),NO.2	08/1992 - 09/1994	1
90445-12078	3EE..EL42 L=600,NO.2	09/1990 - 09/1994	1
16478-55020	3EE..EL42 W(*66),NO.1	08/1992 - 09/1994	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534	3EE..EL42 L=1000,NO.1	09/1990 - 09/1994	1
90445-12078	3EE..EL42 L=600,W(*66),NO.2	08/1992 - 09/1994	1
90445-12078	3EE..EL42 L=600,NO.2	09/1990 - 09/1994	1
16478-55020	3EE..EL42 W(*66),NO.1	08/1992 - 09/1994	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534	3EE..EL42 L=1000,NO.1	09/1990 - 09/1994	1
90445-12078	3EE..EL42 L=600,W(*66),NO.2	08/1992 - 09/1994	1
90445-12078	3EE..EL42 L=600,NO.2	09/1990 - 09/1994	1
16478-55020	3EE..EL42 W(*66),NO.1	08/1992 - 09/1994	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534	3EE..EL42 L=1000,NO.1	09/1990 - 09/1994	1
90445-12078	3EE..EL42 L=600,W(*66),NO.2	08/1992 - 09/1994	1
90445-12078	3EE..EL42 L=600,NO.2	09/1990 - 09/1994	1
16478-55020	3EE..EL42 W(*66),NO.1	08/1992 - 09/1994	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3EE..EL42	09/1990 - 09/1994	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3EE..EL42	09/1990 - 09/1994	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3EE..EL42	09/1990 - 09/1994	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3EE..EL42	09/1990 - 09/1994	2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16471-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16611-55010	3EE..EL42 W(*66)	08/1992 - 09/1994	1
16473-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16471-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16611-55010	3EE..EL42 W(*66)	08/1992 - 09/1994	1
16473-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16471-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16611-55010	3EE..EL42 W(*66)	08/1992 - 09/1994	1
16473-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-55031	3EE..EL42 W(ABS)	08/1992 - 09/1994	1
16405-55041	3EE..EL42	09/1990 - 09/1994	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-55031	3EE..EL42 W(ABS)	08/1992 - 09/1994	1
16405-55041	3EE..EL42	09/1990 - 09/1994	1
16472 - HOSE, BREATHER
16477-55020	3EE..EL42 W(ABS)	08/1992 - 09/1993	1
85338-30010	3EE..EL42	09/1990 - 09/1993	1
16477-55020	3EE..EL42	09/1993 - 09/1994	1
16472 - HOSE, BREATHER
16477-55020	3EE..EL42 W(ABS)	08/1992 - 09/1993	1
85338-30010	3EE..EL42	09/1990 - 09/1993	1
16477-55020	3EE..EL42	09/1993 - 09/1994	1
16472A - PROTECTOR, HOSE
16478-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16479-55020	3EE..EL42 W(ABS),NO.1	08/1992 - 09/1994	1
16483-55020	3EE..EL42 W(ABS),NO.2	08/1992 - 09/1994	1
16477-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16472A - PROTECTOR, HOSE
16478-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16479-55020	3EE..EL42 W(ABS),NO.1	08/1992 - 09/1994	1
16483-55020	3EE..EL42 W(ABS),NO.2	08/1992 - 09/1994	1
16477-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16472A - PROTECTOR, HOSE
16478-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16479-55020	3EE..EL42 W(ABS),NO.1	08/1992 - 09/1994	1
16483-55020	3EE..EL42 W(ABS),NO.2	08/1992 - 09/1994	1
16477-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16472A - PROTECTOR, HOSE
16478-55030	3EE..EL42 NO.2	09/1990 - 09/1994	1
16479-55020	3EE..EL42 W(ABS),NO.1	08/1992 - 09/1994	1
16483-55020	3EE..EL42 W(ABS),NO.2	08/1992 - 09/1994	1
16477-55030	3EE..EL42 NO.1	09/1990 - 09/1994	1
16533 - SUPPORT, RADIATOR, UPPER
16505-11140	3EE..EL42..3FC	09/1990 - 09/1994	2
16535 - SUPPORT, RADIATOR, LOWER
16535-64050	3EE..EL42..3FC	09/1990 - 09/1994	2
16571 - HOSE, RADIATOR, INLET
16571-11210	3EE..EL42..3FC	08/1992 - 09/1994	1
16571-11110	3EE..EL42	09/1990 - 08/1992	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003	3EE..EL42	09/1990 - 09/1994	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-31003	3EE..EL42	09/1990 - 09/1994	2
16572 - HOSE, RADIATOR, OUTLET
16572-11210	3EE..EL42..3FC	09/1990 - 09/1994	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-31003	3EE..EL42	09/1990 - 09/1994	2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-31003	3EE..EL42	09/1990 - 09/1994	2
16701 - SHROUD SUB-ASSY, FAN
16711-11230	3EE..EL42..3FC	09/1990 - 09/1994	1
Common parts
90099-00183
90099-05164
90116-08239
90119-06334
90119-08053
90119-08708
90119-08813
90179-06106
90179-06146
90179-08054
90467-12059
90469-12001
91611-60835
91651-60612
91651-60816
91656-A0616
92122-60616
92122-60640
92122-60835

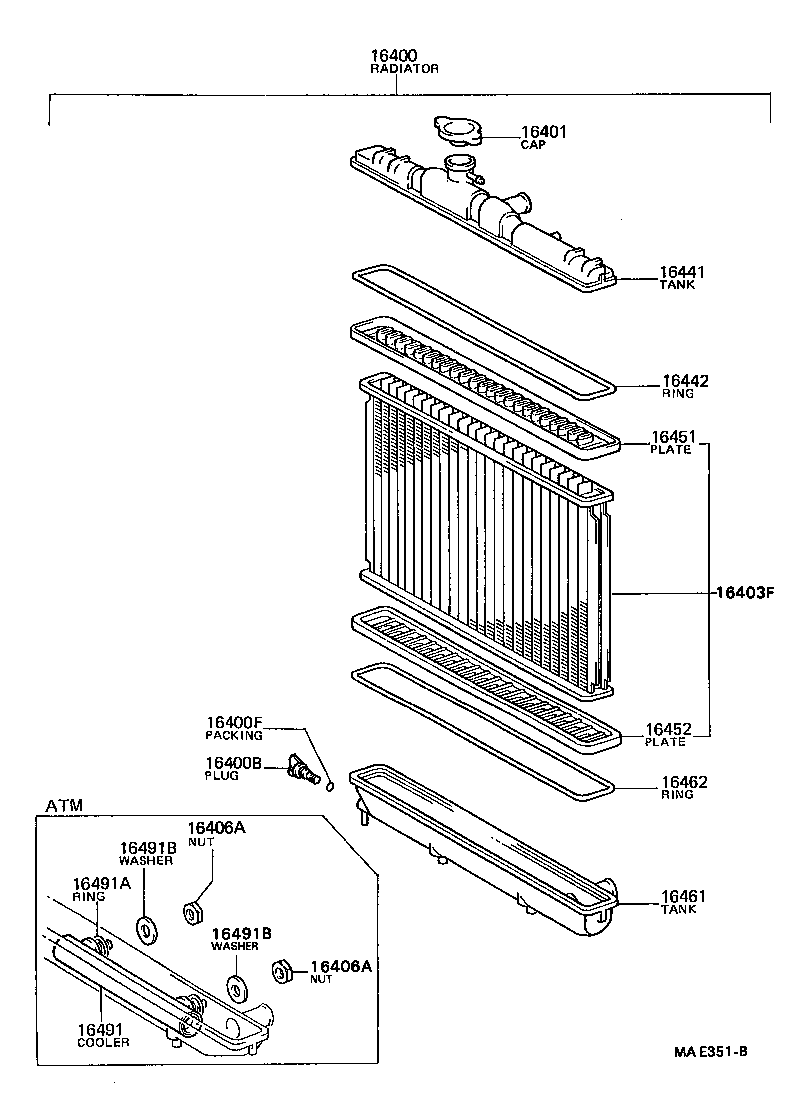

ILLUST NO. 2 OF 2(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
16400 - RADIATOR ASSY
16400-11460	3EE..EL42..3FC	09/1990 - 09/1994	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010	3EE..EL42	09/1990 - 09/1994	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007	3EE..EL42	09/1990 - 09/1994	1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090	3EE..EL42	09/1990 - 09/1994	1
16403F - CORE SUB-ASSY, RADIATOR
16403-74530	3EE..EL42..3FC	09/1990 - 09/1994	1
16406A - SUPPORT(FOR OIL COOLER)
16406-74520	3EE..EL42..3FC	09/1990 - 09/1994	2
16406A - SUPPORT(FOR OIL COOLER)
16406-74520	3EE..EL42..3FC	09/1990 - 09/1994	2
16441 - TANK, RADIATOR, UPPER
16441-11460	3EE..EL42..3FC	09/1990 - 09/1994	1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-11350	3EE..EL42..3FC	09/1990 - 08/1992	1
16462-62050	3EE..EL42..3FC	08/1992 - 09/1994	1
16451 - PLATE, RADIATOR CORE, UPPER
16452-62050	3EE..EL42..3FC	08/1992 - 09/1994	1
16451-11350	3EE..EL42..3FC	09/1990 - 08/1992	1
16452 - PLATE, RADIATOR CORE, LOWER
16452-62050	3EE..EL42..3FC	09/1990 - 08/1992	2
16452-62050	3EE..EL42..3FC	08/1992 - 09/1994	1
16461 - TANK, RADIATOR, LOWER
16461-11460	3EE..EL42..3FC	09/1990 - 09/1994	1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-62050	3EE..EL42..3FC	09/1990 - 08/1992	2
16462-62050	3EE..EL42..3FC	08/1992 - 09/1994	1
16491 - COOLER, OIL(FOR ATM)
16491-11310	3EE..EL42..3FC	09/1990 - 09/1994	1
16491A - RING, O(FOR ATM OIL COOLER)
16492-62060	3EE..EL42..3FC	09/1990 - 09/1994	2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-74520	3EE..EL42..3FC	09/1990 - 09/1994	2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-74520	3EE..EL42..3FC	09/1990 - 09/1994	2
