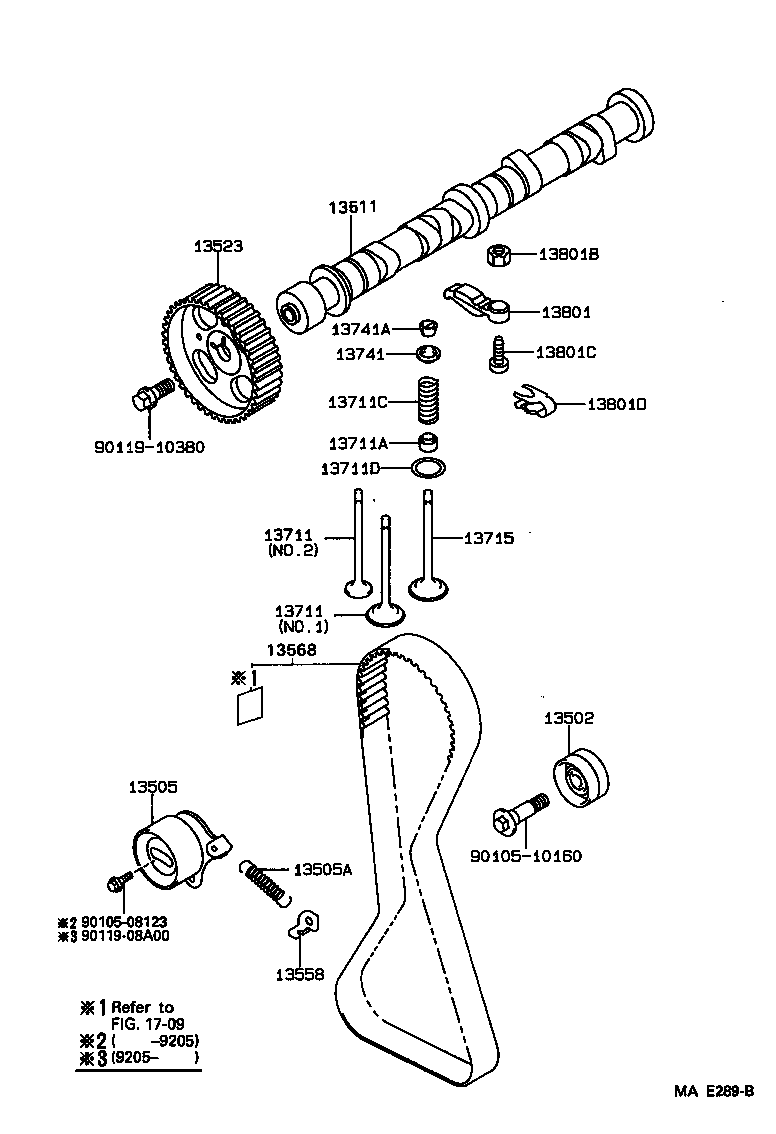

Toyota Tercel EL42 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-11010	3EE..EL42	09/1990 - 09/1994	1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-11010	3EE..EL42	09/1990 - 09/1994	1
13505A - SPRING, TENSION(FOR IDLER)
90506-15003	3EE..EL42	08/1991 - 09/1994	1
90506-16050	3EE..EL42	09/1990 - 08/1991	1
13511 - CAMSHAFT
13501-10010	3EE..EL42	09/1990 - 09/1994	1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-11010	3EE..EL42	09/1990 - 09/1994	1
13558 - BRACKET, SPRING(FOR IDLER)
13558-11010	3EE..EL42	09/1990 - 09/1994	1
13568 - BELT, TIMING
13568-19085	3EE..EL42	05/1992 - 07/1992	1
13568-11032	3EE..EL42	09/1990 - 05/1992	1
13568-19086	3EE..EL42	07/1992 - 09/1994	1
13711 - VALVE, INTAKE
13711-10020	3EE..EL42 NO.1	09/1990 - 09/1994	4
13712-11020	3EE..EL42 NO.2	09/1990 - 09/1994	4
13711 - VALVE, INTAKE
13711-10020	3EE..EL42 NO.1	09/1990 - 09/1994	4
13712-11020	3EE..EL42 NO.2	09/1990 - 09/1994	4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02081	3EE..EL42 EXHAUST SIDE	11/1990 - 09/1994	4
90913-02089	3EE..EL42 INTAKE SIDE	09/1990 - 09/1994	8
90913-02087	3EE..EL42 EXHAUST SIDE	09/1990 - 11/1990	4
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-35011	3EE..EL42	09/1990 - 09/1994	12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-19008	3EE..EL42	09/1990 - 09/1994	12
13715 - VALVE, EXHAUST
13715-10030	3EE..EL42	09/1990 - 09/1994	4
13741 - RETAINER, VALVE SPRING
13741-10020	3EE..EL42	09/1990 - 09/1994	12
13741A - LOCK, VALVE SPRING RETAINER
90913-03021	3EE..EL42	09/1990 - 09/1994	24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-10021	3EE..EL42	09/1990 - 09/1994	12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-07004	3EE..EL42	09/1990 - 09/1994	12
13801C - SCREW, VALVE ADJUSTING
13788-10013	3EE..EL42	09/1990 - 09/1994	12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
13935-10010	3EE..EL42	09/1990 - 09/1994	12
Common parts
90105-08123
90105-10160
90119-08A00
90119-10380
Linked diagrams
1709

EL42L-AEHREK (1990)

(9009- )
