EL42L-AEHREA (1990)
Toyota Tercel

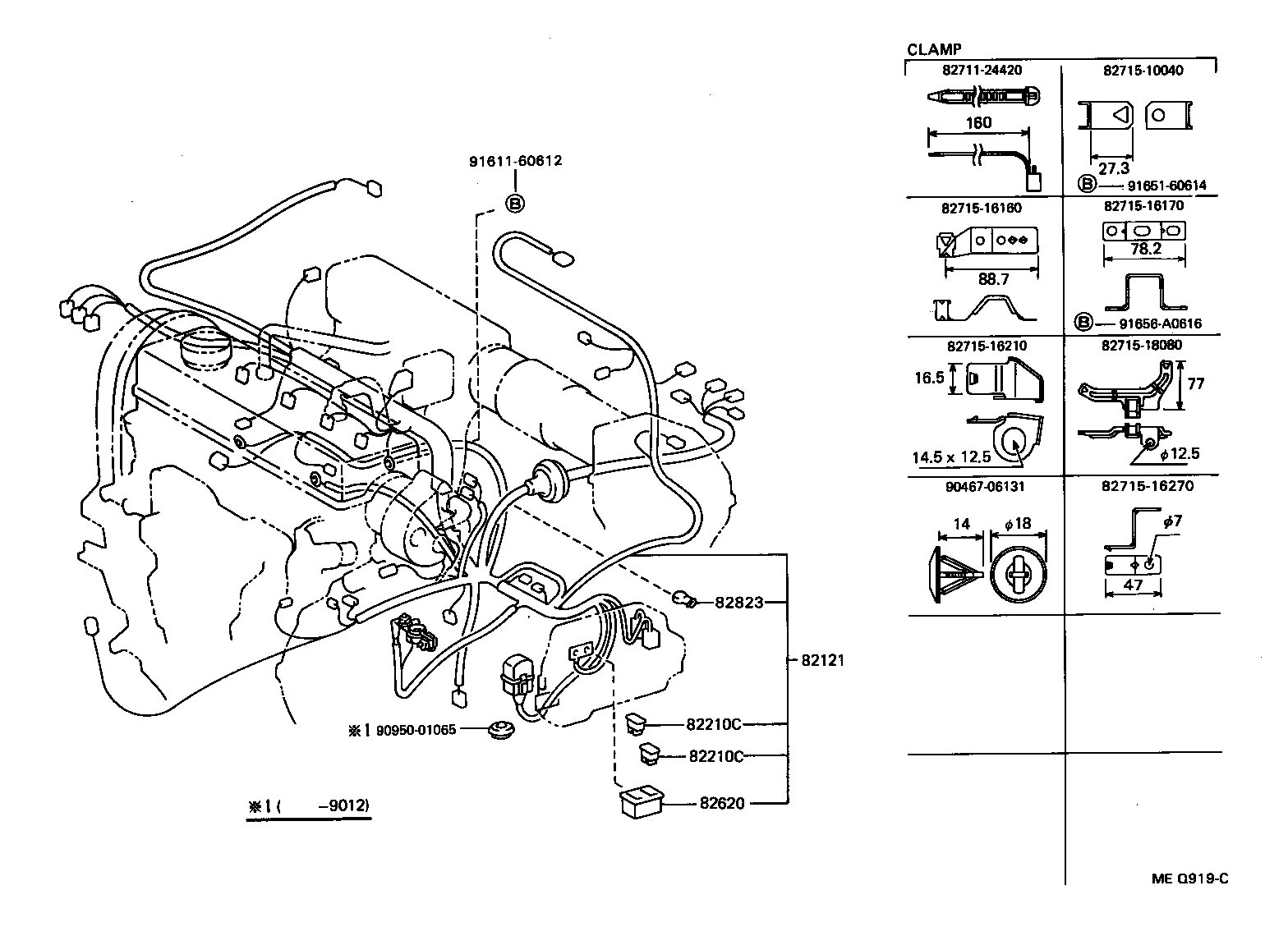

ILLUST NO. 1 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-16630 |
EL42..3FC |
1 | ||
| 82121-16650 |
EL42..3FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-16780 |
EL42..3FC |
1 | ||
| 82121-16820 |
EL42..3FC..USA CALIFORNIA SPEC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
EL42 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
EL42 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08190 |
EL42 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
EL42 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
EL42 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08190 |
EL42 60A,TERM.:FEMALE,YEL |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30030 |
EL42 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20070 |
EL42 |
1 | ||
| 82823-22060 |
EL42 |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82715-10040 | ||||
| 82715-16160 | ||||
| 82715-16170 | ||||
| 82715-16210 | ||||
| 82715-16270 | ||||
| 82715-18080 | ||||
| 90467-06131 | ||||
| 90950-01065 | ||||
| 91611-60612 | ||||
| 91651-60614 | ||||
| 91656-A0616 | ||||

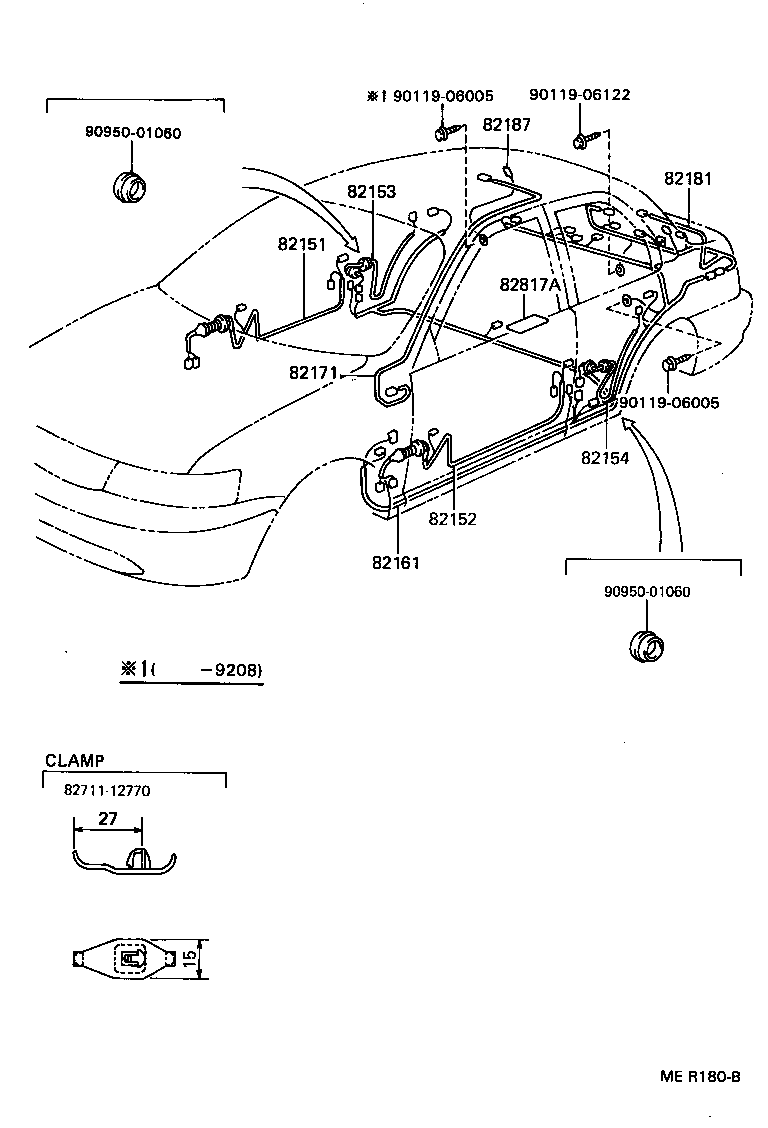

ILLUST NO. 4 OF 6(9009- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-16190 |
EL42 |
1 | ||
| 82151-16170 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82151-16350 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82151-16330 |
EL42 |
1 | ||
| 82151-16191 |
EL42 |
1 | ||
| 82151-16360 |
EL42..4DS..USA W(POWER WINDOW) |
1 | ||
| 82151-16171 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-16190 |
EL42 |
1 | ||
| 82151-16191 |
EL42 |
1 | ||
| 82152-16320 |
EL42..4DS..USA W(POWER WINDOW) |
1 | ||
| 82151-16330 |
EL42 |
1 | ||
| 82152-16151 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82152-16150 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82152-16310 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-16070 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82153-16050 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-16050 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82154-16070 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16490 |
EL42..4DS |
1 | ||
| 82161-16500 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82161-1G130 |
EL42..4DS..USA PUERTORICO SPEC & W(ABS) |
1 | ||
| 82161-1G100 |
EL42..4DS |
1 | ||
| 82161-1G120 |
EL42..4DS W(ABS) |
1 | ||
| 82161-1G121 |
EL42..4DS W(ABS) |
1 | ||
| 82161-1G131 |
EL42..4DS..USA PUERTORICO SPEC & W(ABS) |
1 | ||
| 82161-1G110 |
EL42..4DS..USA PUERTORICO SPEC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16170 |
EL42..4DS |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-16030 |
EL42 |
1 | ||
| 82181-16070 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16080 |
EL42 |
1 | ||
| 82187-16080 |
EL42..(DLX,STD)..USA COLD SPEC OR REAR WINDOW DEFOGGER(100W) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
EL42 |
1 | ||
| 82817-16410 |
EL42 |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90950-01060 | ||||

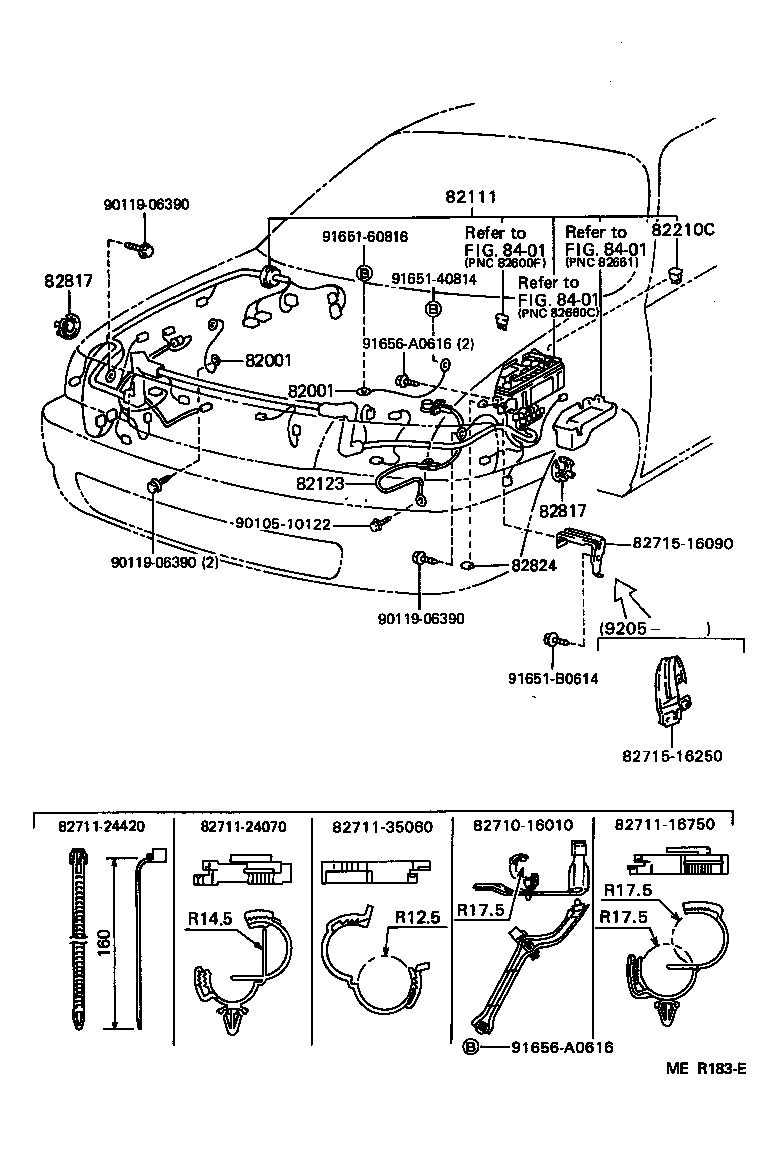

ILLUST NO. 2 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07109 |
EL42..4DS;EL42..2DS..5F..LE;EL42..2DS..(DLX,STD) LH |
1 | ||
| 90980-07341 |
EL42..4DS;EL42..2DS..5F..LE;EL42..2DS..(DLX,STD) RH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07109 |
EL42..4DS;EL42..2DS..5F..LE;EL42..2DS..(DLX,STD) LH |
1 | ||
| 90980-07341 |
EL42..4DS;EL42..2DS..5F..LE;EL42..2DS..(DLX,STD) RH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1G340 |
EL42..(DLX,LE)..USA |
1 | ||
| 82111-1G190 |
EL42..(DLX,LE)..USA |
1 | ||
| 82111-1G350 |
EL42..(DLX,LE)..USA W(ABS) |
1 | ||
| 82111-1G351 |
EL42..(DLX,LE)..USA W(ABS) |
1 | ||
| 82111-1G352 |
EL42..(DLX,LE)..USA W(ABS) |
1 | ||
| 82111-1G341 |
EL42..(DLX,LE)..USA |
1 | ||
| 82111-1G200 |
EL42..(DLX,LE)..USA PUERUTORICO SPEC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-16100 |
EL42 |
1 | ||
| 82123-16140 |
EL42..3FC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
EL42 50A,TERM.:MALE,RED |
1 | ||
| 90982-08246 |
EL42 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08190 |
EL42 60A,TERM.:FEMALE,YEL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL42 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL42 |
2 | ||
| Common parts | ||||
| 82710-16010 | ||||
| 82711-16750 | ||||
| 82711-24070 | ||||
| 82711-24420 | ||||
| 82711-35060 | ||||
| 82715-16090 | ||||
| 82715-16250 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-B0614 | ||||
| 91656-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
EL42 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||

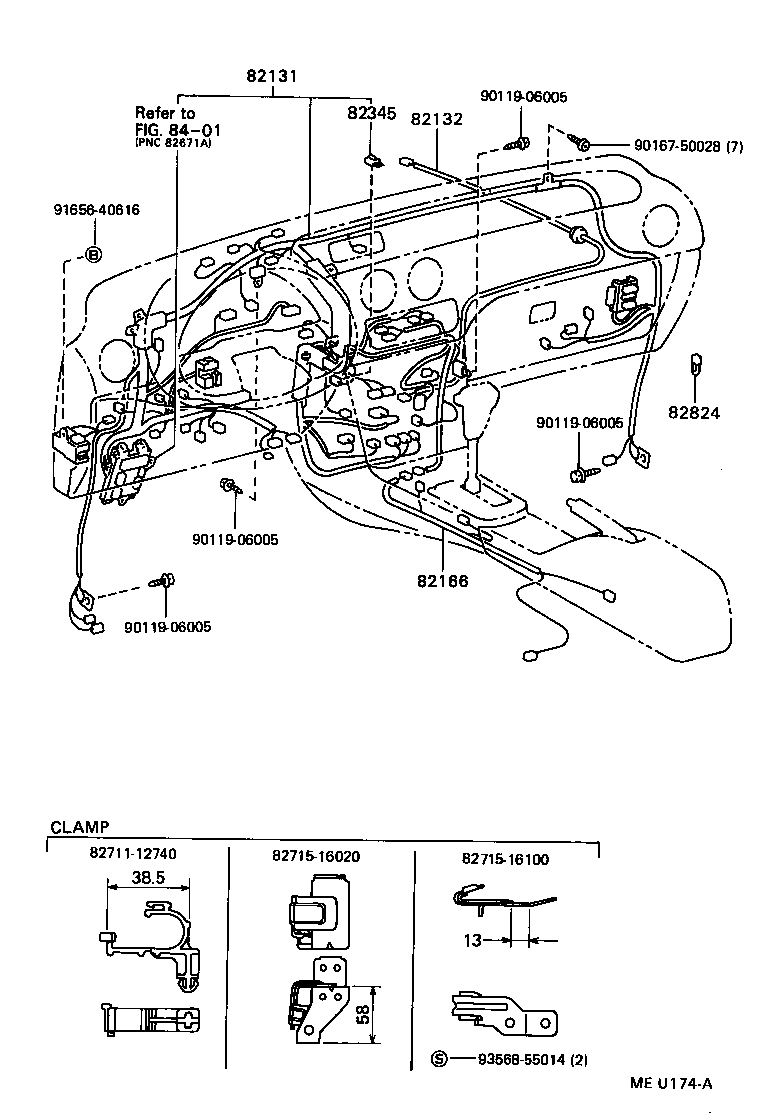

ILLUST NO. 3 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1G580 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 82131-1S140 |
EL42..USA COLD SPEC |
1 | ||
| 82131-1G570 |
EL42..(DLX,LE)..USA |
1 | ||
| 82131-1S450 |
EL42..4DS..USA;EL42..2DS..3FC..USA W(REAR WINDOW DEFOGGER=HEAVY TYPE,W(TIMER)) |
1 | ||
| 82131-1S430 |
EL42..4DS..USA;EL42..2DS..3FC..USA |
1 | ||
| 82131-1S440 |
EL42..4DS..USA;EL42..2DS..3FC..USA PUERTORICO SPEC |
1 | ||
| 82131-1S561 |
EL42..4DS..USA PUERTORICO SPEC & W(POWER WINDOW) |
1 | ||
| 82131-1S560 |
EL42..4DS..USA PUERTORICO SPEC & W(POWER WINDOW) |
1 | ||
| 82131-1G630 |
EL42..USA COLD SPEC |
1 | ||
| 82131-1S451 |
EL42..4DS..USA;EL42..2DS..3FC..USA W(REAR WINDOW DEFOGGER=HEAVY TYPE,W(TIMER)) |
1 | ||
| 82131-1S441 |
EL42..4DS..USA;EL42..2DS..3FC..USA PUERTORICO SPEC |
1 | ||
| 82131-1S431 |
EL42..4DS..USA;EL42..2DS..3FC..USA |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-16010 |
EL42..USA |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-16050 |
EL42..3FC |
1 | ||
| 82166-16130 |
EL42..3FC |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
EL42 |
1 | ||
| Common parts | ||||
| 82711-12740 | ||||
| 82715-16020 | ||||
| 82715-16100 | ||||
| 90119-06005 | ||||
| 90167-50028 | ||||
| 91656-40616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

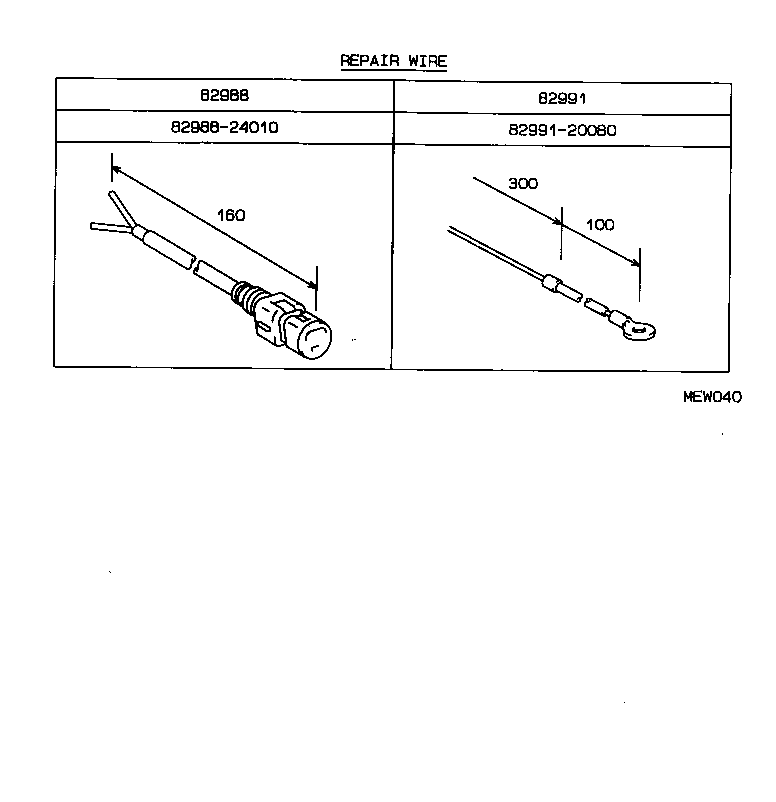

ILLUST NO. 6 OF 6(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
EL42..USA |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
EL42 |
1 | ||
| Common parts | ||||
| 82988-24010 | ||||
| 82991-20080 | ||||
