Toyota Tercel EL42 RADIATOR GRILLE

EL42L-AEHREA (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994

Engine 3EE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

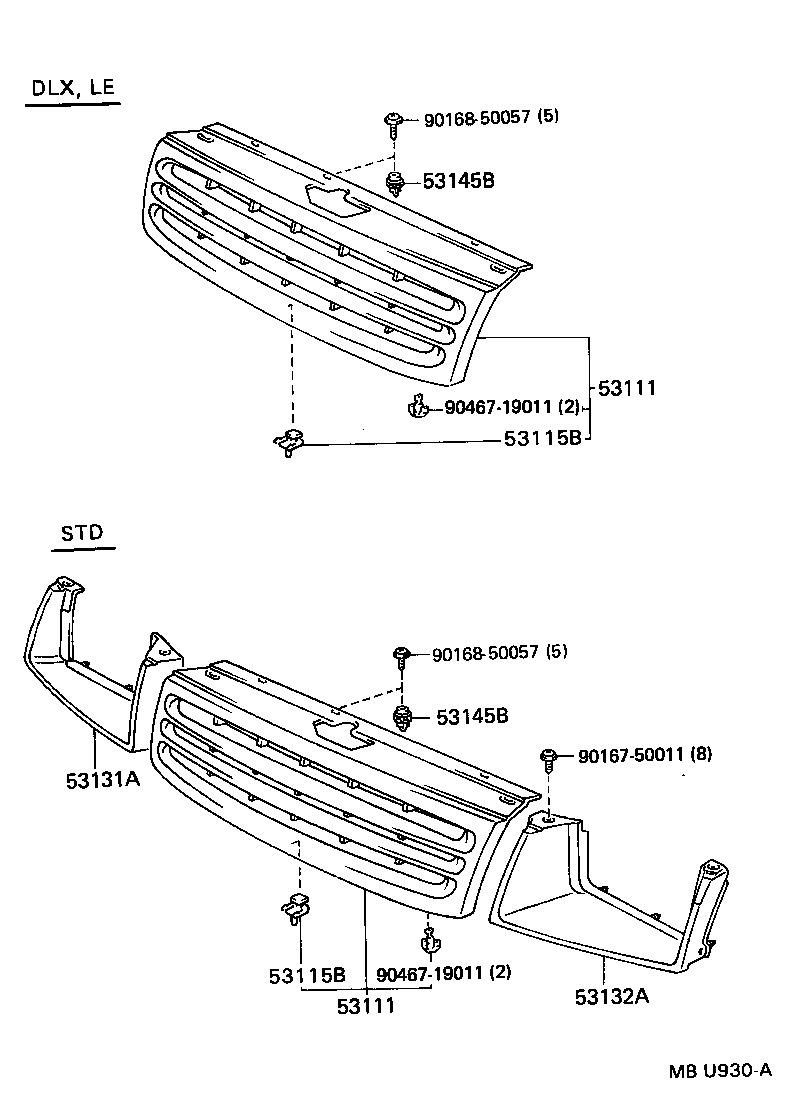

(9009-9208)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1630002	EL42..DLX,LE SUPER RED,3E5	09/1990 - 08/1992	1
53111-1630008	EL42..DLX,LE SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1630014	EL42..DLX,LE MEDIUM BLUE M M,8J2	09/1990 - 08/1992	1
53111-16390A0	EL42..DLX,LE SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-1630012	EL42..DLX,LE RED MICA,3H4	09/1990 - 08/1992	1
53111-1630004	EL42..DLX,LE DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1630007	EL42..DLX,LE GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630003	EL42..DLX,LE SUPER SILVER M 3,176	09/1990 - 08/1992	1
53111-16390D1	EL42..DLX,LE RED MC,3K4	08/1992 - 09/1994	1
53111-16390D0	EL42..DLX,LE SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16390J0	EL42..DLX,LE MI. BLUE MM,8J2	08/1992 - 09/1994	1
53111-16390B0	EL42..DLX,LE SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16390G0	EL42..DLX,LE LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111-16390G1	EL42..DLX,LE MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111 - GRILLE, RADIATOR
53111-1630002	EL42..DLX,LE SUPER RED,3E5	09/1990 - 08/1992	1
53111-1630008	EL42..DLX,LE SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1630014	EL42..DLX,LE MEDIUM BLUE M M,8J2	09/1990 - 08/1992	1
53111-16390A0	EL42..DLX,LE SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-1630012	EL42..DLX,LE RED MICA,3H4	09/1990 - 08/1992	1
53111-1630004	EL42..DLX,LE DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1630007	EL42..DLX,LE GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630003	EL42..DLX,LE SUPER SILVER M 3,176	09/1990 - 08/1992	1
53111-16390D1	EL42..DLX,LE RED MC,3K4	08/1992 - 09/1994	1
53111-16390D0	EL42..DLX,LE SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16390J0	EL42..DLX,LE MI. BLUE MM,8J2	08/1992 - 09/1994	1
53111-16390B0	EL42..DLX,LE SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16390G0	EL42..DLX,LE LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111-16390G1	EL42..DLX,LE MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL42	09/1990 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL42	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL42	09/1990 - 09/1994	3
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL42	09/1990 - 09/1994	3
Common parts
90167-50011
90168-50057
90467-19011

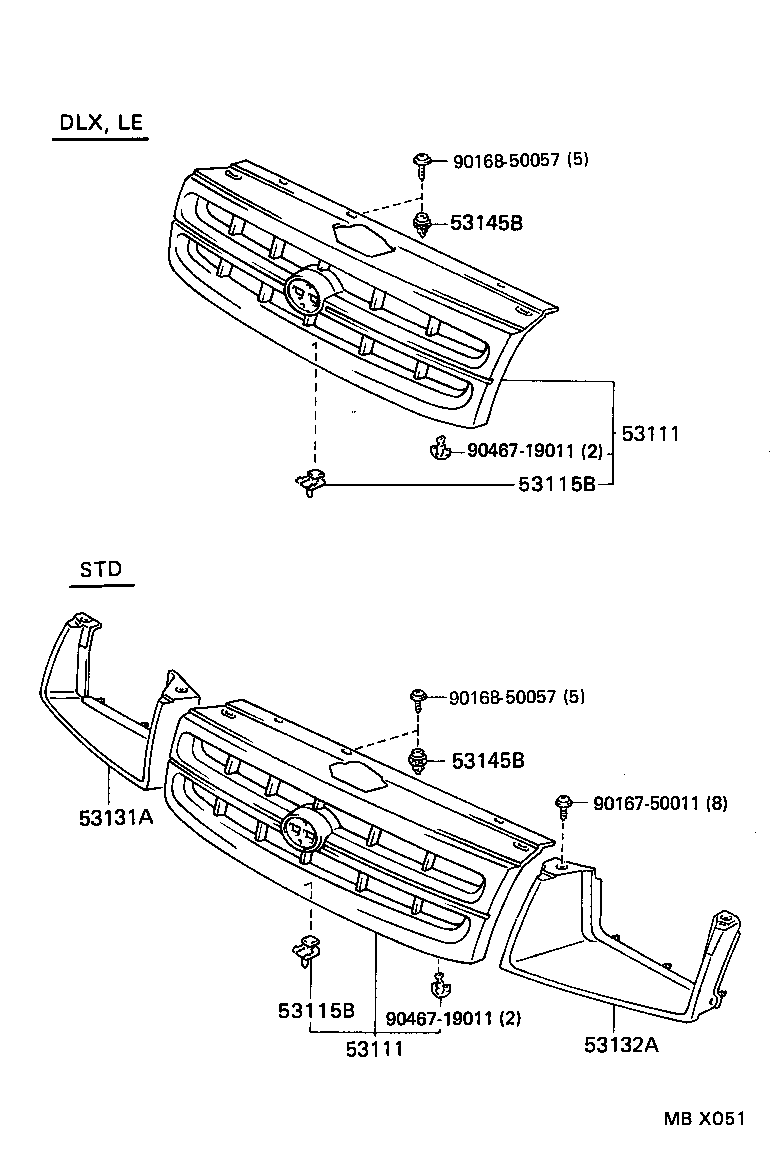

(9208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1630002	EL42..DLX,LE SUPER RED,3E5	09/1990 - 08/1992	1
53111-1630008	EL42..DLX,LE SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1630014	EL42..DLX,LE MEDIUM BLUE M M,8J2	09/1990 - 08/1992	1
53111-16390A0	EL42..DLX,LE SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-1630012	EL42..DLX,LE RED MICA,3H4	09/1990 - 08/1992	1
53111-1630004	EL42..DLX,LE DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1630007	EL42..DLX,LE GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630003	EL42..DLX,LE SUPER SILVER M 3,176	09/1990 - 08/1992	1
53111-16390D1	EL42..DLX,LE RED MC,3K4	08/1992 - 09/1994	1
53111-16390D0	EL42..DLX,LE SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16390J0	EL42..DLX,LE MI. BLUE MM,8J2	08/1992 - 09/1994	1
53111-16390B0	EL42..DLX,LE SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16390G0	EL42..DLX,LE LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111-16390G1	EL42..DLX,LE MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111 - GRILLE, RADIATOR
53111-1630002	EL42..DLX,LE SUPER RED,3E5	09/1990 - 08/1992	1
53111-1630008	EL42..DLX,LE SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1630014	EL42..DLX,LE MEDIUM BLUE M M,8J2	09/1990 - 08/1992	1
53111-16390A0	EL42..DLX,LE SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-1630012	EL42..DLX,LE RED MICA,3H4	09/1990 - 08/1992	1
53111-1630004	EL42..DLX,LE DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1630007	EL42..DLX,LE GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630003	EL42..DLX,LE SUPER SILVER M 3,176	09/1990 - 08/1992	1
53111-16390D1	EL42..DLX,LE RED MC,3K4	08/1992 - 09/1994	1
53111-16390D0	EL42..DLX,LE SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16390J0	EL42..DLX,LE MI. BLUE MM,8J2	08/1992 - 09/1994	1
53111-16390B0	EL42..DLX,LE SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16390G0	EL42..DLX,LE LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111-16390G1	EL42..DLX,LE MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL42	09/1990 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL42	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL42	09/1990 - 09/1994	3
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL42	09/1990 - 09/1994	3
Common parts
90167-50011
90168-50057
90467-19011

EL42L-AEHREA (1990)

(9009-9208)

(9208- )
