EL42L-AEHDEK (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994
Engine 3EE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

Click highlighted areas on diagram

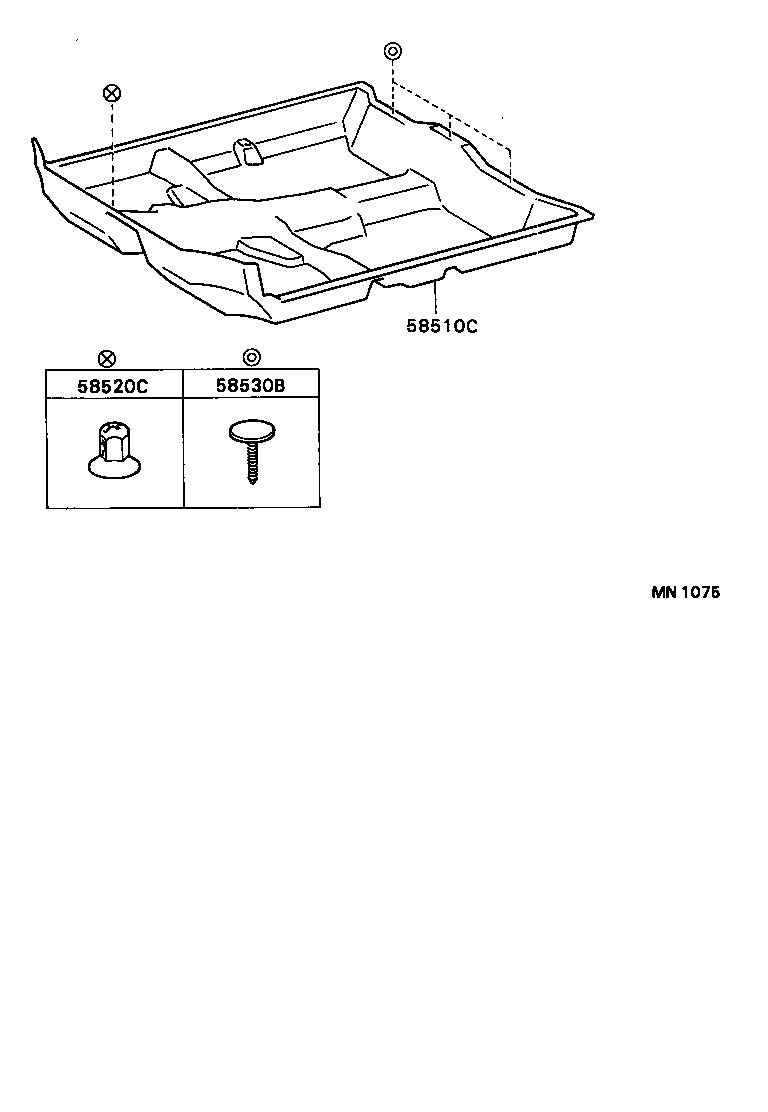

diagram 58510C 58520C 58530B
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1G49004

EL42..(DLX,LE)..CND

GRAYISH BLUE,TRIM8#

 1
58510-1G49001

EL42..(DLX,LE)..CND

BLACK,TRIM2#

 1
58510-1G49122

EL42..(DLX,LE)..CND

BLACK,TRIM2#

 1
58510-1G491W4

EL42..(DLX,LE)..CND

EISEN BLUE,TRIM8#

 1
58510-1G55122

EL42..4DS..CND

CHILE SPEC,BLACK,TRIM2#

 1
58510-1G552C0

EL42..4DS..CND

CHILE SPEC,BLACK,TRIM2#

 1
58510-1G492J0

EL42..(DLX,LE)..CND

EISEN BLUE,TRIM8#

 1
58510-1G551W4

EL42..4DS..CND

CHILE SPEC,EISEN BLUE,TRIM8#

 1
58510-1G552J0

EL42..4DS..CND

CHILE SPEC,EISEN BLUE,TRIM8#

 1
58510-1G492C0

EL42..(DLX,LE)..CND

BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0505101

EL42..DLX,LE

BLACK,TRIM2#,8#

 1
90467-0505122

EL42..DLX,LE

BLACK,TRIM2#,8#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0603701

EL42..DLX,LE

BLACK,TRIM2#,8#

 3
90467-06037C0

EL42..DLX,LE

BLACK,TRIM2#,8#

 3
90467-06166C0

EL42..DLX,LE

BLACK,TRIM2#,8#

 3
