Toyota Tercel EL42 DISTRIBUTOR - JDM Part Detective

EL42L-AEHDEK (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994

Engine 3EE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

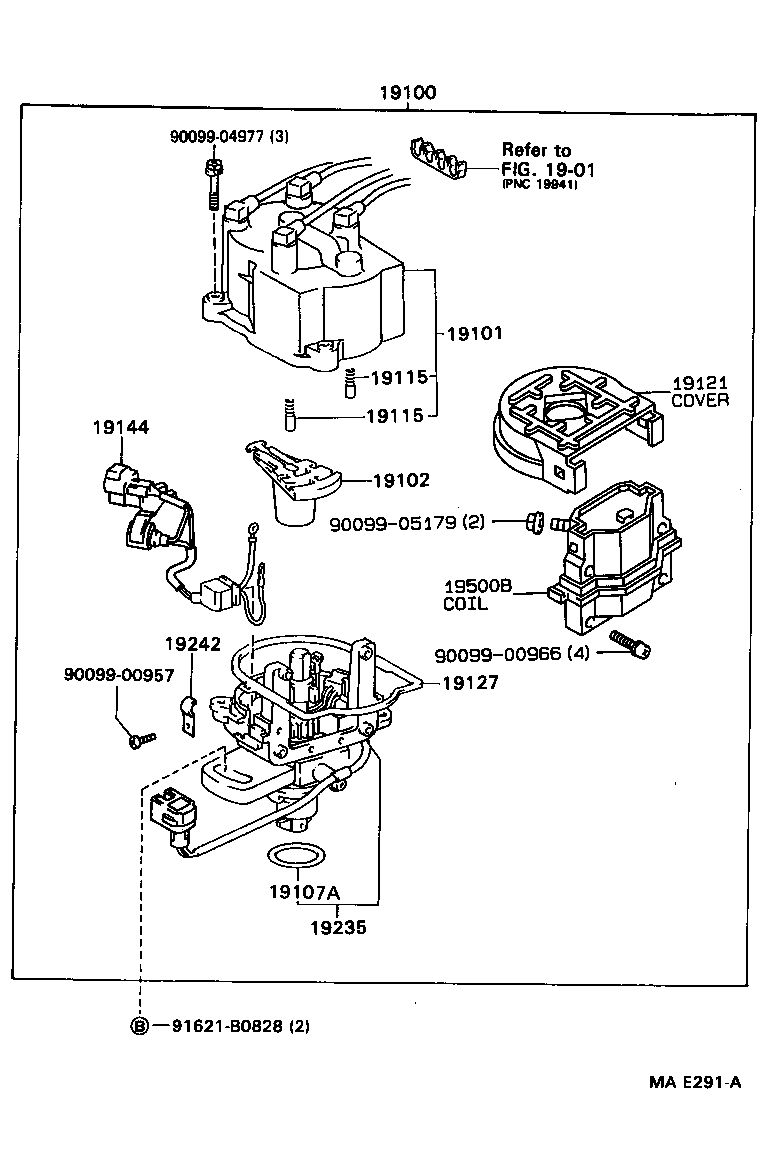

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19040-11030	3EE..EL42	09/1990 - 08/1992	1
19050-11020	3EE..EL42	08/1992 - 09/1994	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11300	3EE..EL42	08/1992 - 09/1994	1
19101-11030	3EE..EL42	09/1990 - 08/1992	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031	3EE..EL42	09/1990 - 09/1994	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	3EE..EL42	09/1990 - 09/1994	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010	3EE..EL42	09/1990 - 09/1994	2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010	3EE..EL42	09/1990 - 09/1994	2
19121 - COVER, DUST PROOF
19121-11080	3EE..EL42	09/1990 - 09/1994	1
19127 - PACKING, DUST PROOF
19127-15120	3EE..EL42	09/1990 - 09/1994	1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11070	3EE..EL42	09/1990 - 08/1992	1
19144-11090	3EE..EL42	08/1992 - 09/1994	1
19235 - HOUSING, DISTRIBUTOR
19235-11100	3EE..EL42	08/1992 - 09/1994	1
19235-11090	3EE..EL42	09/1990 - 08/1992	1
19242 - CLAMP, CORD
19242-11190	3EE..EL42 NO.1	08/1992 - 09/1994	1
19242-11190	3EE..EL42	09/1990 - 08/1992	1
19242-11030	3EE..EL42 NO.2	08/1992 - 09/1994	1
19500B - COIL ASSY, IGNITION
90919-02163	3EE..EL42	09/1990 - 08/1992	1
90919-02163	3EE..EL42	08/1992 - 09/1994	2
Common parts
90099-00957
90099-00966
90099-04977
90099-05179
91621-B0828
Linked diagrams
1901

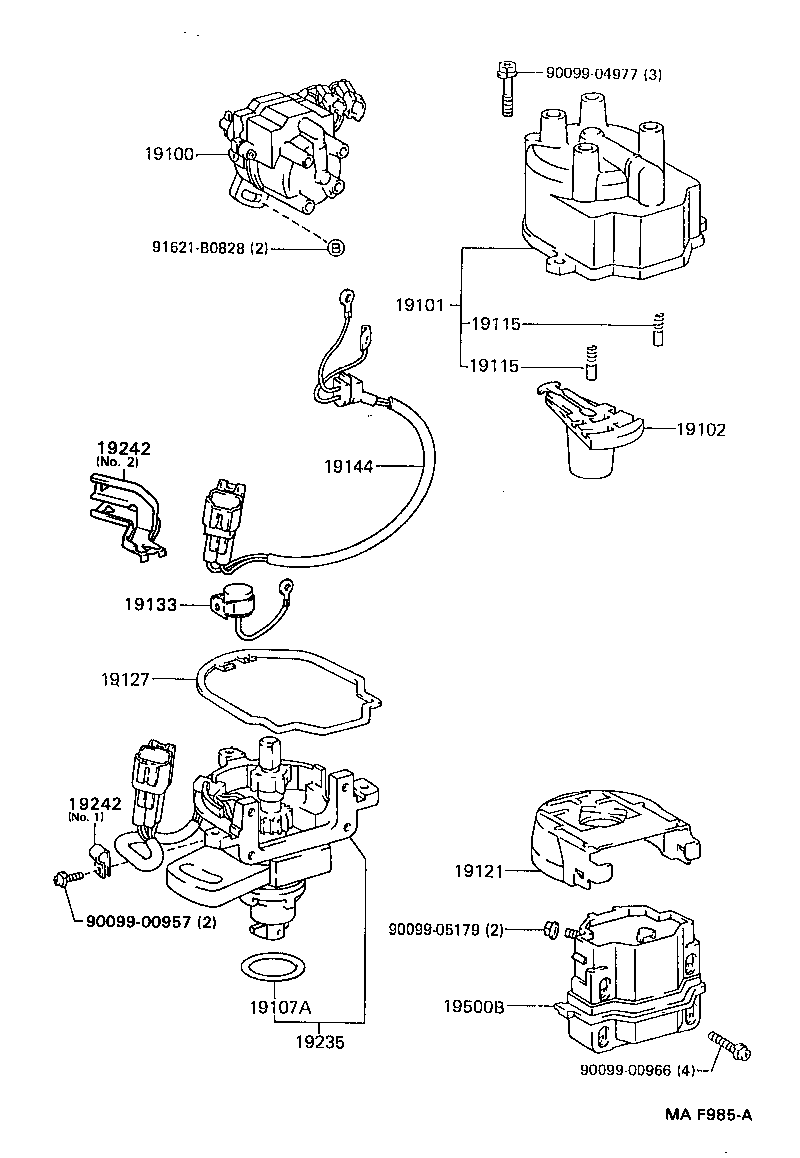

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100 - DISTRIBUTOR ASSY
19040-11030	3EE..EL42	09/1990 - 08/1992	1
19050-11020	3EE..EL42	08/1992 - 09/1994	1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11300	3EE..EL42	08/1992 - 09/1994	1
19101-11030	3EE..EL42	09/1990 - 08/1992	1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031	3EE..EL42	09/1990 - 09/1994	1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091	3EE..EL42	09/1990 - 09/1994	1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010	3EE..EL42	09/1990 - 09/1994	2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010	3EE..EL42	09/1990 - 09/1994	2
19121 - COVER, DUST PROOF
19121-11080	3EE..EL42	09/1990 - 09/1994	1
19127 - PACKING, DUST PROOF
19127-15120	3EE..EL42	09/1990 - 09/1994	1
19133 - CONDENSER, DISTRIBUTOR
19133-16240	3EE..EL42	08/1992 - 09/1994	1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11070	3EE..EL42	09/1990 - 08/1992	1
19144-11090	3EE..EL42	08/1992 - 09/1994	1
19235 - HOUSING, DISTRIBUTOR
19235-11100	3EE..EL42	08/1992 - 09/1994	1
19235-11090	3EE..EL42	09/1990 - 08/1992	1
19242 - CLAMP, CORD
19242-11190	3EE..EL42 NO.1	08/1992 - 09/1994	1
19242-11190	3EE..EL42	09/1990 - 08/1992	1
19242-11030	3EE..EL42 NO.2	08/1992 - 09/1994	1
19242 - CLAMP, CORD
19242-11190	3EE..EL42 NO.1	08/1992 - 09/1994	1
19242-11190	3EE..EL42	09/1990 - 08/1992	1
19242-11030	3EE..EL42 NO.2	08/1992 - 09/1994	1
19500B - COIL ASSY, IGNITION
90919-02163	3EE..EL42	09/1990 - 08/1992	1
90919-02163	3EE..EL42	08/1992 - 09/1994	2
Common parts
90099-00957
90099-00966
90099-04977
90099-05179
91621-B0828
