EL42L-AEHDEA (1990)
Toyota Tercel

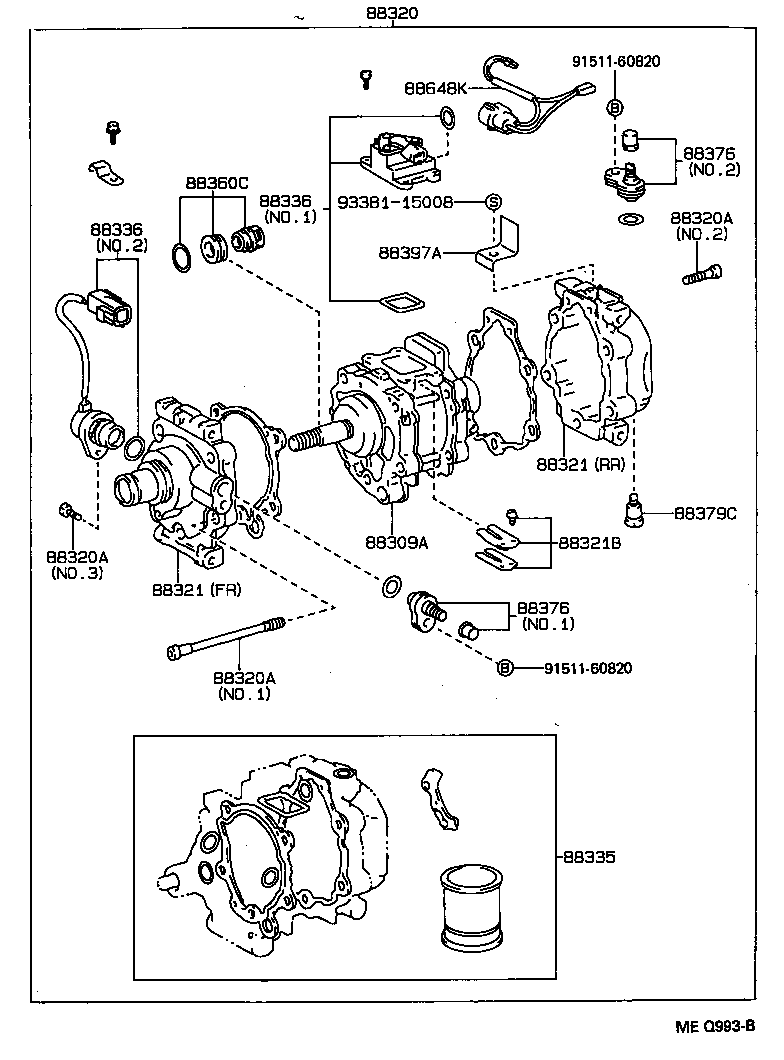

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-10050 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88309-12010 |
EL42..USA |
1 | ||
| 88309-12030 |
EL42..USA |
1 | ||
| 88309-10070 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88309-12080 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88309-12110 |
EL42..USA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-16160 |
EL42 W(PS) |
1 | ||
| 88320-16170 |
EL42 |
1 | ||
| 88320-16190 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88320-16340 |
EL42 W(PS) |
1 | ||
| 88320-16240 |
EL42..USA W(PS) |
1 | ||
| 88320-16270 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88320-16180 |
EL42..USA PUERTORICO SPEC & W(PS) |
1 | ||
| 88320-16310 |
EL42..USA PUERTORICO SPEC & W(PS) |
1 | ||
| 88320-16330 |
EL42 |
1 | ||
| 88320-16250 |
EL42..USA |
1 | ||
| 88320-16241 |
EL42..3FC..USA W(PS) |
1 | ||
| 88320-16311 |
EL42..USA PUERTORICO SPEC & W(PS) |
1 | ||
| 88320-16251 |
EL42..USA |
1 | ||
| 88320-16290 |
EL42..USA PUERTORICO SPEC & W(PS) |
1 | ||
| 88320-16271 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88320-16300 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16020 |
EL42..USA NO.2 |
2 | ||
| 88329-16010 |
EL42..USA NO.1 |
5 | ||
| 88329-16030 |
EL42..USA NO.3 |
1 | ||
| 88329-10010 |
EL42..USA PUERTORICO SPEC,NO.1 |
5 | ||
| 88329-10020 |
EL42..USA PUERTORICO SPEC,NO.2 |
2 | ||
| 88329-16020 |
EL42..USA NO.2 |
2 | ||
| 88329-16010 |
EL42..USA NO.1 |
5 | ||
| 88329-16030 |
EL42..3FC..USA NO.3 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16020 |
EL42..USA NO.2 |
2 | ||
| 88329-16010 |
EL42..USA NO.1 |
5 | ||
| 88329-16030 |
EL42..USA NO.3 |
1 | ||
| 88329-10010 |
EL42..USA PUERTORICO SPEC,NO.1 |
5 | ||
| 88329-10020 |
EL42..USA PUERTORICO SPEC,NO.2 |
2 | ||
| 88329-16020 |
EL42..USA NO.2 |
2 | ||
| 88329-16010 |
EL42..USA NO.1 |
5 | ||
| 88329-16030 |
EL42..3FC..USA NO.3 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16020 |
EL42..USA NO.2 |
2 | ||
| 88329-16010 |
EL42..USA NO.1 |
5 | ||
| 88329-16030 |
EL42..USA NO.3 |
1 | ||
| 88329-10010 |
EL42..USA PUERTORICO SPEC,NO.1 |
5 | ||
| 88329-10020 |
EL42..USA PUERTORICO SPEC,NO.2 |
2 | ||
| 88329-16020 |
EL42..USA NO.2 |
2 | ||
| 88329-16010 |
EL42..USA NO.1 |
5 | ||
| 88329-16030 |
EL42..3FC..USA NO.3 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16040 |
EL42 W(PS),FR |
1 | ||
| 88322-16030 |
EL42..USA PUERTORICO SPEC,RR |
1 | ||
| 88322-12070 |
EL42 RR |
1 | ||
| 88322-12080 |
EL42..USA PUERTORICO SPEC & W(PS),RR |
1 | ||
| 88321-10060 |
EL42..USA PUERTORICO SPEC,FR |
1 | ||
| 88321-16040 |
EL42..USA W(PS),FR |
1 | ||
| 88321-16030 |
EL42..USA FR |
1 | ||
| 88321-16050 |
EL42..USA PUERTORICO SPEC & W(PS),FR |
1 | ||
| 88322-12070 |
EL42..USA RR |
1 | ||
| 88321-16030 |
EL42 FR |
1 | ||
| 88321-12081 |
EL42..USA PUERTORICO SPEC & W(PS),FR |
1 | ||
| 88321-12080 |
EL42..USA PUERTORICO SPEC & W(PS),FR |
1 | ||
| 88322-12100 |
EL42..USA RR |
1 | ||
| 88321-12130 |
EL42..3FC..USA W(PS),FR |
1 | ||
| 88322-12080 |
EL42..USA PUERTORICO SPEC & W(PS) OR PUERTORICO SPEC,RR |
1 | ||
| 88321-12090 |
EL42..USA PUERTORICO SPEC,FR |
1 | ||
| 88321-12091 |
EL42..USA PUERTORICO SPEC,FR |
1 | ||
| 88321-12140 |
EL42..USA FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16040 |
EL42 W(PS),FR |
1 | ||
| 88322-16030 |
EL42..USA PUERTORICO SPEC,RR |
1 | ||
| 88322-12070 |
EL42 RR |
1 | ||
| 88322-12080 |
EL42..USA PUERTORICO SPEC & W(PS),RR |
1 | ||
| 88321-10060 |
EL42..USA PUERTORICO SPEC,FR |
1 | ||
| 88321-16040 |
EL42..USA W(PS),FR |
1 | ||
| 88321-16030 |
EL42..USA FR |
1 | ||
| 88321-16050 |
EL42..USA PUERTORICO SPEC & W(PS),FR |
1 | ||
| 88322-12070 |
EL42..USA RR |
1 | ||
| 88321-16030 |
EL42 FR |
1 | ||
| 88321-12081 |
EL42..USA PUERTORICO SPEC & W(PS),FR |
1 | ||
| 88321-12080 |
EL42..USA PUERTORICO SPEC & W(PS),FR |
1 | ||
| 88322-12100 |
EL42..USA RR |
1 | ||
| 88321-12130 |
EL42..3FC..USA W(PS),FR |
1 | ||
| 88322-12080 |
EL42..USA PUERTORICO SPEC & W(PS) OR PUERTORICO SPEC,RR |
1 | ||
| 88321-12090 |
EL42..USA PUERTORICO SPEC,FR |
1 | ||
| 88321-12091 |
EL42..USA PUERTORICO SPEC,FR |
1 | ||
| 88321-12140 |
EL42..USA FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-10010 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88307-12050 |
EL42..USA |
1 | ||
| 88307-12050 |
EL42..USA |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-10020 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88335-12070 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88335-12110 |
EL42..USA |
1 | ||
| 88335-16050 |
EL42..USA |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EL42..USA NO.1 |
1 | ||
| 88336-16030 |
EL42..USA NO.2 |
1 | ||
| 88336-10020 |
EL42..USA PUERTORICO SPEC,NO.1 |
1 | ||
| 88336-16050 |
EL42..USA NO.2 |
1 | ||
| 88336-16010 |
EL42..USA NO.1 |
1 | ||
| 88336-16050 |
EL42..3FC..USA NO.2 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EL42..USA NO.1 |
1 | ||
| 88336-16030 |
EL42..USA NO.2 |
1 | ||
| 88336-10020 |
EL42..USA PUERTORICO SPEC,NO.1 |
1 | ||
| 88336-16050 |
EL42..USA NO.2 |
1 | ||
| 88336-16010 |
EL42..USA NO.1 |
1 | ||
| 88336-16050 |
EL42..3FC..USA NO.2 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-12100 |
EL42..USA |
1 | ||
| 88360-10020 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88360-12090 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88360-16010 |
EL42..USA |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-16030 |
EL42..USA NO.2 |
1 | ||
| 88376-12010 |
EL42..USA NO.1 |
1 | ||
| 88376-16040 |
EL42..USA NO.2 |
1 | ||
| 88376-16020 |
EL42..USA NO.1 |
1 | ||
| 88376-12020 |
EL42..USA NO.2 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-16030 |
EL42..USA NO.2 |
1 | ||
| 88376-12010 |
EL42..USA NO.1 |
1 | ||
| 88376-16040 |
EL42..USA NO.2 |
1 | ||
| 88376-16020 |
EL42..USA NO.1 |
1 | ||
| 88376-12020 |
EL42..USA NO.2 |
1 | ||
| 88379C - VALVE, PRESSURE RELIEF | ||||
| 88379-12050 |
EL42..USA |
1 | ||
| 88379-12040 |
EL42 |
1 | ||
| 88379-12040 |
EL42 |
1 | ||
| 88379-12040 |
EL42..USA;EL42..2DS..CND |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-16020 |
EL42..USA |
1 | ||
| 88397-16030 |
EL42..USA |
1 | ||
| 88397-16030 |
EL42..USA |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-16180 |
EL42 |
1 | ||
| 88648-16170 |
EL42..USA W(PS) OR PUERTORICO SPEC & W(PS) |
1 | ||
| 88648-10310 |
EL42..USA |
1 | ||
| 88648-10310 |
EL42..USA |
1 | ||
| Common parts | ||||
| 91511-60820 | ||||
| 93381-15008 | ||||

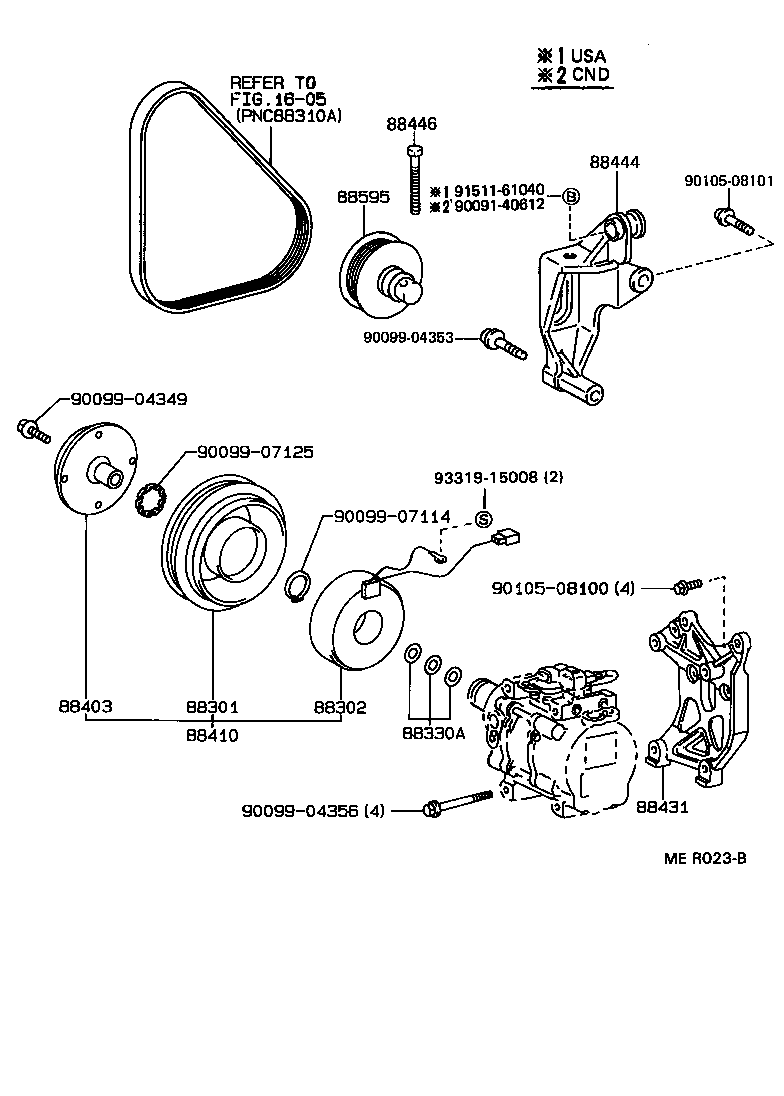

ILLUST NO. 1 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16060 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88412-10150 |
EL42..USA |
1 | ||
| 88412-16070 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88412-10130 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88412-16150 |
EL42..USA |
1 | ||
| 88412-16060 |
EL42..USA |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16050 |
EL42..USA |
1 | ||
| 88411-1A040 |
EL42..USA |
1 | ||
| 88411-16060 |
EL42..USA |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
EL42..USA |
1 | ||
| 88335-14020 |
EL42..USA |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-1A010 |
EL42..USA |
1 | ||
| 88403-16011 |
EL42..USA |
1 | ||
| 88403-1A010 |
EL42..USA |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-16160 |
EL42..USA |
1 | ||
| 88410-16170 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88410-16090 |
EL42..USA |
1 | ||
| 88410-16260 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88410-16100 |
EL42..USA PUERTORICO SPEC |
1 | ||
| 88410-16270 |
EL42..USA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-16090 |
EL42..USA |
1 | ||
| 88431-16040 |
EL42..USA |
1 | ||
| 88431-16060 |
EL42..USA PUERTORICO SPEC & W(POWER STEERING) OR PUERTORICO SPEC |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-16030 |
EL42..USA |
1 | ||
| 88444-16030 |
EL42..USA |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
EL42..USA |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
EL42..USA |
1 | ||
| 88440-17010 |
EL42..USA |
1 | ||
| Common parts | ||||
| 90091-40612 | ||||
| 90099-04349 | ||||
| 90099-04353 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1605 | ||||
