EL42L-AEHDEA (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994

Engine 3EE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9009- )3EE..USA ; (9208- )3EE..CND

Click highlighted areas on diagram

12V 0.8KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-10030	3EE..EL42..USA	09/1990 - 09/1994	1
28011-26042	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28100 - STARTER ASSY
28100-10030	3EE..EL42..USA 12V 0.8KW	09/1990 - 09/1994	1
28100-10040	3EE..EL42..USA 12V 1.0KW,COLD SPEC	09/1990 - 09/1994	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-10040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28110-10030	3EE..EL42..USA	09/1990 - 09/1994	1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011	3EE..EL42..USA	09/1990 - 05/1991	1
90099-10200	3EE..EL42..USA	05/1991 - 09/1994	1
28113 - LEVER, STARTER PINION DRIVE
28113-15011	3EE..EL42..USA	09/1990 - 09/1994	1
28120 - YOKE ASSY, STARTER
28120-26071	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28120-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-10040	3EE..EL42..USA COLD SPEC	12/1990 - 09/1994	1
28130-34060	3EE..EL42..USA COLD SPEC	09/1990 - 12/1990	1
28130-10050	3EE..EL42..USA	07/1991 - 09/1994	1
28130-10030	3EE..EL42..USA	09/1990 - 07/1991	1
28131 - BUSH, COMMUTATOR END FRAME
90099-10134	3EE..EL42..USA	09/1990 - 09/1994	1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28136 - PLATE, STARTER LOCK
28136-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28140-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080	3EE..EL42..USA COLD SPEC	09/1990 - 12/1990	1
28150-34060	3EE..EL42..USA COLD SPEC	12/1990 - 09/1994	1
28150-37010	3EE..EL42..USA	09/1990 - 09/1994	1
28160 - ARMATURE ASSY, STARTER
28160-26071	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28160-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28162 - SPRING, STARTER BRAKE
28162-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011	3EE..EL42..USA	09/1990 - 09/1994	1
28199 - COVER, STARTER
28199-10030	3EE..EL42..USA	09/1990 - 07/1991	1
28199-64150	3EE..EL42..USA	07/1991 - 09/1994	1
Common parts
90099-00926
90099-04921
90099-05178
90099-07047
90099-12405
90179-08146
91611-61060
94110-40800
94511-00800

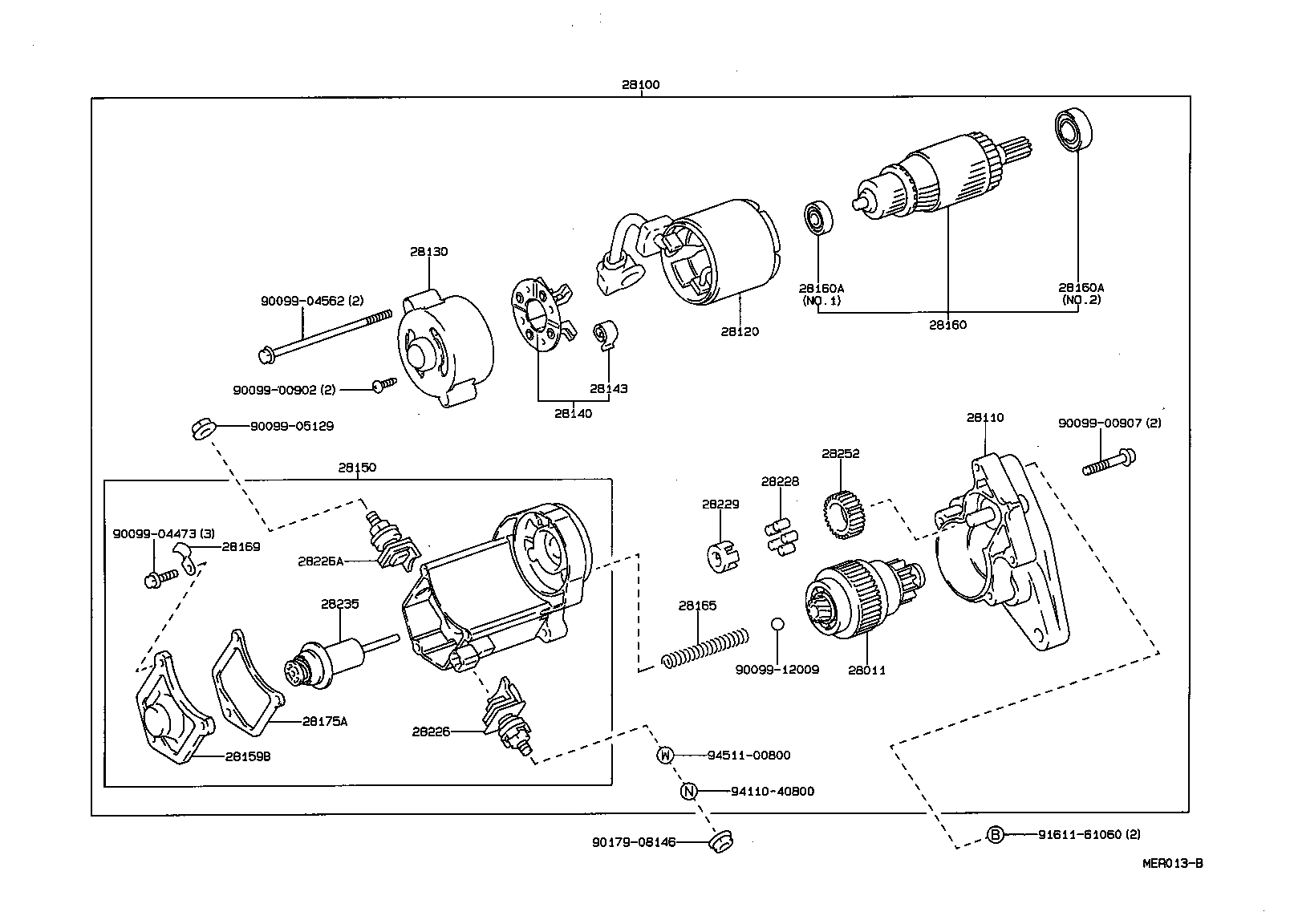

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

12V 1.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-10030	3EE..EL42..USA	09/1990 - 09/1994	1
28011-26042	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28100 - STARTER ASSY
28100-10030	3EE..EL42..USA 12V 0.8KW	09/1990 - 09/1994	1
28100-10040	3EE..EL42..USA 12V 1.0KW,COLD SPEC	09/1990 - 09/1994	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-10040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28110-10030	3EE..EL42..USA	09/1990 - 09/1994	1
28120 - YOKE ASSY, STARTER
28120-26071	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28120-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-10040	3EE..EL42..USA COLD SPEC	12/1990 - 09/1994	1
28130-34060	3EE..EL42..USA COLD SPEC	09/1990 - 12/1990	1
28130-10050	3EE..EL42..USA	07/1991 - 09/1994	1
28130-10030	3EE..EL42..USA	09/1990 - 07/1991	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28140-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28143 - SPRING, STARTER BRUSH
90099-17112	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080	3EE..EL42..USA COLD SPEC	09/1990 - 12/1990	1
28150-34060	3EE..EL42..USA COLD SPEC	12/1990 - 09/1994	1
28150-37010	3EE..EL42..USA	09/1990 - 09/1994	1
28159B - COVER, MAGNET SWITCH
28159-10040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28160 - ARMATURE ASSY, STARTER
28160-26071	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28160-15010	3EE..EL42..USA	09/1990 - 09/1994	1
28160A - BEARING, STARTER ARMATURE
90099-10113	3EE..EL42..USA COLD SPEC,NO.2	09/1990 - 09/1994	1
28253-45020	3EE..EL42..USA COLD SPEC,NO.1	09/1990 - 09/1994	1
28160A - BEARING, STARTER ARMATURE
90099-10113	3EE..EL42..USA COLD SPEC,NO.2	09/1990 - 09/1994	1
28253-45020	3EE..EL42..USA COLD SPEC,NO.1	09/1990 - 09/1994	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72080	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28235 - PLUNGER, MAGNET SWITCH
28235-35080	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
28252 - GEAR, STARTER IDLE
28254-45020	3EE..EL42..USA COLD SPEC	09/1990 - 09/1994	1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-12009
90179-08146
91611-61060
94110-40800
94511-00800
