EL42L-ADMREK (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994
Engine 3EE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009-9208)DLX,STD ; (9208- )DLX,STD..CND

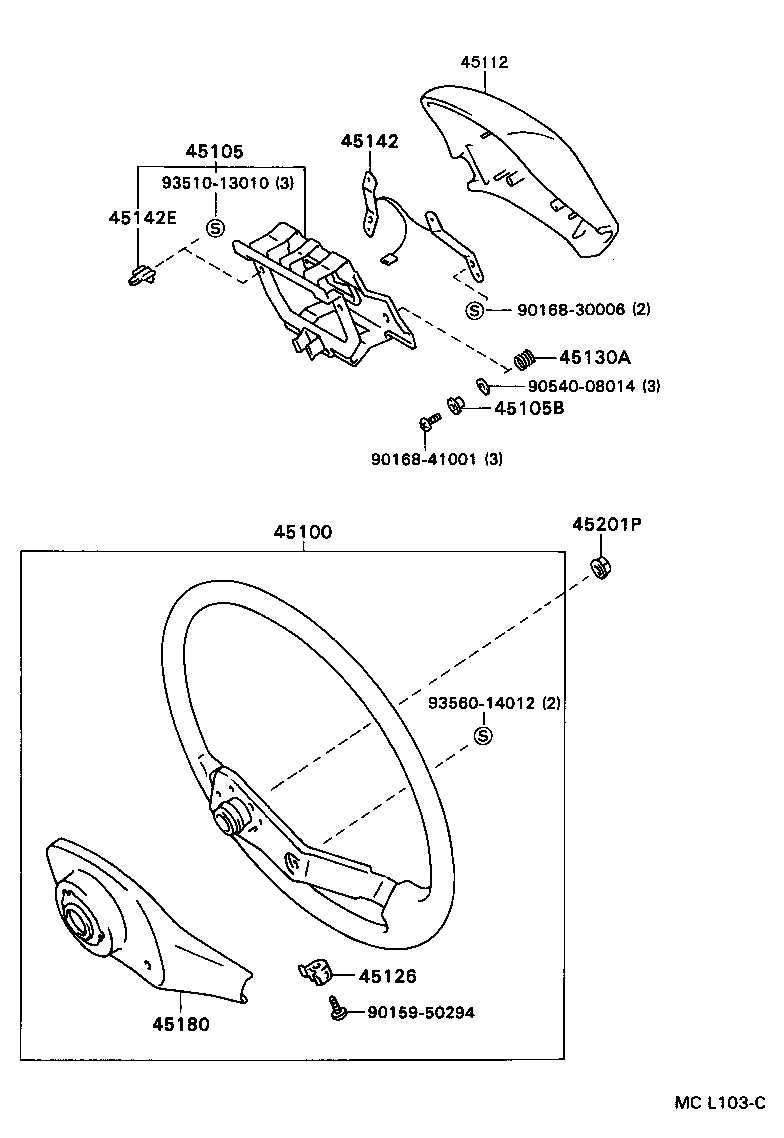

Click highlighted areas on diagram

diagram 45100 45105 45105B 45112 45126 45130A 45142 45142E 45180 45201P 9015950294 9016830006 9016841001 9054008014 9351013010 9356014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1624004

EL42..DLX

GRAYISH BLUE,TRIM8#

 1
45100-1624001

EL42..DLX,STD

BLACK,TRIM2#

 1
45100-16240W4

EL42..DLX..CND

EISEN BLUE,TRIM8#

 1
45100-1624022

EL42..(DLX,STD)..CND

BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-16110

EL42..DLX,STD

 1
45105-16110

EL42..(DLX,STD)..CND

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04010

EL42..(DLX,STD)..CND

 3
90561-04010

EL42..DLX,STD

 3
45112 - PAD, STEERING WHEEL
45112-16190C0

EL42..(DLX,STD)..CND

BLACK,TRIM2#

 1
45112-1619001

EL42..DLX,STD

BLACK,TRIM2#

 1
45112-16190J0

EL42..DLX..CND

EISEN BLUE,TRIM8#

 1
45112-1619004

EL42..DLX

GRAYISH BLUE,TRIM8#

 1
45126 - PLATE, STEERING WHEEL PAD SET
45126-16040

EL42..DLX,STD

 1
45126-16040

EL42..(DLX,STD)..CND

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10104

EL42..(DLX,STD)..CND

 4
90501-10104

EL42..DLX,STD

 4
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-16060

EL42..(DLX,STD)..CND

 1
45142-16060

EL42..DLX,STD

 1
45142E - PIECE, HORN CONTACT
45142-12090

EL42..(DLX,STD)..CND

 3
45142-12090

EL42..DLX,STD

 3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1611004

EL42..DLX

GRAYISH BLUE,TRIM8#

 1
45180-1611001

EL42..DLX,STD

BLACK,TRIM2#

 1
45180-16110C0

EL42..(DLX,STD)..CND

BLACK,TRIM2#

 1
45180-16110J0

EL42..DLX..CND

EISEN BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

EL42

 1
90179-12086

EL42

 1
Common parts
90159-50294
90168-30006
90168-41001
90540-08014
93510-13010
93560-14012
