EL42L-ADMDEK (1990)
Toyota Tercel
Production
Sep 1990
-
Aug 1992
Engine
3EE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

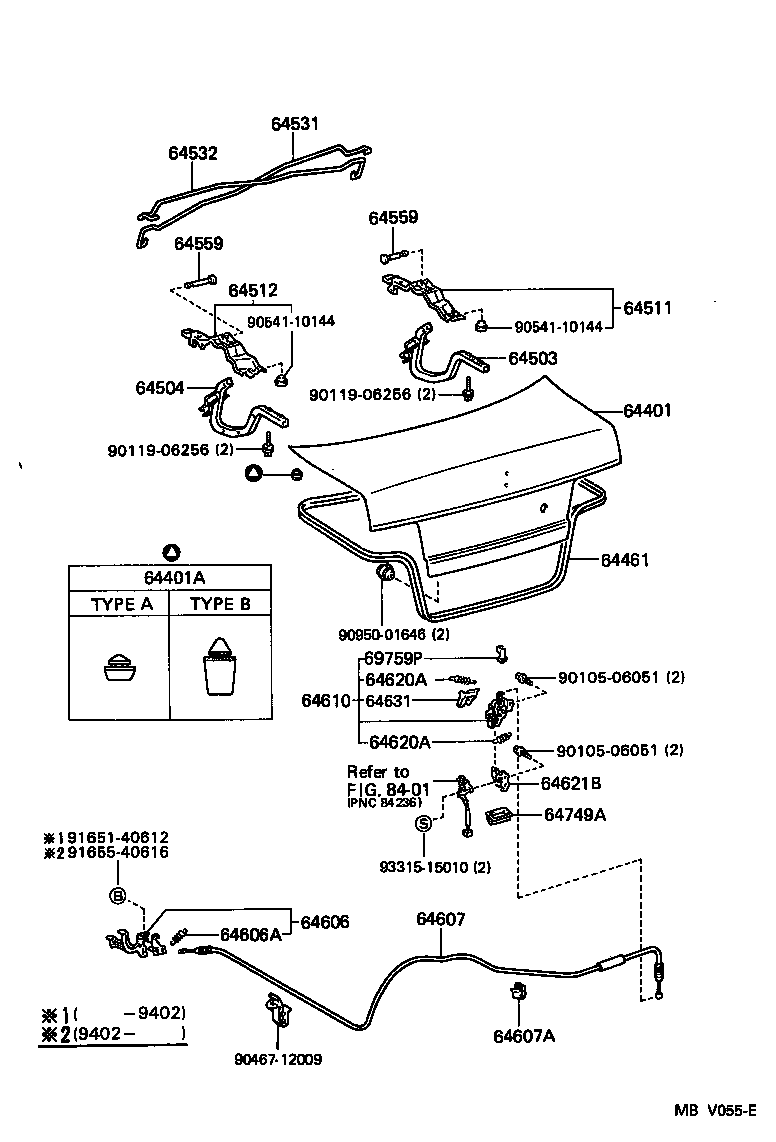

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-16120 |
EL42..LE |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09043 |
EL42 TYPE B |
2 | ||
| 90541-06076 |
EL42 TYPE A |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-16130 |
EL42 |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-16020 |
EL42 |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-16020 |
EL42 |
1 | ||
| 64504-16010 |
EL42 |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-16040 |
EL42 |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-16040 |
EL42 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-16150 |
EL42..LE |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-16150 |
EL42..LE |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-30010 |
EL42 |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-30010 |
EL42 |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-16060 |
EL42..LE..USA;EL42..(DLX,LE)..CND |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EL42..LE..USA;EL42..(DLX,LE)..CND |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-16280 |
EL42..LE..USA;EL42..(DLX,LE)..CND |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-01369 |
EL42..DLX,LE |
4 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-16061 |
EL42..LE..USA;EL42..(DLX,LE)..CND |
1 | ||
| 64610-16060 |
EL42..LE..USA;EL42..(DLX,LE)..CND |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
EL42..LE..USA;EL42..(DLX,LE)..CND CW=17.5,WD=0.55 |
1 | ||
| 90506-05002 |
EL42..LE..USA;EL42..(DLX,LE)..CND CW=17.25,WD=0.55 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
EL42..LE..USA;EL42..(DLX,LE)..CND CW=17.5,WD=0.55 |
1 | ||
| 90506-05002 |
EL42..LE..USA;EL42..(DLX,LE)..CND CW=17.25,WD=0.55 |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-22040 |
EL42 |
1 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20190 |
EL42..LE..USA;EL42..(DLX,LE)..CND |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06256 | ||||
| 90467-12009 | ||||
| 90541-10144 | ||||
| 90950-01646 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93315-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
