Toyota Tercel EL42 FRONT DISC BRAKE CALIPER & DUST COVER

Part #	Description	Period	Qty
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-10070	EL42	09/1990 - 09/1994	1
04479-12091	EL42 W(*66)	08/1992 - 09/1994	1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-10220	EL42	09/1990 - 01/1994	1
04491-10221	EL42	01/1994 - 09/1994	1
04491-16210	EL42 W(*66)	08/1992 - 01/1994	1
04491-16211	EL42 W(*66)	01/1994 - 09/1994	1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010	EL42	09/1990 - 09/1994	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010	EL42	09/1990 - 09/1994	2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12040	EL42 *12-1.25PX25.8-19.5	09/1990 - 09/1994	4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90119-09004	EL42 W(*66),NO.2	08/1992 - 09/1994	2
90119-09008	EL42 NO. 2	09/1990 - 08/1992	2
90119-09003	EL42 W(*66),NO.1	08/1992 - 09/1994	2
90119-09007	EL42 NO.1	08/1992 - 09/1994	2
90119-09007	EL42 NO. 1	09/1990 - 08/1992	2
90119-09008	EL42 NO.2	08/1992 - 09/1994	2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90119-09004	EL42 W(*66),NO.2	08/1992 - 09/1994	2
90119-09008	EL42 NO. 2	09/1990 - 08/1992	2
90119-09003	EL42 W(*66),NO.1	08/1992 - 09/1994	2
90119-09007	EL42 NO.1	08/1992 - 09/1994	2
90119-09007	EL42 NO. 1	09/1990 - 08/1992	2
90119-09008	EL42 NO.2	08/1992 - 09/1994	2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-20140	EL42	09/1990 - 09/1994	4
47716-32031	EL42 W(*66)	08/1992 - 09/1994	4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-20140	EL42	09/1990 - 09/1994	4
47717-32031	EL42 W(*66)	08/1992 - 09/1994	4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-12120	EL42 W(*66)	08/1992 - 09/1994	1
47721-16040	EL42	09/1990 - 09/1994	1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-16040	EL42	09/1990 - 09/1994	1
47721-12120	EL42 W(*66)	08/1992 - 09/1994	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-10100	EL42 W(*66)	08/1992 - 09/1994	1
47730-16090	EL42	09/1990 - 09/1994	1
47731 - PISTON, FRONT DISC BRAKE
47731-12150	EL42 W(*66)	08/1992 - 09/1994	2
47731-16040	EL42	09/1990 - 09/1994	2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001	EL42	09/1990 - 09/1994	2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-16011	EL42 W(*66)	08/1992 - 09/1994	2
47744-20050	EL42	09/1990 - 09/1994	2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47742-20050	EL42	09/1990 - 09/1994	2
47742-32040	EL42 W(*66)	08/1992 - 09/1994	2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-20050	EL42	09/1990 - 09/1994	2
47745-32040	EL42 W(*66)	08/1992 - 09/1994	2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-10100	EL42 W(*66)	08/1992 - 09/1994	1
47750-16090	EL42	09/1990 - 09/1994	1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-12030	EL42 W(*66)	08/1992 - 09/1994	2
47769-20010	EL42	09/1990 - 09/1994	2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-20030	EL42	09/1990 - 09/1994	2
47771-32010	EL42 W(*66)	08/1992 - 09/1994	2
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-20010	EL42	09/1990 - 09/1994	2
47779-16010	EL42 W(*66)	08/1992 - 09/1994	2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-10060	EL42	09/1990 - 09/1994	1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90109-06134	EL42	09/1990 - 09/1994	6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-10060	EL42	09/1990 - 09/1994	1

EL42L-ADKBEA (1990)

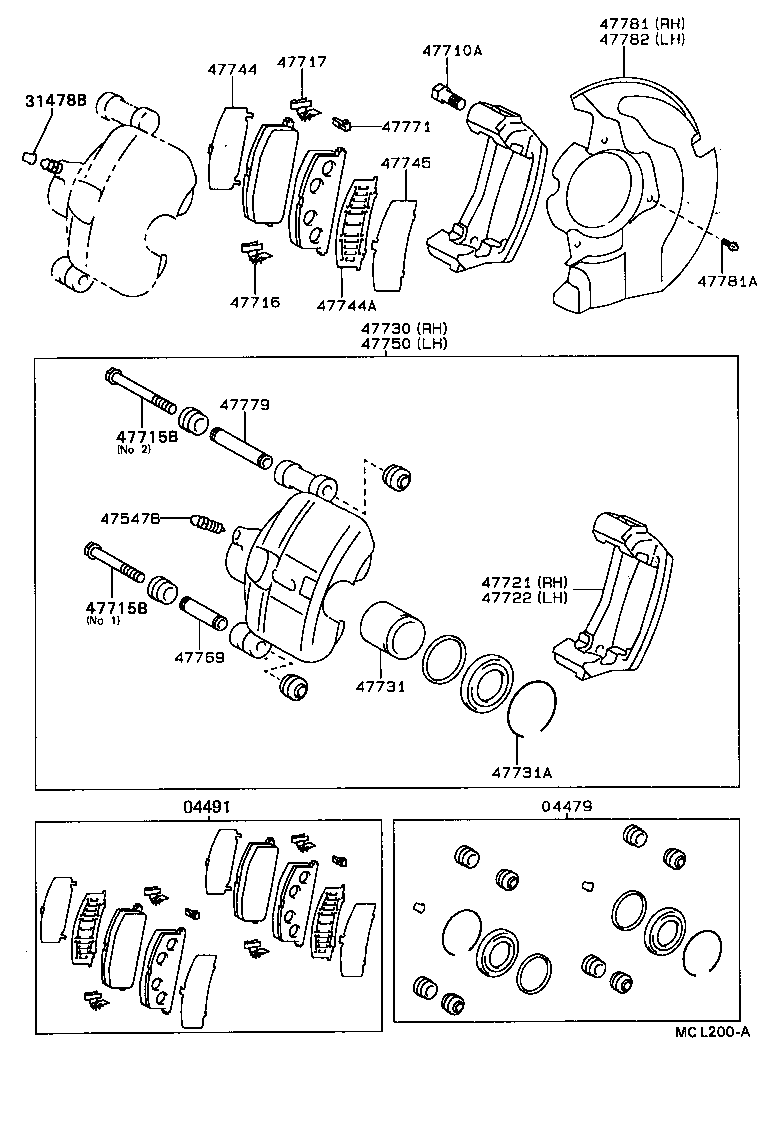

ILLUST NO. 1 OF 2(9009- )

ILLUST NO. 2 OF 2(9401- )

Part Price Details

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-12090	EL42	09/1990 - 09/1994	1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-32110	EL42 W(*66)	09/1990 - 09/1994	1
04945-20040	EL42	09/1990 - 09/1994	1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-32010	EL42 W(*66)	09/1990 - 09/1994	1
04947-20060	EL42	09/1990 - 09/1994	1
