EL42L-ADHREA (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994
Engine 3EE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

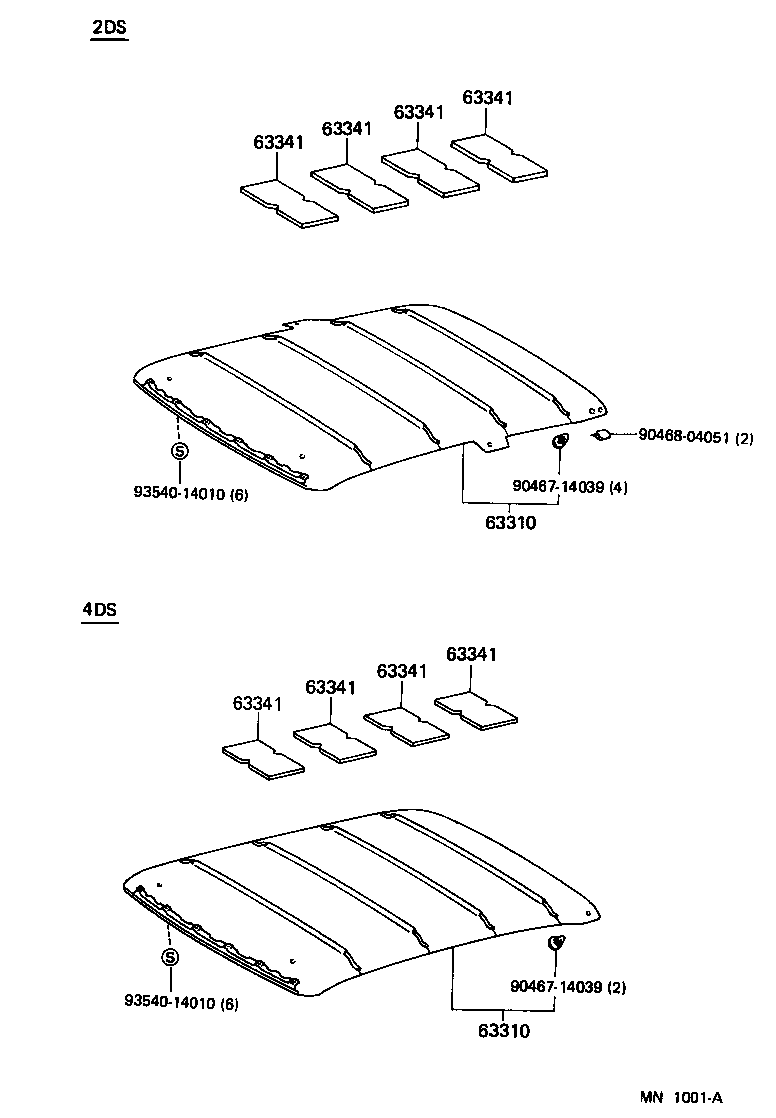

Click highlighted areas on diagram

diagram 63310 63310 63341 63341 63341 63341 63341 63341 63341 63341 9046714039 9046714039 9046804051 9354014010 9354014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1630004

EL42..2DS..DLX..USA

GRAYISH BLUE,TRIM8#

 1
63310-1630003

EL42..2DS..DLX..USA

GRAY,TRIM2#

 1
63310-1633003

EL42..2DS..(DLX,LE)

GRAY,TRIM2#

 1
63310-16330B0

EL42..2DS..DLX

LI.GRAY,TRIM2#

 1
63310-1633004

EL42..2DS..(DLX,LE)

GRAYISH BLUE,TRIM8#

 1
63310-16330J0

EL42..2DS..DLX

LI.BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1630004

EL42..2DS..DLX..USA

GRAYISH BLUE,TRIM8#

 1
63310-1630003

EL42..2DS..DLX..USA

GRAY,TRIM2#

 1
63310-1633003

EL42..2DS..(DLX,LE)

GRAY,TRIM2#

 1
63310-16330B0

EL42..2DS..DLX

LI.GRAY,TRIM2#

 1
63310-1633004

EL42..2DS..(DLX,LE)

GRAYISH BLUE,TRIM8#

 1
63310-16330J0

EL42..2DS..DLX

LI.BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL42..2DS

 3
63341-16010

EL42

 4
63341-16010

EL42

 3
Common parts
90467-14039
90468-04051
93540-14010
