EL42L-ADHREA (1990)
Toyota Tercel
Production
Sep 1990
-
Sep 1994
Engine
3EE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

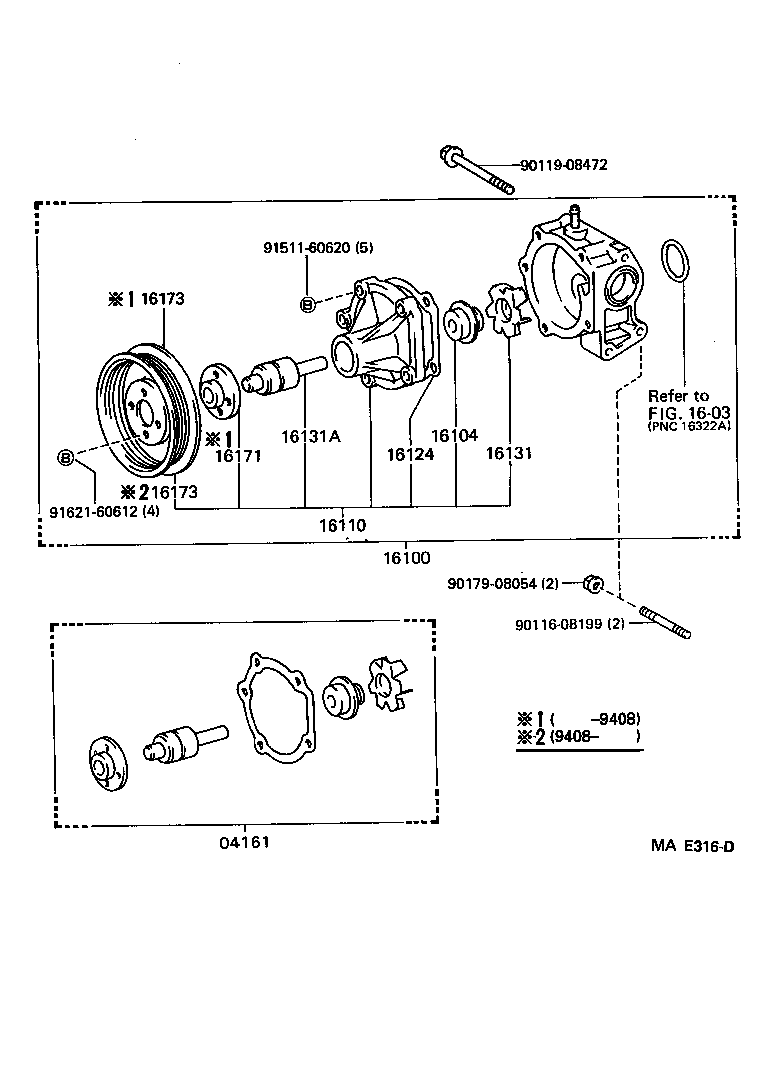

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-10022 |
3EE..EL42 |
1 | ||
| 04161-10021 |
3EE..EL42 |
1 | ||
| 04161-10020 |
3EE..EL42 |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-19225 |
3EE..EL42 |
1 | ||
| 16100-19226 |
3EE..EL42 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-70010 |
3EE..EL42 |
1 | ||
| 16104-16040 |
3EE..EL42 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-19105 |
3EE..EL42 |
1 | ||
| 16110-19106 |
3EE..EL42 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-10013 |
3EE..EL42 |
1 | ||
| 16124-10012 |
3EE..EL42 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-15080 |
3EE..EL42 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90029-36809 |
3EE..EL42 |
1 | ||
| 90369-30064 |
3EE..EL42 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-10012 |
3EE..EL42 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-10013 |
3EE..EL42 |
1 | ||
| 16173-10012 |
3EE..EL42 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-10013 |
3EE..EL42 |
1 | ||
| 16173-10012 |
3EE..EL42 |
1 | ||
| Common parts | ||||
| 90116-08199 | ||||
| 90119-08472 | ||||
| 90179-08054 | ||||
| 91511-60620 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
