EL42L-ADHDEK (1990)

Toyota Tercel

Production Sep 1990 - Aug 1992
Engine 3EE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )2DS

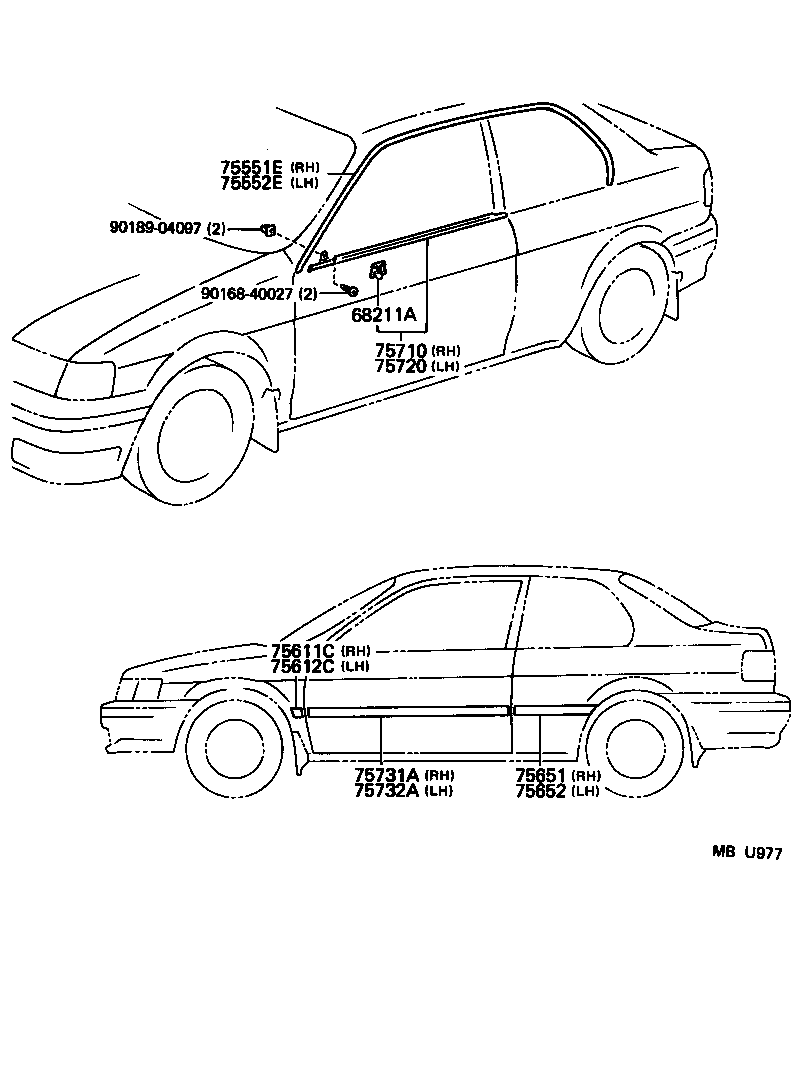

Click highlighted areas on diagram

diagram 68211A 75551E 75552E 75611C 75612C 75651 75652 75710 75720 75731A 75732A 9016840027 9018904097
Part # Description Qty Price
68211A - CLIP, DOOR BELT MOULDING
68212-16010

EL42..2DS..LE;EL42..2DS..DLX..USA

 14
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-16190

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-16190

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-16401

EL42..LE..CND;EL42..(DLX,LE)..USA

 1
75611-16400

EL42..LE..CND;EL42..(DLX,LE)..USA

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-16390

EL42..LE..CND;EL42..(DLX,LE)..USA

 1
75612-16391

EL42..LE..CND;EL42..(DLX,LE)..USA

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-16370

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75651-16371

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-16351

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75652-16350

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-16140

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-16140

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-16671

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75731-16670

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-16671

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
75732-16670

EL42..2DS..LE;EL42..2DS..DLX..USA

 1
Common parts
90168-40027
90189-04097
