AL25RG-ZWFQCQ (1983)

Toyota Tercel

Production Aug 1983 - Jan 1988
Engine 3AC
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)LHD ; (8205- )RHD..ARL,GEN ; (8503- )LHD..GEN

Click highlighted areas on diagram

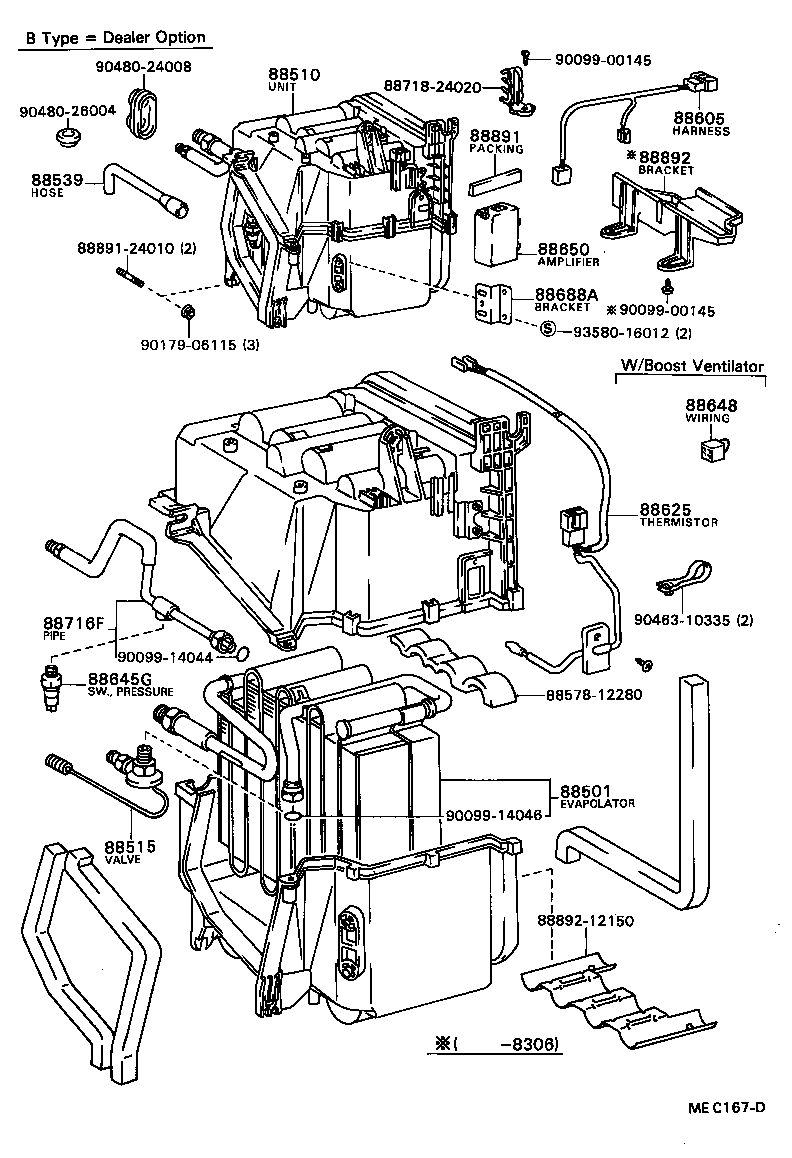

diagram 88501 88510 88515 88539 8857812280 88605 88625 88645G 88648 88650 88688A 88716F 8871824020 88891 8889124010 88892 8889212150 9009900145 9009900145 9009914044 9009914046 9017906115 9046310335 9048024008 9048026004 9358016012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12310

AL25..RHD..(ARL,GEN)

B TYPE

 1
88501-16060

AL20,25..RHD..(ARL,GEN)

 1
88510 - UNIT ASSY, COOLER
88510-16080

AL20,25..RHD..(ARL,GEN)

 1
88510-16080

AL25..RHD..(ARL,GEN)

B TYPE

 1
88510-12650

AL25..RHD..(ARL,GEN)

B TYPE

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

AL20,25..RHD..(ARL,GEN)

 1
88515-16030

AL20,25..RHD..(ARL,GEN)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16020

AL20,25..RHD..(ARL,GEN)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16130

AL25..ARL

 1
88605-16070

AL25..ARL

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12200

AL25..RHD..(ARL,GEN)

B TYPE

 1
88625-16060

AL20,25..RHD..(ARL,GEN)

 1
88645G - SWITCH, PRESSURE
88645-12020

AL20,25..RHD..(ARL,GEN)

 1
88645-12020

AL25..RHD..(ARL,GEN)

B TYPE

 1
88645-10020

AL25..RHD..(ARL,GEN)

B TYPE

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16030

AL25..ARL

B TYPE

 1
88650-16140

AL25..RHD..(ARL,GEN)

B TYPE

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16070

AL20,25..RHD..(ARL,GEN)

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16160

AL20,25..RHD..(ARL,GEN)

 1
88716-16160

AL25..RHD..(ARL,GEN)

 1
88891 - PACKING (FOR COOLER)
88892-16100

AL25..RHD..(ARL,GEN)

B TYPE

 1
88892-16100

AL20,25..RHD..(ARL,GEN)

 1
Common parts
88578-12280
88718-24020
88891-24010
88892-12150
90099-00145
90099-14044
90099-14046
90179-06115
90463-10335
90480-24008
90480-26004
93580-16012
