AL25RG-ZWFDS (1982)

Toyota Tercel

Production Aug 1982 - Jan 1988
Engine 3A
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)AL20,21..EUR ; (8208-8308)AL25..EUR,GEN ; (8308-8408)AL25..EUR ; (8408-

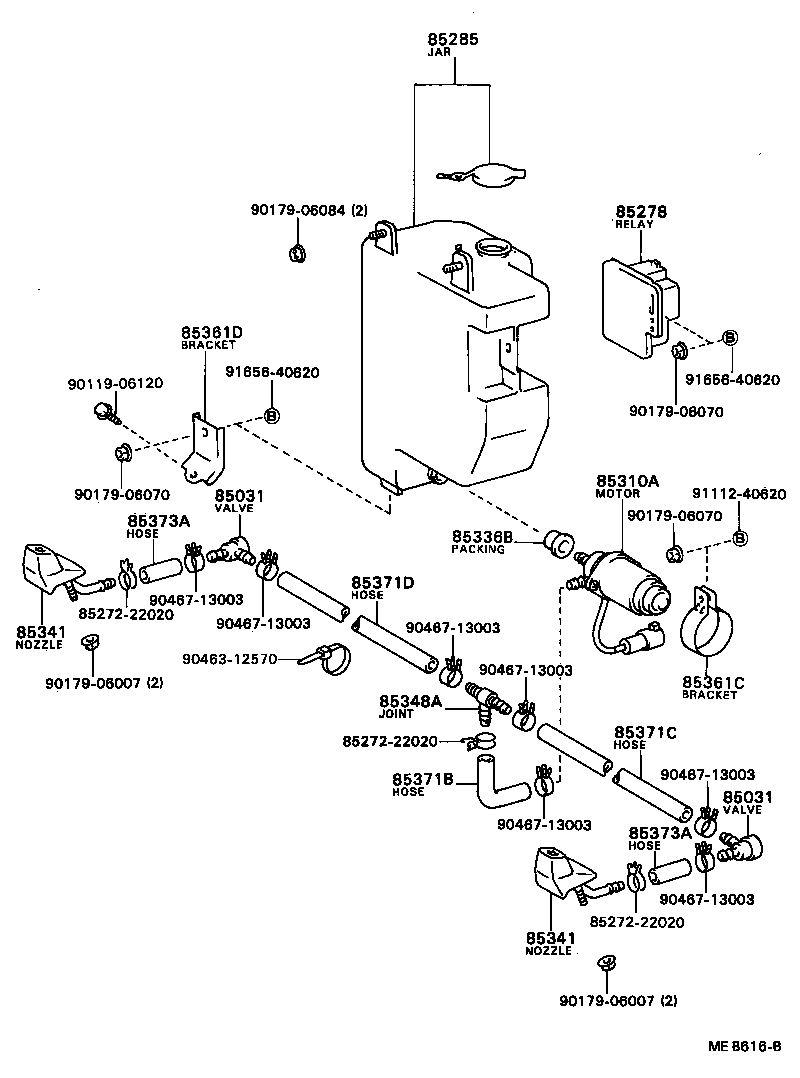

Click highlighted areas on diagram

diagram 85031 85031 8527222020 8527222020 8527222020 85278 85285 85310A 85336B 85341 85341 85348A 85361C 85361D 85371B 85371C 85371D 85373A 85373A 9011906120 9017906007 9017906007 9017906070 9017906070 9017906070 9017906084 9046312570 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9111240620 9165640620 9165640620
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AL25..EUR,GEN

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AL25..EUR,GEN

 2
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-20020

AL25..EUR,GEN

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-16180

AL25..EUR,GEN

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22070

AL25..EUR,GEN

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

AL25..EUR,GEN

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-16030

AL25..EUR,GEN

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-16030

AL25..EUR,GEN

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

AL25..EUR,GEN

 1
85361C - BRACKET, WASHER
85361-16050

AL25..EUR,GEN

 1
85361D - BRACKET, HEADLAMP CLEANER, NO.2
85361-16060

AL25..EUR,GEN

 1
85371B - HOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)
85375-16120

AL25..EUR,GEN

 1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85376-16020

AL25..EUR,GEN

L=260

 1
85371D - HOSE, HEADLAMP CLEANER, NO.2
85377-16020

AL25..EUR,GEN

L=850

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85375-16020

AL25..EUR,GEN

L=40

 2
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85375-16020

AL25..EUR,GEN

L=40

 2
Common parts
85272-22020
90119-06120
90179-06007
90179-06070
90179-06084
90463-12570
90467-13003
91112-40620
91656-40620
