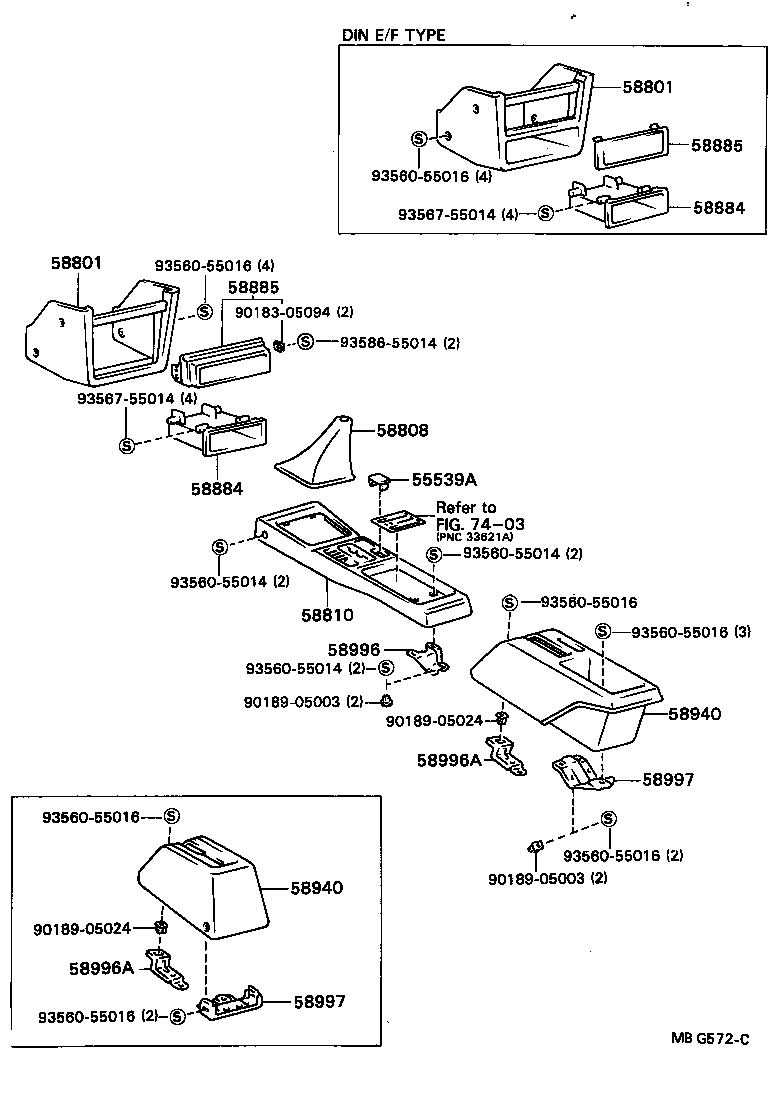

AL25LG-ZWFDSW (1982)
Toyota Tercel
(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 55539-3201016 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 55539-3201011 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 55539-3201013 |
AL25 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55539-3201035 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55539-3201025 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1602003 |
AL20,25..LHD..EUG W/STEREO CASSETTE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1603003 |
AL20,25..EUG GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1602006 |
AL20,25..LHD..EUG W/STEREO CASSETTE,BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1603006 |
AL20,25..EUG BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1604003 |
AL25..EUG DIN A TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604001 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1605003 |
AL25..EUG DIN E/F TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604015 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58813-1605005 |
AL25..EUG DIN E/F TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605001 |
AL25..EUR DIN E/F TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1604005 |
AL25..EUG DIN A TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605015 |
AL25..EUR DIN E/F TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1602003 |
AL20,25..LHD..EUG W/STEREO CASSETTE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1603003 |
AL20,25..EUG GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1602006 |
AL20,25..LHD..EUG W/STEREO CASSETTE,BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1603006 |
AL20,25..EUG BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1604003 |
AL25..EUG DIN A TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604001 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1605003 |
AL25..EUG DIN E/F TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604015 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58813-1605005 |
AL25..EUG DIN E/F TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605001 |
AL25..EUR DIN E/F TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1604005 |
AL25..EUG DIN A TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605015 |
AL25..EUR DIN E/F TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1605005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58808-1603006 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1603015 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1603003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1603005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58808-1603013 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1605003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1603001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1605005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58808-1603006 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1603015 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1603003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1603005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58808-1603013 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1605003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1603001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58802-1601013 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1601015 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58802-1601003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1601005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58802-1601001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58802-1601006 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AL25 |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-14070 |
AL20,25..EUG,FRG |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-14070 |
AL20,25..EUG,FRG |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1603006 |
AL2#..(DLX,STD)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1603005 |
AL25..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1603003 |
AL2#..(DLX,STD)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1603001 |
AL25..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1603015 |
AL25..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58901-1603013 |
AL25..EUR,GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1603006 |
AL2#..(DLX,STD)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1603005 |
AL25..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1603003 |
AL2#..(DLX,STD)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1603001 |
AL25..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1603015 |
AL25..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58901-1603013 |
AL25..EUR,GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-16020 |
AL25 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL2# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16030 |
AL2#..(DLX,STD)..(EUR,GEN) |
1 | ||
| 58997-16030 |
AL25..EUR,GEN |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16030 |
AL2#..(DLX,STD)..(EUR,GEN) |
1 | ||
| 58997-16030 |
AL25..EUR,GEN |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90189-05003 | ||||
| 90189-05024 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 55539-3201016 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 55539-3201011 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 55539-3201013 |
AL25 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 55539-3201035 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55539-3201025 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1602003 |
AL20,25..LHD..EUG W/STEREO CASSETTE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1603003 |
AL20,25..EUG GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1602006 |
AL20,25..LHD..EUG W/STEREO CASSETTE,BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1603006 |
AL20,25..EUG BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1604003 |
AL25..EUG DIN A TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604001 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1605003 |
AL25..EUG DIN E/F TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604015 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58813-1605005 |
AL25..EUG DIN E/F TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605001 |
AL25..EUR DIN E/F TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1604005 |
AL25..EUG DIN A TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605015 |
AL25..EUR DIN E/F TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1602003 |
AL20,25..LHD..EUG W/STEREO CASSETTE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1603003 |
AL20,25..EUG GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1602006 |
AL20,25..LHD..EUG W/STEREO CASSETTE,BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1603006 |
AL20,25..EUG BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1604003 |
AL25..EUG DIN A TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604001 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1605003 |
AL25..EUG DIN E/F TYPE,GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1604015 |
AL25..LHD..(EUG,SDZ) DIN A TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58813-1605005 |
AL25..EUG DIN E/F TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605001 |
AL25..EUR DIN E/F TYPE,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1604005 |
AL25..EUG DIN A TYPE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58813-1605015 |
AL25..EUR DIN E/F TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1605005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58808-1603006 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1603015 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58808-1603003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1603005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58808-1603013 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1605003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58808-1603001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58802-1601013 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1601015 |
AL25 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58802-1601003 |
AL25 GRAY,GRAY,TRIM1# |
1 | ||
| 58802-1601005 |
AL25 BEIGE,BEIGE,TRIM4# |
1 | ||
| 58802-1601001 |
AL25 BLACK,BLACK,TRIM2# |
1 | ||
| 58802-1601006 |
AL25 BROWN,BROWN,TRIM4# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AL25 |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-16010 |
AL25 |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-14070 |
AL20,25..EUG,FRG |
1 | ||
| 58885 - COVER, CONSOLE BOX OPENING | ||||
| 55522-14070 |
AL20,25..EUG,FRG |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1603006 |
AL2#..(DLX,STD)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1603005 |
AL25..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1603003 |
AL2#..(DLX,STD)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1603001 |
AL25..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1603015 |
AL25..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58901-1603013 |
AL25..EUR,GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1603006 |
AL2#..(DLX,STD)..(EUR,GEN) BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1603005 |
AL25..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1603003 |
AL2#..(DLX,STD)..(EUR,GEN) GRAY,GRAY,TRIM1# |
1 | ||
| 58901-1603001 |
AL25..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1603015 |
AL25..EUR,GEN BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 58901-1603013 |
AL25..EUR,GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-16020 |
AL25 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16020 |
AL2# |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16030 |
AL2#..(DLX,STD)..(EUR,GEN) |
1 | ||
| 58997-16030 |
AL25..EUR,GEN |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16030 |
AL2#..(DLX,STD)..(EUR,GEN) |
1 | ||
| 58997-16030 |
AL25..EUR,GEN |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90189-05003 | ||||
| 90189-05024 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93567-55014 | ||||
| 93586-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
