AL25LG-ZWFDSW (1982)
Toyota Tercel
Production
Aug 1982
-
Jan 1988
Engine
3A
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )AL25..LHD

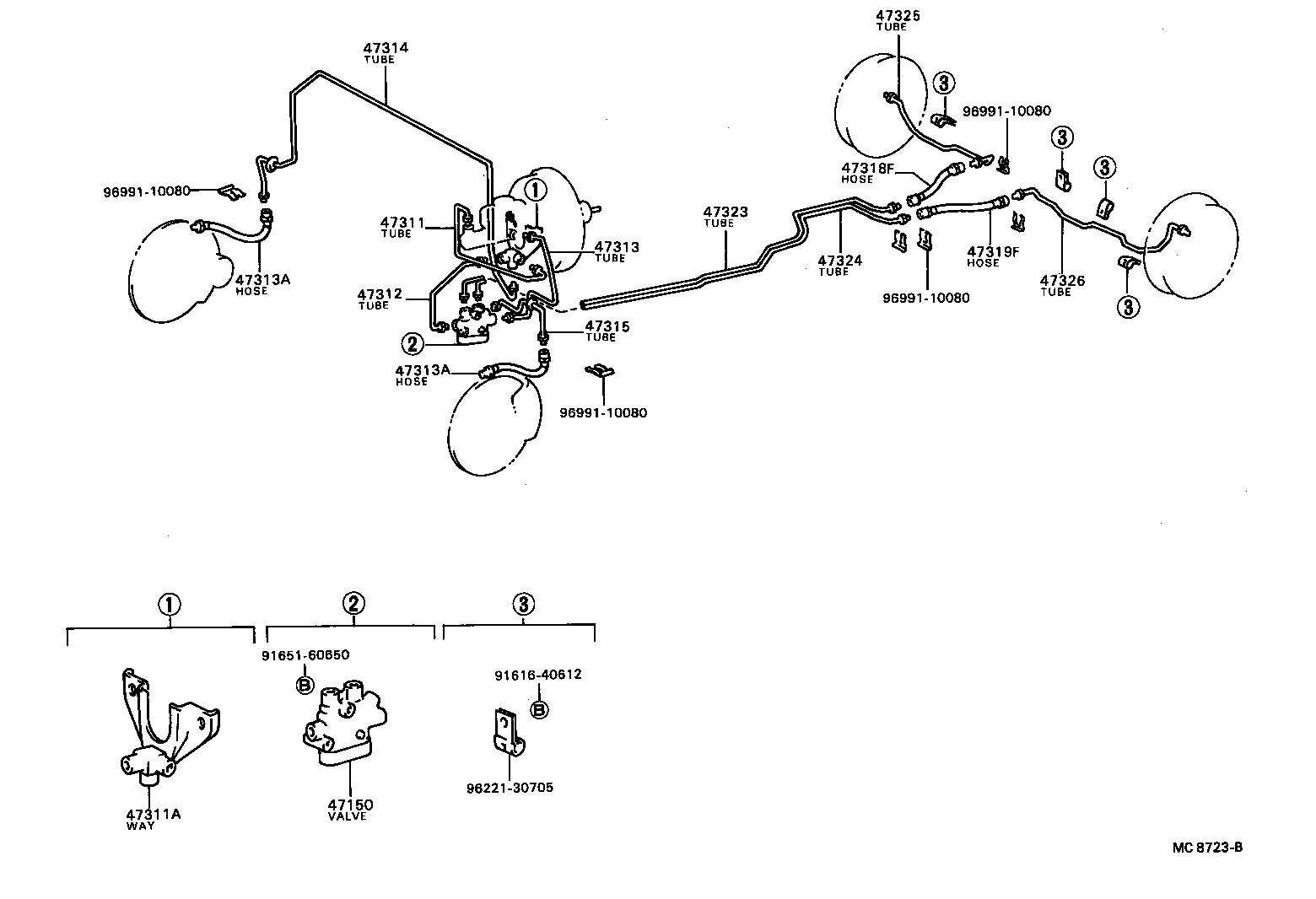

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16020 |
AL2# |
1 | ||
| 47150-16050 |
AL2#..LHD |
1 | ||
| 47150-16050 |
AL25..EUR,GEN |
1 | ||
| 47150-16050 |
AL25 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-16060 |
AL2#..LHD |
1 | ||
| 47311-16062 |
AL25..LHD |
1 | ||
| 47311-16061 |
AL2#..LHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10124 |
AL2#..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16050 |
AL2#..LHD |
1 | ||
| 47312-16052 |
AL2#..LHD |
1 | ||
| 47312-16051 |
AL25..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-16062 |
AL2#..LHD |
1 | ||
| 47313-16060 |
AL2#..LHD |
1 | ||
| 47313-16061 |
AL25..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02437 |
AL2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02437 |
AL2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-16050 |
AL2#..LHD |
1 | ||
| 47314-16051 |
AL25..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-16030 |
AL2#..LHD |
1 | ||
| 47315-16032 |
AL2#..LHD |
1 | ||
| 47315-16031 |
AL25..LHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 96950-33005 |
AL25 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 96950-32605 |
AL25 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16062 |
AL25..LHD |
1 | ||
| 47323-16061 |
AL25..LHD |
1 | ||
| 47323-16060 |
AL25..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-16051 |
AL25..LHD |
1 | ||
| 47324-16052 |
AL25..LHD |
1 | ||
| 47324-16050 |
AL25..LHD |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-16041 |
AL25 |
1 | ||
| 47325-16040 |
AL25 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-16020 |
AL25 |
1 | ||
| 47326-16021 |
AL25 |
1 | ||
| Common parts | ||||
| 91616-40612 | ||||
| 91651-60650 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
