AL25LG-ZWFDCC (1982)
Toyota Tercel
Production
Sep 1982
-
Jan 1988
Engine
3AC
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8408)

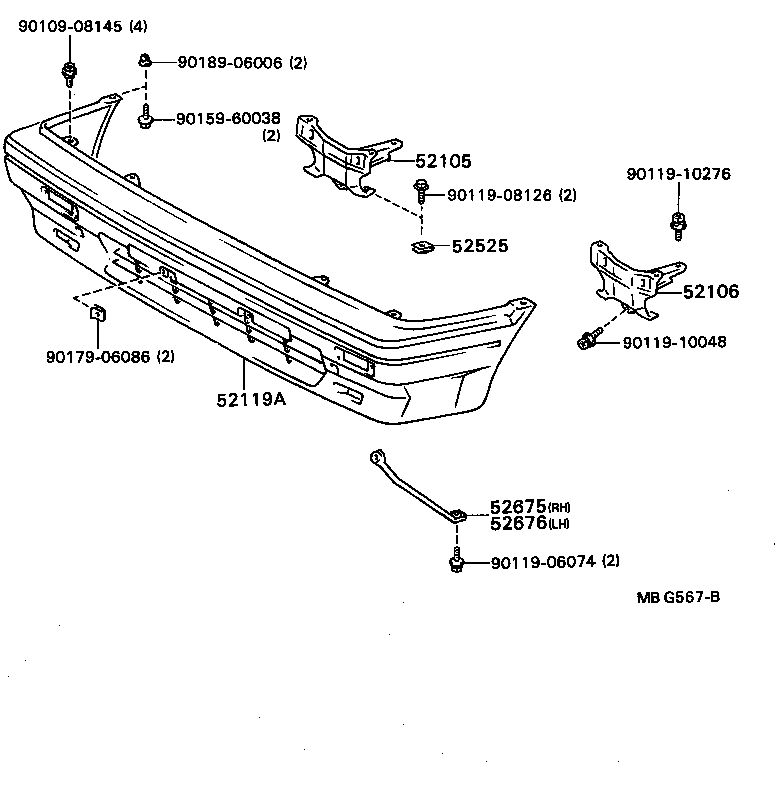

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-16050 |
AL2# |
1 | ||
| 52011-16051 |
AL25 |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52011-16050 |
AL2# |
1 | ||
| 52011-16051 |
AL25 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-16050 |
AL2# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-16050 |
AL2# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-1603003 |
AL2#..EUR,GEN DARK GRAY,GRAY |
1 | ||
| 52119-16140 |
AL25 |
1 | ||
| 52119-1603023 |
AL2# OFF BLACK,GRAY |
1 | ||
| 52119-1604023 |
AL2# W/*HC,OFF BLACK,GRAY |
1 | ||
| 52119-1604003 |
AL2#..EUR,GEN W/*HC,DARK GRAY,GRAY |
1 | ||
| 52119-16160 |
AL25..ARL;AL25..EUG,SDZ W/*HC |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52565-16020 |
AL2# |
4 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52565-16020 |
AL2# |
4 | ||
| 52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH | ||||
| 52675-16010 |
AL2# |
1 | ||
| 52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH | ||||
| 52676-16010 |
AL2# |
1 | ||
| Common parts | ||||
| 90109-08067 | ||||
| 90119-06065 | ||||
| 90119-10117 | ||||
| 90119-10276 | ||||
| 90159-60008 | ||||
| 90179-06086 | ||||
| 90189-06006 | ||||
| 90468-04029 | ||||
| 91655-40825 | ||||
(8408- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-16050 |
AL2# |
1 | ||
| 52011-16051 |
AL25 |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52011-16050 |
AL2# |
1 | ||
| 52011-16051 |
AL25 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-1603003 |
AL2#..EUR,GEN DARK GRAY,GRAY |
1 | ||
| 52119-16140 |
AL25 |
1 | ||
| 52119-1603023 |
AL2# OFF BLACK,GRAY |
1 | ||
| 52119-1604023 |
AL2# W/*HC,OFF BLACK,GRAY |
1 | ||
| 52119-1604003 |
AL2#..EUR,GEN W/*HC,DARK GRAY,GRAY |
1 | ||
| 52119-16160 |
AL25..ARL;AL25..EUG,SDZ W/*HC |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52565-16020 |
AL2# |
4 | ||
| 52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH | ||||
| 52675-16010 |
AL2# |
1 | ||
| 52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH | ||||
| 52676-16010 |
AL2# |
1 | ||
| Common parts | ||||
| 90109-08145 | ||||
| 90119-06074 | ||||
| 90119-08126 | ||||
| 90119-10048 | ||||
| 90119-10276 | ||||
| 90159-60038 | ||||
| 90179-06086 | ||||
| 90189-06006 | ||||
