AL25LG-ZWFDCC (1982)
Toyota Tercel
Production
Sep 1982
-
Jan 1988
Engine
3AC
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8507- )

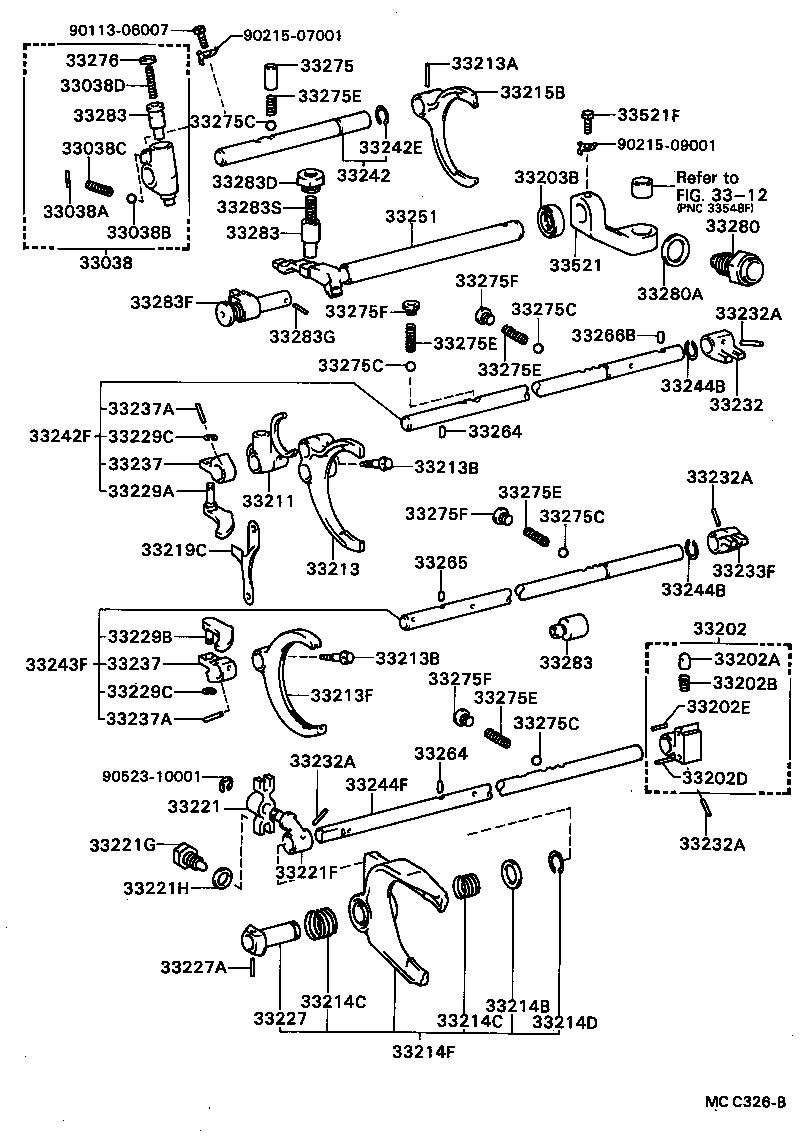

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038 - HEAD SUB-ASSY, GEAR SHIFT, NO.4 | ||||
| 33038-16011 |
AL25 |
1 | ||
| 33038C - SPRING, DETENT BALL(FOR GEAR SHIFT HEAD NO.4) | ||||
| 90501-11020 |
AL25 |
1 | ||
| 33038D - SPRING, COMPRESSION(FOR GEAR SHIFT HEAD NO.4) | ||||
| 90501-12066 |
AL25 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-16030 |
AL25 |
1 | ||
| 33211-16020 |
AL2#..MTM |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-16011 |
AL2#..MTM |
1 | ||
| 33212-16010 |
AL2#..MTM |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05003 |
AL2#..MTM |
4 | ||
| 90254-05003 |
AL25 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06052 |
AL2#..MTM |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06052 |
AL2#..MTM |
3 | ||
| 33213F - FORK, 3RD & 4TH SHIFT | ||||
| 33213-16020 |
AL25 |
1 | ||
| 33213-16011 |
AL2#..MTM |
1 | ||
| 33214B - SPACER(FOR 5TH SHIFT FORK) | ||||
| 90560-17004 |
AL25 |
1 | ||
| 33214C - SPRING, COMPRESSION(FOR 5TH SHIFT FORK) | ||||
| 90501-23085 |
AL25 L=25,WD=2.3 |
1 | ||
| 90501-09074 |
AL25 L=28.7,WD=0.9 |
1 | ||
| 33214C - SPRING, COMPRESSION(FOR 5TH SHIFT FORK) | ||||
| 90501-23085 |
AL25 L=25,WD=2.3 |
1 | ||
| 90501-09074 |
AL25 L=28.7,WD=0.9 |
1 | ||
| 33214D - RING, SHAFT SNAP(FOR 5TH SHIFT FORK) | ||||
| 90520-14002 |
AL25 |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-16011 |
AL2#..5F,6F |
1 | ||
| 33214-19015 |
AL25 |
1 | ||
| 33214-16010 |
AL2#..5F,6F |
1 | ||
| 33215B - FORK, GEAR SHIFT, NO.4 | ||||
| 33215-16020 |
AL25 |
1 | ||
| 33219C - PLATE, RELEASE ARM | ||||
| 33219-16010 |
AL25 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-16020 |
AL25 |
1 | ||
| 33221-16010 |
AL2#..MTM |
1 | ||
| 33221F - HEAD, REVERSE SHIFT ARM | ||||
| 33235-16030 |
AL25 |
1 | ||
| 33235-16010 |
AL2#..MTM |
1 | ||
| 33221G - PIVOT, REVERSE SHIFT ARM | ||||
| 90109-14002 |
AL2#..MTM |
1 | ||
| 33221H - GASKET(FOR PIVOT REVERSE SHIFT ARM) | ||||
| 90430-14003 |
AL2#..MTM |
1 | ||
| 33227 - BUSH, SHIFT FORK GUIDE | ||||
| 33227-16010 |
AL25 |
1 | ||
| 33227A - PIN, SLOTTED SPRING(FOR SHIFT FORK GUIDE BUSH) | ||||
| 90254-05003 |
AL25 |
1 | ||
| 33229A - ARM, RELEASE, NO.1 | ||||
| 33229-16010 |
AL25 |
1 | ||
| 33229B - ARM, RELEASE, NO.2 | ||||
| 33229-16020 |
AL25 |
1 | ||
| 33229C - RING, E(FOR RELEASE ARM) | ||||
| 96160-00400 |
AL25 |
2 | ||
| 33229C - RING, E(FOR RELEASE ARM) | ||||
| 96160-00400 |
AL25 |
2 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-16031 |
AL25 |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05003 |
AL2#..MTM |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05003 |
AL2#..MTM |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05003 |
AL2#..MTM |
4 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05003 |
AL2#..MTM |
4 | ||
| 33237 - HEAD, RELEASE | ||||
| 33237-16010 |
AL25 |
2 | ||
| 33237 - HEAD, RELEASE | ||||
| 33237-16010 |
AL25 |
2 | ||
| 33237A - PIN, SLOTTED SPRING (FOR RELEASE HEAD) | ||||
| 90254-05003 |
AL25 |
2 | ||
| 33237A - PIN, SLOTTED SPRING (FOR RELEASE HEAD) | ||||
| 90254-05003 |
AL25 |
2 | ||
| 33242F - SHAFT , 1ST & 2ND SHIFT FORK | ||||
| 33242-19015 |
AL25 |
1 | ||
| 33242-16031 |
AL25 |
1 | ||
| 33243F - SHAFT , 3RD & 4TH SHIFT FORK | ||||
| 33243-19015 |
AL25 |
1 | ||
| 33243-16040 |
AL25 |
1 | ||
| 33244F - SHAFT,5TH & REVERSE SHIFT | ||||
| 33244-16031 |
AL25 |
1 | ||
| 33244-16040 |
AL25 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05005 |
AL2#..MTM |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05005 |
AL2#..MTM |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05197 |
AL2#..MTM L=9.9,OD=5 |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
AL2#..MTM |
5 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
AL2#..MTM |
5 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
AL2#..MTM |
5 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
AL2#..MTM |
5 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
AL2#..MTM |
5 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-10052 |
AL2#..MTM L=14.64 |
1 | ||
| 90501-13001 |
AL2#..MTM L=21.2 |
4 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-10052 |
AL2#..MTM L=14.64 |
1 | ||
| 90501-13001 |
AL2#..MTM L=21.2 |
4 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-10052 |
AL2#..MTM L=14.64 |
1 | ||
| 90501-13001 |
AL2#..MTM L=21.2 |
4 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-10052 |
AL2#..MTM L=14.64 |
1 | ||
| 90501-13001 |
AL2#..MTM L=21.2 |
4 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-10052 |
AL2#..MTM L=14.64 |
1 | ||
| 90501-13001 |
AL2#..MTM L=21.2 |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-10065 |
AL2#..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-10065 |
AL2#..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-10065 |
AL2#..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-10065 |
AL2#..MTM |
4 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-20085 |
AL2#..MTM |
2 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
AL2#..5F,6F |
1 | ||
| Common parts | ||||
| 90113-06007 | ||||
| 90215-07001 | ||||
| 90215-09001 | ||||
| 90523-10001 | ||||
| Linked diagrams | ||||
| 3312 | ||||
