AL25LG-ZWFDCC (1982)
Toyota Tercel
(8205-8511) ; (8511-8605)3A#..EUR,GEN ; (8605-)3A
(8605- )SWEDEN SPEC

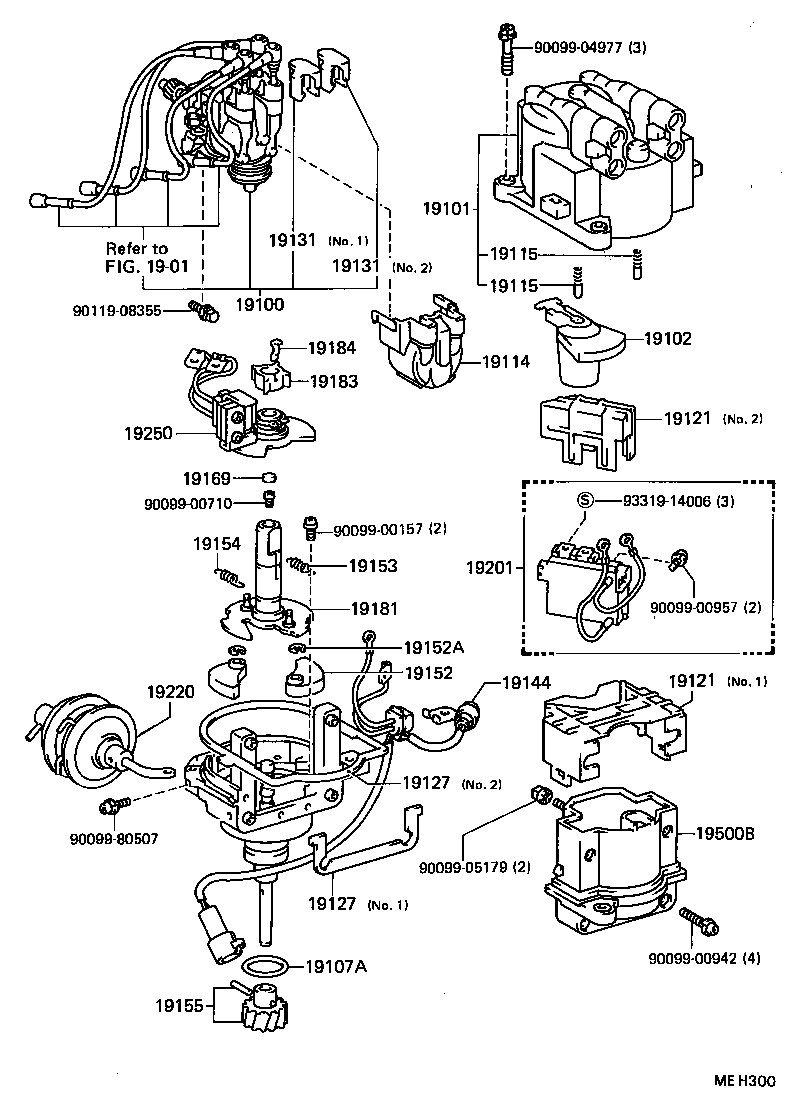

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-15110 |
3AC..AL21,25..SDZ |
1 | ||
| 19030-15060 |
3AC..AL25..EUR |
1 | ||
| 19100-15110 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19101-15010 |
2A,3A#..AL2# |
1 | ||
| 19101-15090 |
3AC..AL25..EUR |
1 | ||
| 19101-15010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19101-15010 |
3A..AL25 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-10020 |
3A#..AL25..EUR |
1 | ||
| 19102-26151 |
3A#..AL25..EUR |
1 | ||
| 19102-26150 |
2A,3A#..AL2#..EUR |
1 | ||
| 19102-63010 |
3AC..AL25..EUR |
1 | ||
| 19102-26151 |
3A..AL25 |
1 | ||
| 19102-26151 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-14010 |
3A..AL25 |
1 | ||
| 19103-14010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19103-14010 |
2A,3A#..AL2# |
1 | ||
| 19103-14010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-14050 |
3A..AL25 |
1 | ||
| 19106-14050 |
2A,3A#..AL2# |
1 | ||
| 19106-14050 |
3A#..AL25..EUR,GEN |
1 | ||
| 19106-14050 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
3A#..AL25 |
1 | ||
| 96710-04030 |
2A,3A#..AL2# |
1 | ||
| 19114 - COVER, WATER PROOF(FOR DISTRIBUTOR) | ||||
| 19114-15020 |
3AC..AL25..EUR COLD SPEC |
1 | ||
| 19114-14010 |
3AC..AL25..SDZ COLD SPEC |
1 | ||
| 19114-14010 |
3AC..AL25..SDZ;3AC..AL21..3DS..DLX COLD SPEC |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
3AC..AL25..EUR |
2 | ||
| 19115-50010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19115-50010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19115-50010 |
2A,3A#..AL2# |
1 | ||
| 19115-63010 |
3AC..AL25..EUR |
2 | ||
| 19115-50010 |
3A..AL25 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
3A#..AL25..EUR,GEN |
1 | ||
| 19121-38030 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19121-15090 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19121-63040 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19121-38030 |
3A..AL25 |
1 | ||
| 19121-38030 |
2A,3A#..AL2# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-14010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19122-14010 |
2A,3A#..AL2# |
1 | ||
| 19122-14010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19122-14010 |
3A..AL25 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19127-15010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19127-15010 |
2A,3A#..AL2# |
1 | ||
| 19127-15010 |
3A..AL25 |
1 | ||
| 19127-63020 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19127-15090 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52076 |
3A#..AL25..EUR,GEN |
1 | ||
| 90099-52076 |
2A,3A#..AL2# |
1 | ||
| 90099-52076 |
3A..AL25 |
1 | ||
| 90099-52076 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-14010 |
2A,3A#..AL2# |
1 | ||
| 19137-14010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19137-14010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19137-14010 |
3A..AL25 |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-14010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19145-14010 |
2A,3A#..AL2# |
1 | ||
| 19145-14010 |
3A..AL25 |
1 | ||
| 19145-14010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2A,3A#..AL2# |
2 | ||
| 19152-44170 |
3A#..AL25..EUR,GEN |
2 | ||
| 19152-15160 |
3AC..AL25 |
2 | ||
| 19152-44170 |
3A..AL25 |
2 | ||
| 19152-44170 |
3AC..AL25..SDZ SWEDEN SPEC |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2A,3A#..AL2# |
2 | ||
| 19152-44170 |
3A#..AL25..EUR,GEN |
2 | ||
| 19152-15160 |
3AC..AL25 |
2 | ||
| 19152-44170 |
3A..AL25 |
2 | ||
| 19152-44170 |
3AC..AL25..SDZ SWEDEN SPEC |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2A,3A#..AL2# |
2 | ||
| 90099-07109 |
3A#..AL25..EUR,GEN |
2 | ||
| 90099-07109 |
3AC..AL25..SDZ SWEDEN SPEC |
2 | ||
| 90099-07122 |
3AC..AL25 |
2 | ||
| 90099-07109 |
3A..AL25 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2A,3A#..AL2# |
2 | ||
| 90099-07109 |
3A#..AL25..EUR,GEN |
2 | ||
| 90099-07109 |
3AC..AL25..SDZ SWEDEN SPEC |
2 | ||
| 90099-07122 |
3AC..AL25 |
2 | ||
| 90099-07109 |
3A..AL25 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-15120 |
3A..AL25..GEN;3AC..AL25..SDZ |
1 | ||
| 19153-15120 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19153-15200 |
3AC..AL25..EUR |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-15120 |
3A..AL25..GEN;3AC..AL25..SDZ |
1 | ||
| 19154-15200 |
3AC..AL25..EUR |
1 | ||
| 19154-15120 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-15021 |
2A,3A#..AL2# |
1 | ||
| 19195-15021 |
3A#..AL25..EUR,GEN |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
2A,3A#..AL2# |
1 | ||
| 19169-63011 |
2A,3A#..AL2# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-15200 |
3AC..AL25..EUR |
1 | ||
| 19220-15140 |
3AC..AL21,25..SDZ |
1 | ||
| 19220-15140 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
2A,3A#..AL2# |
1 | ||
| 90099-07109 |
3A#..AL25..EUR,GEN |
1 | ||
| 90099-07109 |
3A..AL25 |
1 | ||
| 90099-07109 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-24140 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19231-24140 |
3A..AL25 |
1 | ||
| 19231-24140 |
2A,3A#..AL2# |
1 | ||
| 19231-24140 |
3A#..AL25..EUR,GEN |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-02198 | ||||
| 90099-05803 | ||||
| 90119-08355 | ||||
| 94511-00400 | ||||
(8605- )3AC..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-15110 |
3AC..AL21,25..SDZ |
1 | ||
| 19030-15060 |
3AC..AL25..EUR |
1 | ||
| 19100-15110 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19101-15010 |
2A,3A#..AL2# |
1 | ||
| 19101-15090 |
3AC..AL25..EUR |
1 | ||
| 19101-15010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19101-15010 |
3A..AL25 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-10020 |
3A#..AL25..EUR |
1 | ||
| 19102-26151 |
3A#..AL25..EUR |
1 | ||
| 19102-26150 |
2A,3A#..AL2#..EUR |
1 | ||
| 19102-63010 |
3AC..AL25..EUR |
1 | ||
| 19102-26151 |
3A..AL25 |
1 | ||
| 19102-26151 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
3A#..AL25 |
1 | ||
| 96710-04030 |
2A,3A#..AL2# |
1 | ||
| 19114 - COVER, WATER PROOF(FOR DISTRIBUTOR) | ||||
| 19114-15020 |
3AC..AL25..EUR COLD SPEC |
1 | ||
| 19114-14010 |
3AC..AL25..SDZ COLD SPEC |
1 | ||
| 19114-14010 |
3AC..AL25..SDZ;3AC..AL21..3DS..DLX COLD SPEC |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
3AC..AL25..EUR |
2 | ||
| 19115-50010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19115-50010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19115-50010 |
2A,3A#..AL2# |
1 | ||
| 19115-63010 |
3AC..AL25..EUR |
2 | ||
| 19115-50010 |
3A..AL25 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-71010 |
3AC..AL25..EUR |
2 | ||
| 19115-50010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19115-50010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19115-50010 |
2A,3A#..AL2# |
1 | ||
| 19115-63010 |
3AC..AL25..EUR |
2 | ||
| 19115-50010 |
3A..AL25 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
3A#..AL25..EUR,GEN |
1 | ||
| 19121-38030 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19121-15090 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19121-63040 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19121-38030 |
3A..AL25 |
1 | ||
| 19121-38030 |
2A,3A#..AL2# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
3A#..AL25..EUR,GEN |
1 | ||
| 19121-38030 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19121-15090 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19121-63040 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19121-38030 |
3A..AL25 |
1 | ||
| 19121-38030 |
2A,3A#..AL2# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19127-15010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19127-15010 |
2A,3A#..AL2# |
1 | ||
| 19127-15010 |
3A..AL25 |
1 | ||
| 19127-63020 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19127-15090 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
3A#..AL25..EUR,GEN |
1 | ||
| 19127-15010 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19127-15010 |
2A,3A#..AL2# |
1 | ||
| 19127-15010 |
3A..AL25 |
1 | ||
| 19127-63020 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19127-15090 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15020 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19131-15010 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15020 |
3AC..AL25..EUR NO.2 |
1 | ||
| 19131-15010 |
3AC..AL25..EUR NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16011 |
3AC..AL25..EUR |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-44170 |
2A,3A#..AL2# |
2 | ||
| 19152-44170 |
3A#..AL25..EUR,GEN |
2 | ||
| 19152-15160 |
3AC..AL25 |
2 | ||
| 19152-44170 |
3A..AL25 |
2 | ||
| 19152-44170 |
3AC..AL25..SDZ SWEDEN SPEC |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
2A,3A#..AL2# |
2 | ||
| 90099-07109 |
3A#..AL25..EUR,GEN |
2 | ||
| 90099-07109 |
3AC..AL25..SDZ SWEDEN SPEC |
2 | ||
| 90099-07122 |
3AC..AL25 |
2 | ||
| 90099-07109 |
3A..AL25 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-15120 |
3A..AL25..GEN;3AC..AL25..SDZ |
1 | ||
| 19153-15120 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19153-15200 |
3AC..AL25..EUR |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-15120 |
3A..AL25..GEN;3AC..AL25..SDZ |
1 | ||
| 19154-15200 |
3AC..AL25..EUR |
1 | ||
| 19154-15120 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-15021 |
2A,3A#..AL2# |
1 | ||
| 19195-15021 |
3A#..AL25..EUR,GEN |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
2A,3A#..AL2# |
1 | ||
| 19169-63011 |
2A,3A#..AL2# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-15200 |
3AC..AL25..EUR |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-63010 |
3AC..AL25..EUR |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
3AC..AL25 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-16080 |
3AC..AL25..EUR |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-15200 |
3AC..AL25..EUR |
1 | ||
| 19220-15140 |
3AC..AL21,25..SDZ |
1 | ||
| 19220-15140 |
3AC..AL25..SDZ SWEDEN SPEC |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
3AC..AL25 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
3AC..AL25..EUR |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
