AL25LG-ZWFDCC (1982)

Toyota Tercel

Production Sep 1982 - Jan 1988
Engine 3AC
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8511- )3AC..ARL ; (8605- )3AC..EUR

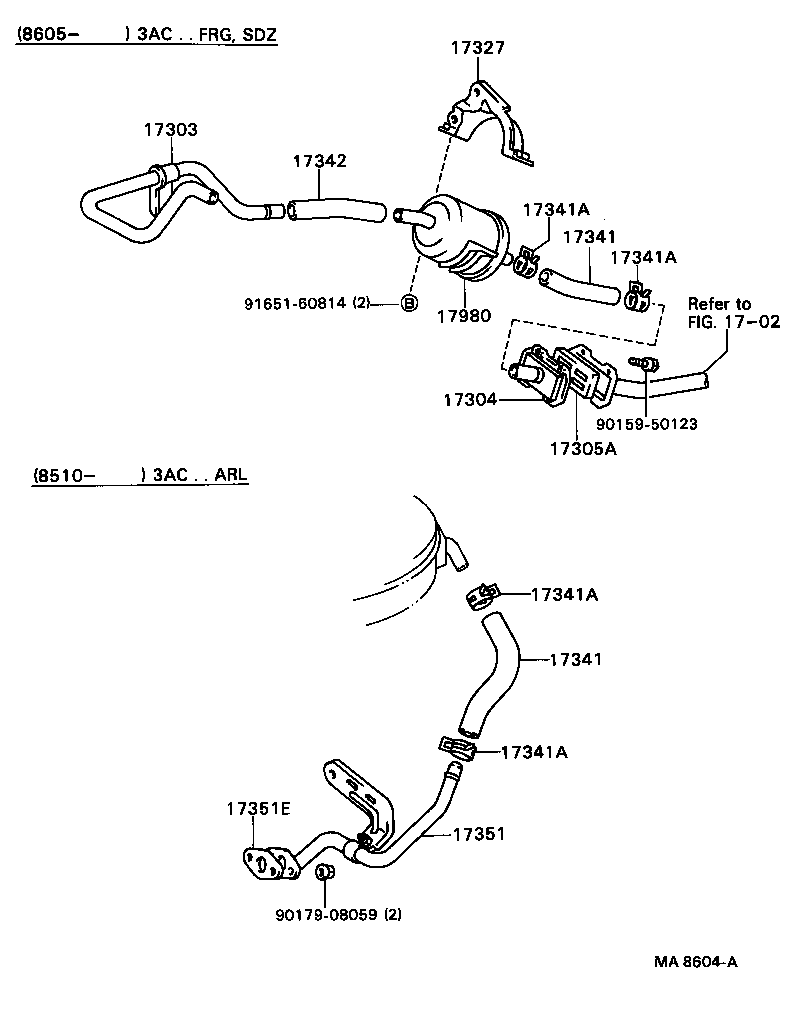

Click highlighted areas on diagram

diagram 1702 17303 17304 17305A 17327 17341 17341 17341A 17341A 17341A 17341A 17342 17351 17351E 17980 9015950123 9017908059 9165160814
Part # Description Qty Price
17303 - PIPE SUB-ASSY, AIR
17303-15040

3AC..AL25..EUR

 1
17304 - TUBE SUB-ASSY, AIR, RH
17304-15010

3AC..AL25..EUR

 1
17305A - VALVE SUB-ASSY, REED
17305-15010

3AC..AL25..EUR

 1
17327 - BRACKET, REED VALVE
17327-15030

3AC..AL25..EUR

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31017

3AC..AL25..EUR

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31017

3AC..AL25..EUR

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3AC..AL25..EUR

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3AC..AL25..EUR

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3AC..AL25..EUR

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3AC..AL25..EUR

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
90445-15007

3AC..AL25..EUR

 1
17980 - FILTER ASSY, AIR SUCTION
17980-15040

3AC..AL25..EUR

 1
Common parts
90159-50123
90179-08059
91651-60814
Linked diagrams
1702
