AL20R-ZHMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )RHD

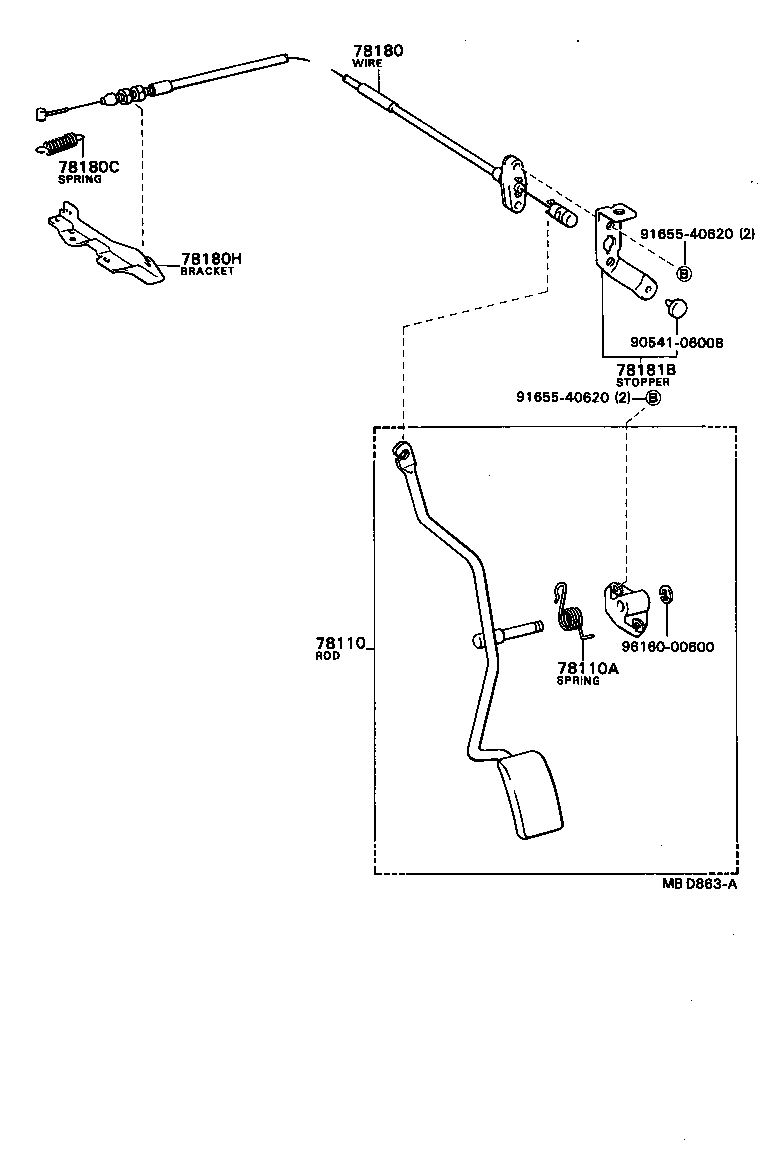

Click highlighted areas on diagram

diagram 78110 78110A 78180 78180C 78180H 78181B 9054106008 9165540620 9165540620 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-16030

AL20,25..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18030

AL20,25..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-16050

AL20,25..RHD

CHUHATSU

 1
78180-16080

AL20,25..RHD

NIHON CABLE

 1
78181B - STOPPER, ACCELERATOR IDLE ADJUSTING
78181-16020

AL20,25..RHD

 1
Common parts
90541-06008
91655-40620
96160-00600
