AL20R-ZHMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )RHD

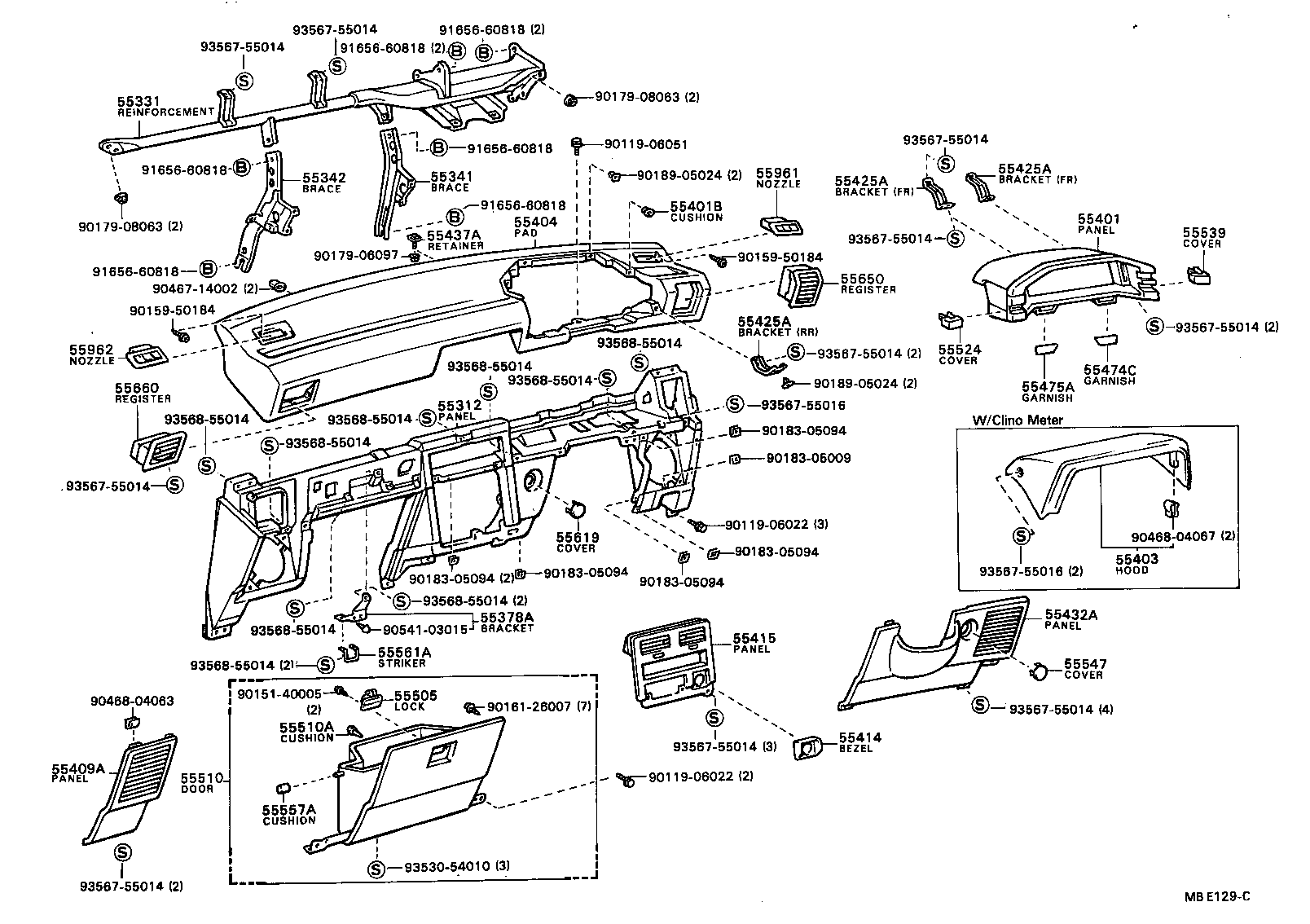

Click highlighted areas on diagram

diagram 55312 55331 55341 55342 55378A 55401 55401B 55403 55404 55409A 55414 55415 55425A 55425A 55425A 55432A 55437A 55474C 55475A 55505 55510 55510A 55524 55539 55547 55557A 55561A 55619 55650 55660 55961 55962 9011906022 9011906022 9011906051 9015140005 9015950184 9015950184 9016126007 9017906097 9017908063 9017908063 9018305009 9018305094 9018305094 9018305094 9018305094 9018305094 9018905024 9018905024 9046714002 9046804063 9046804067 9054103015 9165660818 9165660818 9165660818 9165660818 9165660818 9165660818 9353054010 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755016 9356755016 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55312 - PANEL, INSTRUMENT, LOWER
55312-1601003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55312-1601002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55312-1601006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-16010

AL20,25..RHD

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55306-16030

AL20,25..RHD

 1
55342 - BRACE, INSTRUMENT PANEL, NO.2
55307-16030

AL20,25..RHD

 1
55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-16010

AL20,25..RHD

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-1605006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55404-1605003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55404-1605002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-16010

AL2#

 2
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-1604006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55401-1604003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55401-1604002

AL20..RHD

DARK WINE,DARK WINE,TRIM3#

 1
55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
55409-1601006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55409-1601002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55409-1601003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-16030

AL2#

 1
55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55405-16010

AL20,25..RHD

 1
55425A - BRACKET, METER HOOD SET
55425-16030

AL2#

FR

 2
55426-16030

AL2#

RR

 2
55425A - BRACKET, METER HOOD SET
55425-16030

AL2#

FR

 2
55426-16030

AL2#

RR

 2
55425A - BRACKET, METER HOOD SET
55425-16030

AL2#

FR

 2
55426-16030

AL2#

RR

 2
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-1602003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55432-1602006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55432-1602002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55437-16020

AL2#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55474-16010

AL20,25..RHD..(ARL,EUR)

W/CLOCK KNOB HOLE

 1
55474-16030

AL2#

W/O KNOB HOLE

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55475-16030

AL2#

W/O KNOB HOLE

 1
55475-16010

AL20,25..RHD..(ARL,EUR)

W/TRIP KNOB HOLE

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55560-1601002

AL20,21

DARK WINE,RED/MAROON,TRIM3#

 1
55560-1601003

AL2#

GRAY,GRAY,TRIM1#

 1
55560-1601006

AL2#

BROWN,BROWN,TRIM4#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1604006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55550-1604003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55550-1604002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

AL2#

 2
55524 - COVER, SWITCH BACE HOLE
55524-16010

AL2#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-1601006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55547-1601003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55547-1601002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-16010

AL2#

 2
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-32010

AL2#..EUR,GEN

 1
55619 - COVER, SWITCH HOLE
55617-1001002

AL20,21

DARK WINE,RED/MAROON,TRIM3#

 1
55617-1001036

AL2#

BROWN,BROWN,TRIM4#

 1
55617-1001003

AL2#

GRAY,GRAY,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1603006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55650-1603002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55650-1603003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-1601002

AL20..RHD

DARK WINE,RED/MAROON,TRIM3#

 1
55660-1601006

AL20,25..RHD

BROWN,BROWN,TRIM4#

 1
55660-1601003

AL20,25..RHD

GRAY,GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-1601003

AL2#

GRAY,GRAY,TRIM1#

 1
55961-1601002

AL20,21

DARK WINE,RED/MAROON,TRIM3#

 1
55961-1601006

AL2#

BROWN,BROWN,TRIM4#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-1601006

AL2#

BROWN,BROWN,TRIM4#

 1
55962-1601003

AL2#

GRAY,GRAY,TRIM1#

 1
55962-1601002

AL20,21

DARK WINE,RED/MAROON,TRIM3#

 1
Common parts
90119-06022
90119-06051
90151-40005
90159-50184
90161-26007
90179-06097
90179-08063
90183-05009
90183-05094
90189-05024
90467-14002
90468-04063
90468-04067
90541-03015
91656-60818
93530-54010
93567-55014
93567-55016
93568-55014
