AL20R-ZHMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )RHD..MTM

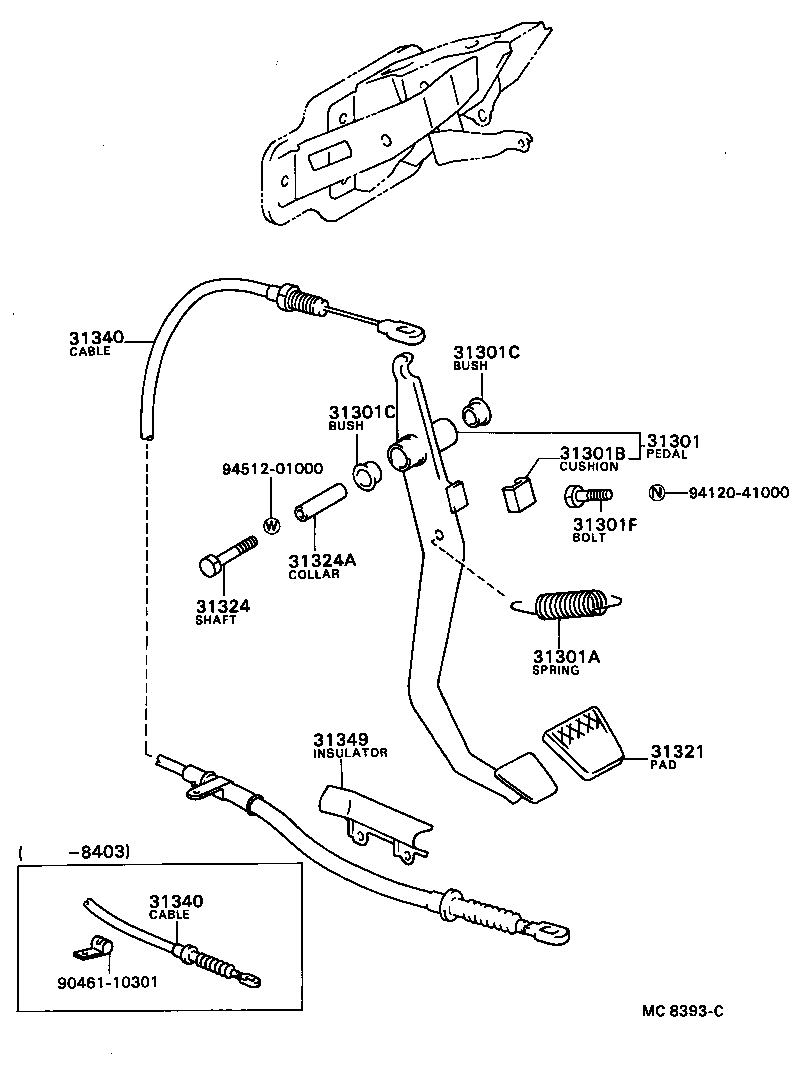

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31340 31349 9046110301 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16040

AL20,25..RHD..MTM..(EUR,GEN)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14040

AL2#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

AL2#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AL2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

AL2#..MTM

 2
31321 - PAD, CLUTCH PEDAL
31321-12030

AL2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AL20,25..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

AL20,25..RHD..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-16100

AL20,25..RHD..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-16100

AL20,25..RHD..MTM

 1
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-16020

AL20,25..RHD..MTM

 1
Common parts
90461-10301
94120-41000
94512-01000
