AL20R-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

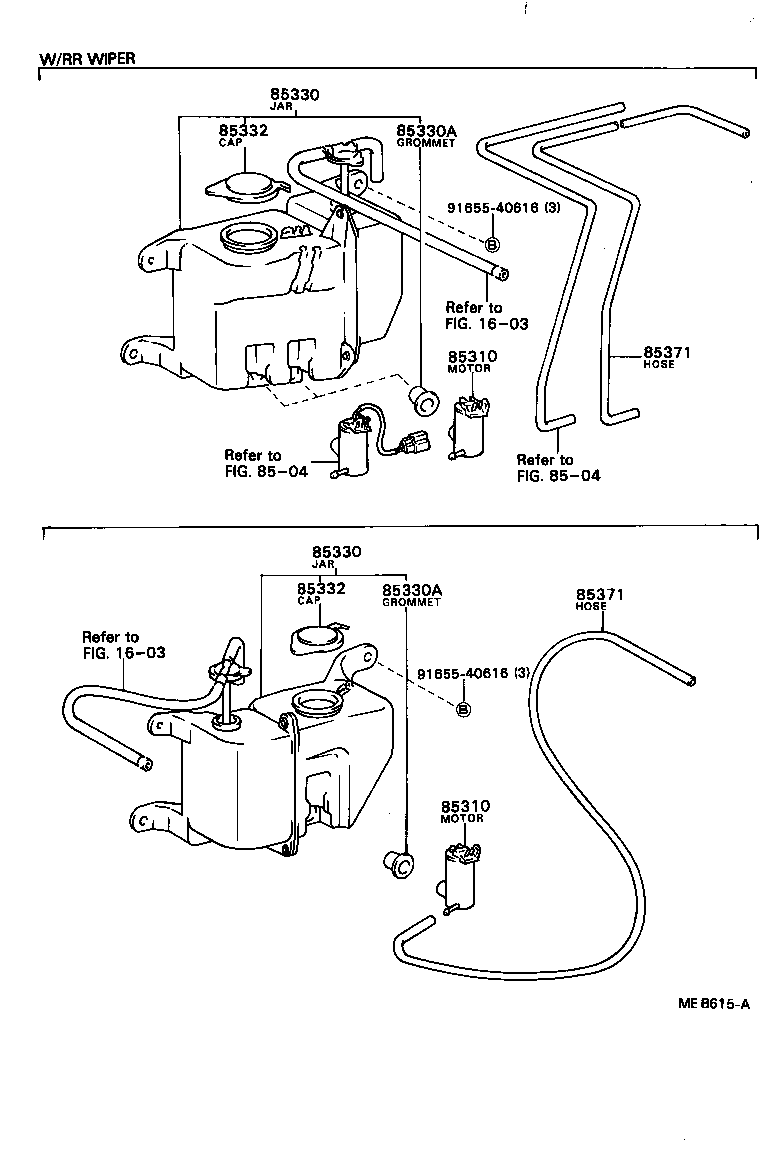

Click highlighted areas on diagram

diagram 1603 1603 8504 8504 85310 85310 85330 85330 85330A 85330A 85332 85332 85371 85371 9165540616 9165540616
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AL2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

AL2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-16130

AL2#

W/RR WIPER

 1
85330-16100

AL20,25..ARL,GEN

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-16130

AL2#

W/RR WIPER

 1
85330-16100

AL20,25..ARL,GEN

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AL2#

 2
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AL2#

 2
85332 - CAP, WINDSHIELD WASHER JAR
85332-16010

AL2#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-16010

AL2#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

AL2#

*H,L=950

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

AL2#

*H,L=950

 1
Common parts
91655-40616
Linked diagrams
1603
8504

(8205- )

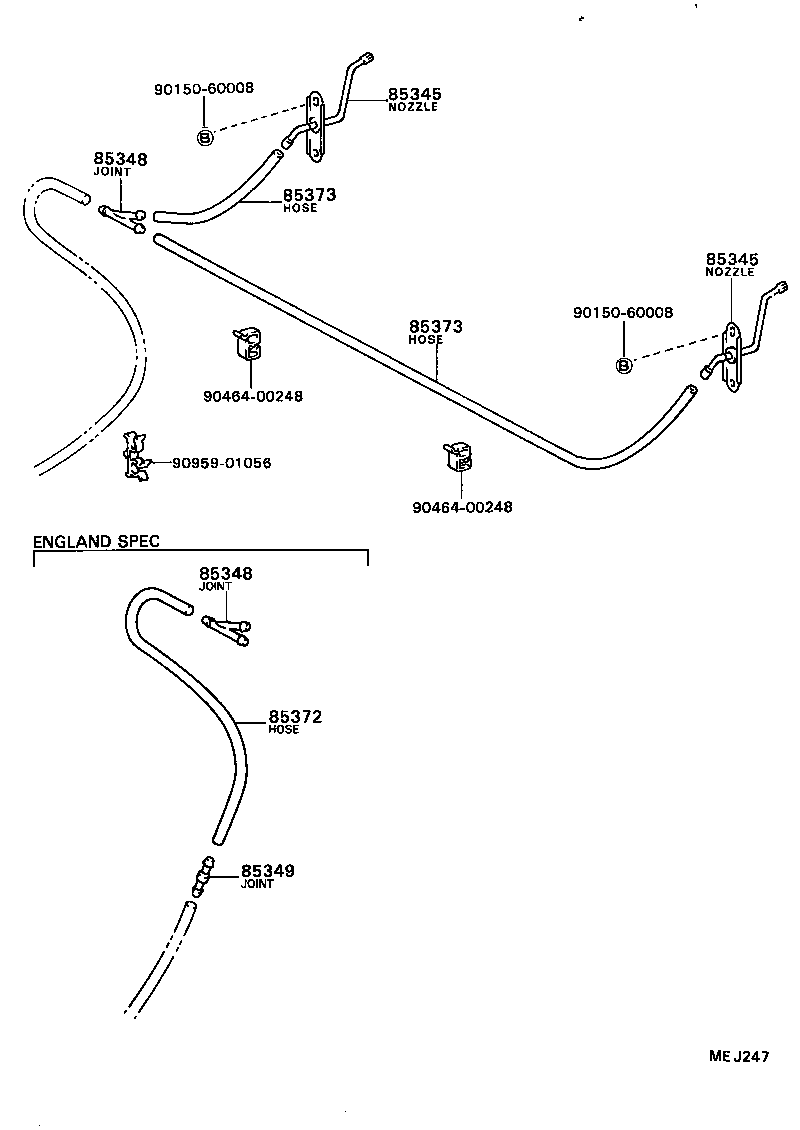

Click highlighted areas on diagram

diagram 85345 85345 85348 85348 85349 85372 85373 85373 9015060008 9015060008 9046400248 9046400248 9095901056
Part # Description Qty Price
85345 - NOZZLE, WINDSHIELD WASHER
85341-16050

AL2#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-16050

AL2#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AL2#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

AL2#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AL2#

*H,L=600

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

AL2#

*H,L=600

 2
Common parts
90150-60008
90464-00248
90959-01056
