AL20R-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)AL20,21

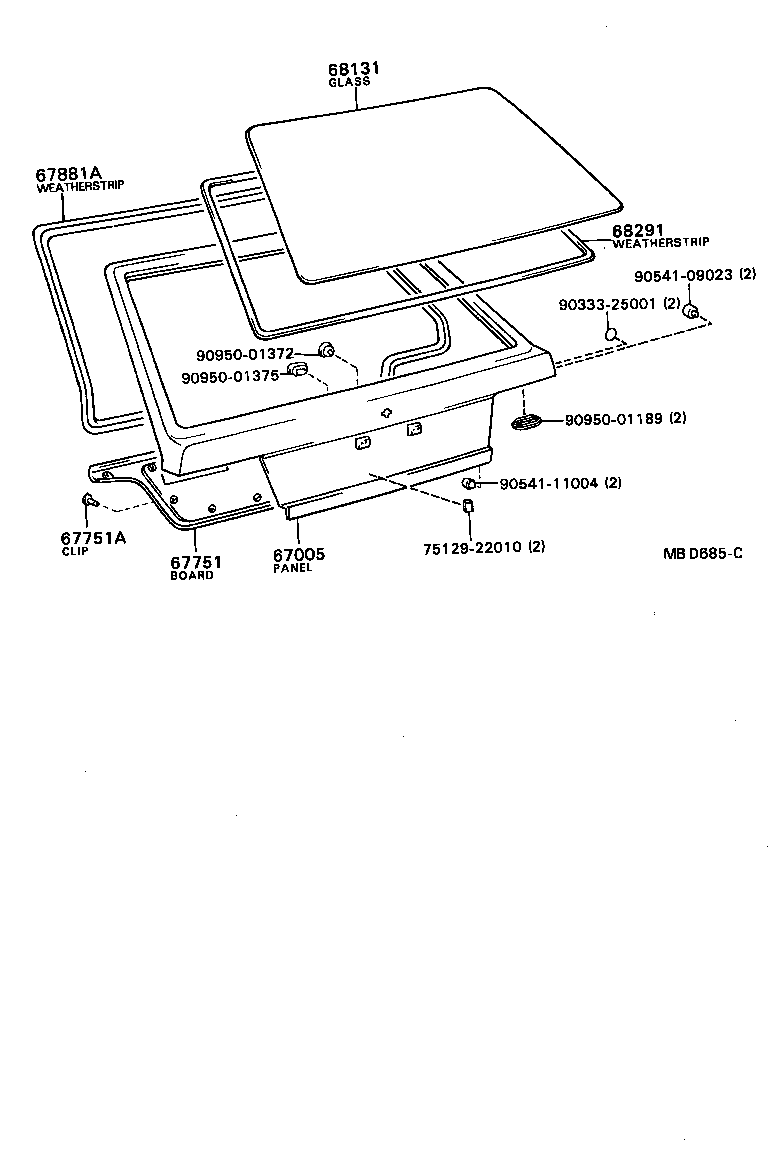

Click highlighted areas on diagram

diagram 67005 67751 67751A 67881A 68131 68291 7512922010 9033325001 9054109023 9054111004 9095001189 9095001372 9095001375
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-16030

AL20,21

 1
67005-16040

AL20,21

W/RR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
67751-1602003

AL20,21

GRAY,GRAY,TRIM1#

 1
67751-1602006

AL20,21

BROWN,BROWN,TRIM4#

 1
67751-1602002

AL20,21

DARK WINE,DARK WINE,TRIM3#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0601713

AL2#

GRAY,GRAY,TRIM1#

 13
90467-0601702

AL20,21

DARK WINE,DARK WINE,TRIM3#

 1
90467-0601726

AL2#

BROWN,BROWN,TRIM4#

 13
67881A - WEATHERSTRIP, BACK DOOR
67881-16040

AL2#

 1
68131 - GLASS, BACK DOOR
68131-16100

AL20..GEN

*TT,T=3.5

 1
68131-16130

AL20,21..DLX,GL

*EHTT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-16010

AL20,21

 1
Common parts
75129-22010
90333-25001
90541-09023
90541-11004
90950-01189
90950-01372
90950-01375
