AL20R-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)

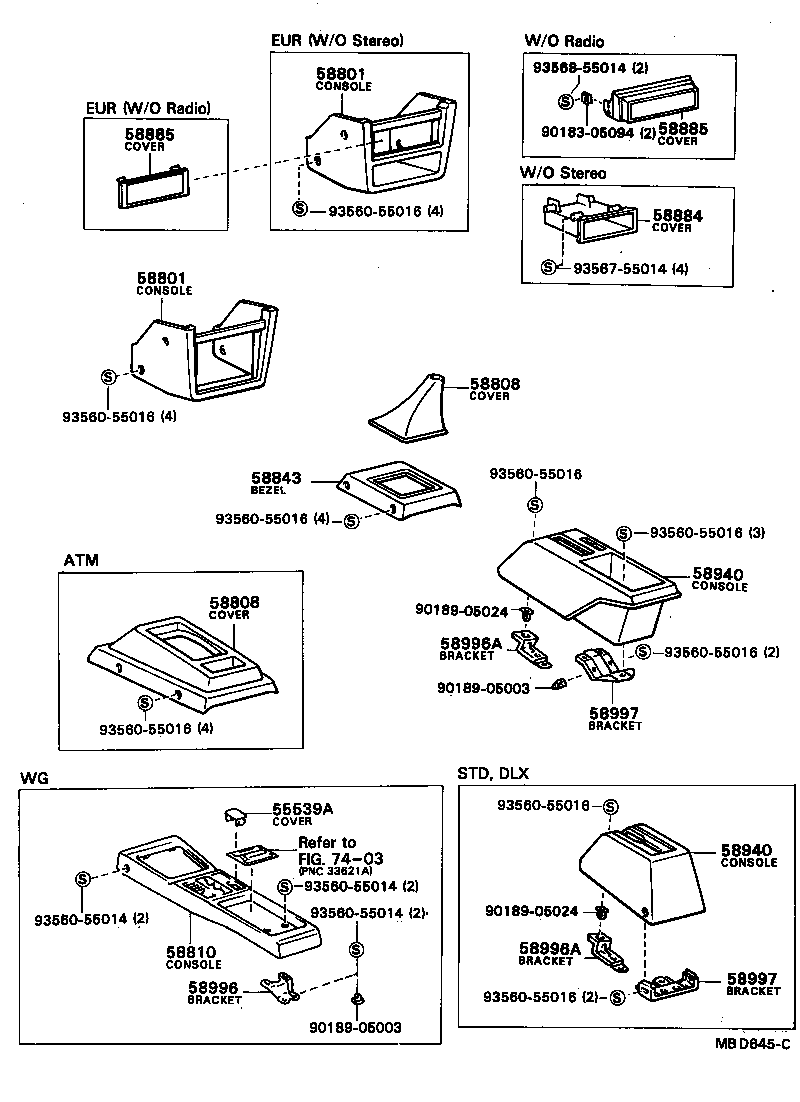

Click highlighted areas on diagram

diagram 55539A 58801 58801 58808 58808 58810 58843 58884 58885 58885 58940 58940 58996 58996A 58996A 58997 58997 7403 9018305094 9018905003 9018905003 9018905024 9018905024 9356055014 9356055014 9356055014 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356755014 9356855014
Part # Description Qty Price
58801 - CONSOLE SUB-ASSY, UPPER
58813-1602003

AL21,25..SDZ;AL20,25..ARL,GEN

GRAY,GRAY,TRIM1#

 1
58813-1602002

AL21;AL20..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
58813-1602006

AL21,25..SDZ;AL20,25..ARL,GEN

BROWN,BROWN,TRIM4#

 1
58801 - CONSOLE SUB-ASSY, UPPER
58813-1602003

AL21,25..SDZ;AL20,25..ARL,GEN

GRAY,GRAY,TRIM1#

 1
58813-1602002

AL21;AL20..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
58813-1602006

AL21,25..SDZ;AL20,25..ARL,GEN

BROWN,BROWN,TRIM4#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58841-1604003

AL20,21..3FC

GRAY,GRAY,TRIM1#

 1
58841-1604002

AL20,21..3FC

DARK WINE,RED/MAROON,TRIM3#

 1
58841-1604006

AL20,21..3FC

BROWN,BROWN,TRIM4#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58841-1604003

AL20,21..3FC

GRAY,GRAY,TRIM1#

 1
58841-1604002

AL20,21..3FC

DARK WINE,RED/MAROON,TRIM3#

 1
58841-1604006

AL20,21..3FC

BROWN,BROWN,TRIM4#

 1
58884 - COVER, STEREO OPENING
55521-16010

AL21,25..SDZ;AL20,25..ARL,GEN

 1
58885 - COVER, CONSOLE BOX OPENING
55522-14080

AL20,25..GEN;AL21,25..SDZ

 1
58885 - COVER, CONSOLE BOX OPENING
55522-14080

AL20,25..GEN;AL21,25..SDZ

 1
58940 - CONSOLE ASSY, REAR
58901-1603006

AL2#..(DLX,STD)..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
58901-1603002

AL20,21..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
58901-1603003

AL2#..(DLX,STD)..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
58940 - CONSOLE ASSY, REAR
58901-1603006

AL2#..(DLX,STD)..(EUR,GEN)

BROWN,BROWN,TRIM4#

 1
58901-1603002

AL20,21..DLX,STD

DARK WINE,RED/MAROON,TRIM3#

 1
58901-1603003

AL2#..(DLX,STD)..(EUR,GEN)

GRAY,GRAY,TRIM1#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-16020

AL2#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-16020

AL2#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-16030

AL2#..(DLX,STD)..(EUR,GEN)

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-16030

AL2#..(DLX,STD)..(EUR,GEN)

 1
Common parts
90183-05094
90189-05003
90189-05024
93560-55014
93560-55016
93567-55014
93568-55014
Linked diagrams
7403
