AL20R-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

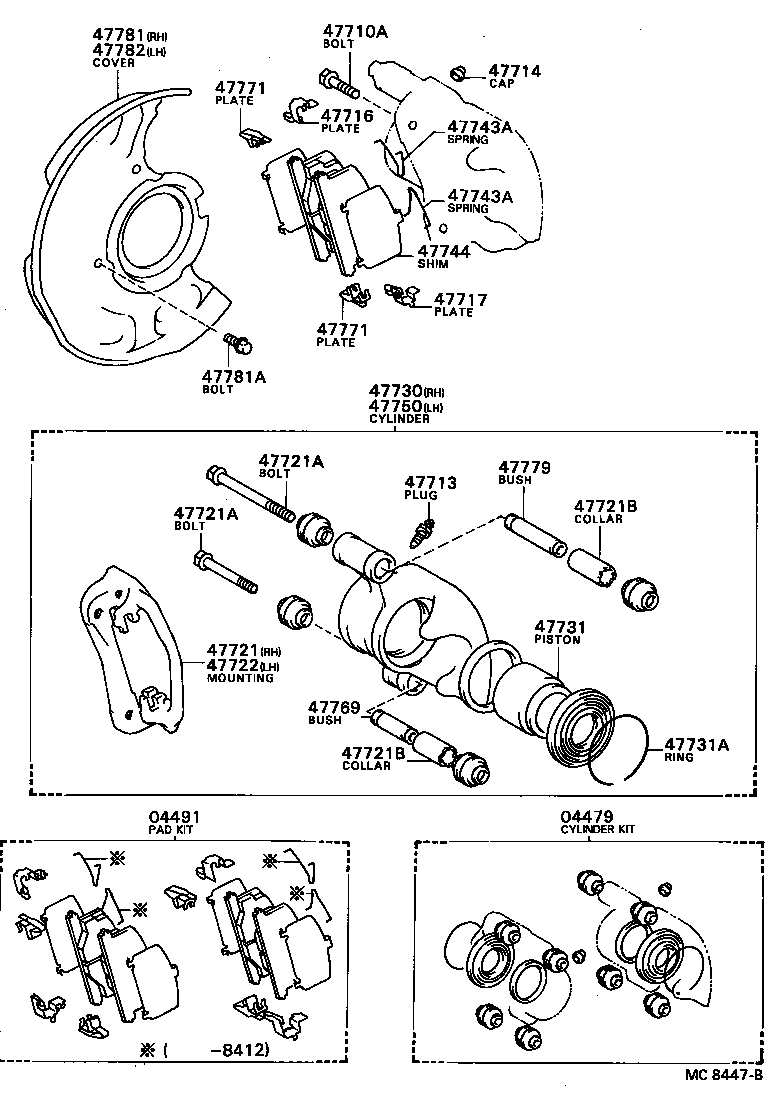

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47716 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47743A 47743A 47744 47750 47769 47771 47771 47779 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-16020

AL2#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-16040

AL2#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12040

AL2#

*12-1.25PX25.8-19.5

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AL2#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AL2#

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-32010

AL2#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-32010

AL2#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-16010

AL2#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-09004

AL2#

*9-1.25PX91-25,*9-1.25PX93-25

 2
90119-09003

AL2#

*9-1.25PX71-25,*9-1.25PX73-25

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-09004

AL2#

*9-1.25PX91-25,*9-1.25PX93-25

 2
90119-09003

AL2#

*9-1.25PX71-25,*9-1.25PX73-25

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-15005

AL2#

L=32

 2
90387-15004

AL2#

L=12

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-15005

AL2#

L=32

 2
90387-15004

AL2#

L=12

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-16010

AL2#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-16040

AL2#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-16020

AL2#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

AL2#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-16010

AL2#

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-16010

AL2#

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-32010

AL2#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-16040

AL2#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-16010

AL2#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-32010

AL2#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-32010

AL2#

 4
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-16010

AL2#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-16030

AL2#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06196

AL2#

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-16030

AL2#

 1

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-16070

AL2#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-32220

AL2#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-32060

AL2#

 1
