AL20R-ZGMNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

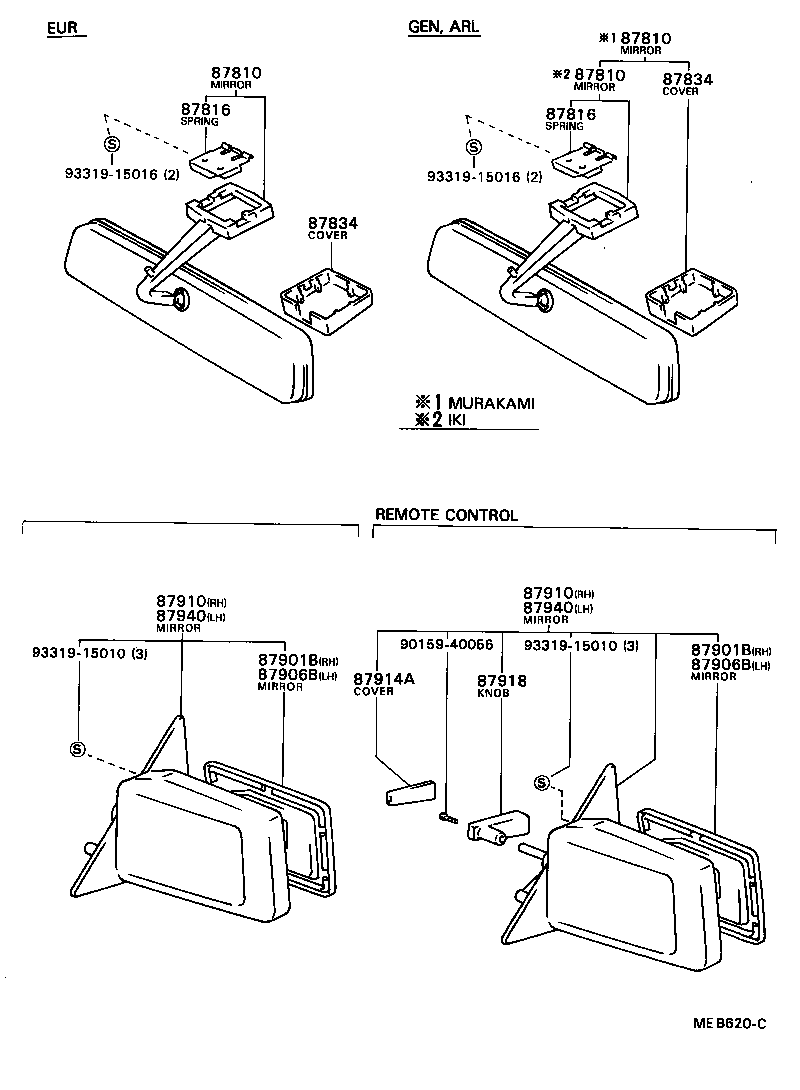

Click highlighted areas on diagram

diagram 87810 87810 87810 87816 87816 87834 87834 87901B 87901B 87906B 87906B 87910 87910 87914A 87918 87940 87940 9015940056 9331915010 9331915010 9331915016 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2216118

AL2#..(DLX,GL)..EUR

IVORY,IVORY,TRIM1#,3#,4#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2216118

AL2#..(DLX,GL)..EUR

IVORY,IVORY,TRIM1#,3#,4#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2216118

AL2#..(DLX,GL)..EUR

IVORY,IVORY,TRIM1#,3#,4#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

AL2#

IVORY,IVORY,TRIM1#,3#,4#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

AL2#

IVORY,IVORY,TRIM1#,3#,4#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87908-16030

AL2#..EUR,GEN

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87908-16030

AL2#..EUR,GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87909-16030

AL2#..EUR,GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87909-16030

AL2#..EUR,GEN

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16150

AL20..3DS..RHD

REMOTE CONTROL

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16150

AL20..3DS..RHD

REMOTE CONTROL

 1
87914A - COVER, OUTER MIRROR KNOB
87914-16010

AL2#..DLX,GL,SR5

 2
87918 - KNOB, CONTROL OUTER MIRROR
87918-14040

AL2#..DLX,GL,SR5

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16210

AL20..3DS..RHD

REMOTE CONTROL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16210

AL20..3DS..RHD

REMOTE CONTROL

 1
Common parts
90159-40056
93319-15010
93319-15016
