AL20R-ZGMNSW (1982)
Toyota Tercel
(8205- )DLX,GL,STD

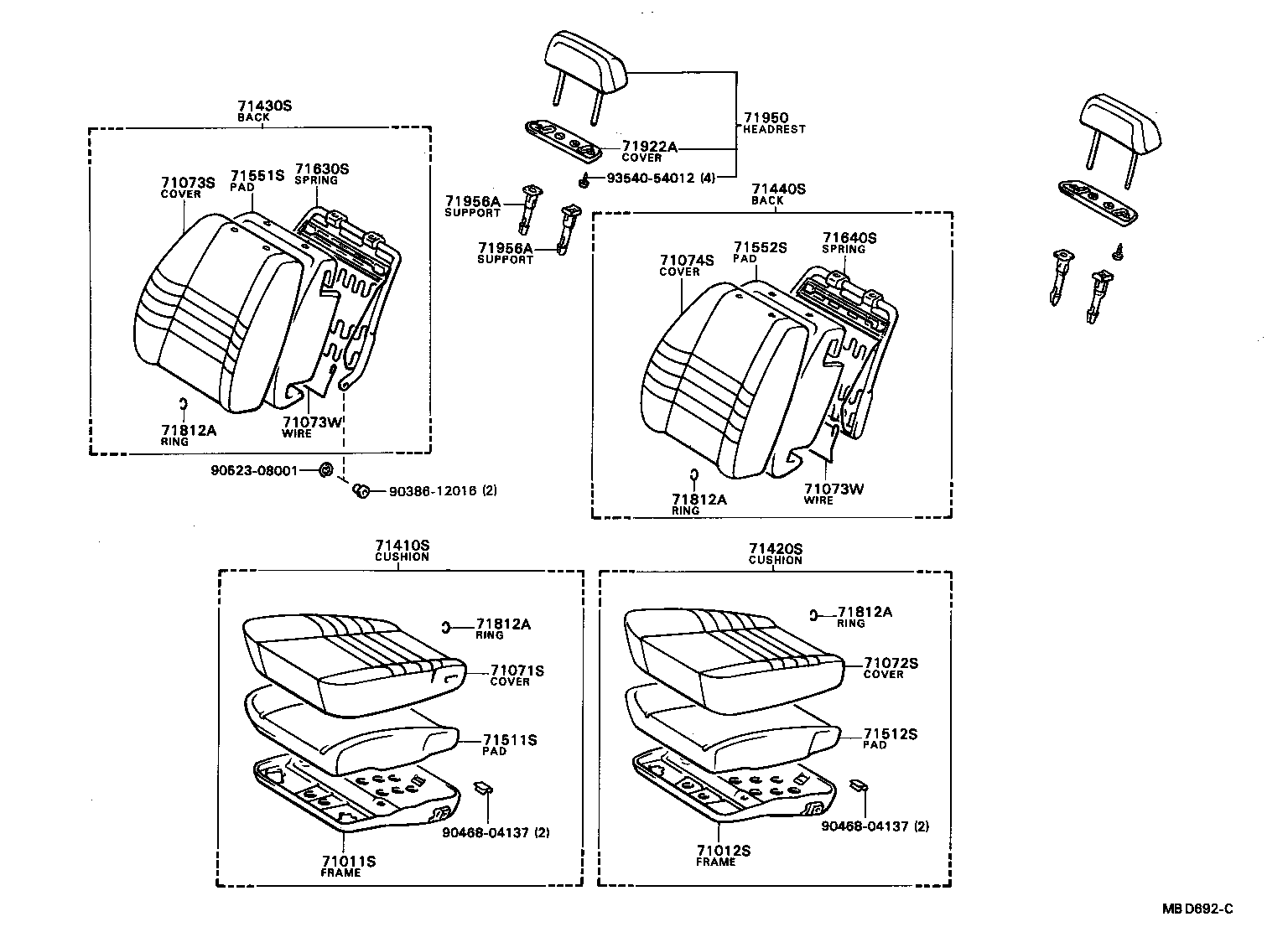

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16010 |
AL2#..DLX,GL,STD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16010 |
AL2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1635002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1635003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1635006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1635106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1635102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1635103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1647103 |
AL20..3DS..RHD..5F..GL;AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG GERMAN/U.K.SPECIAL SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1635002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1635003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1635006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1647103 |
AL20..3DS..RHD..5F..GL;AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG GERMAN/U.K.SPECIAL SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1635102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71071-1635103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1635106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1642003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1642002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1642102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71073-1642103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1642006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1642106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1651103 |
AL20..3DS..RHD..5F..GL;AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG GERMAN/U.K.SPECIAL SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16060 |
AL2# L=490 |
2 | ||
| 90580-16029 |
AL2# L=390 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16060 |
AL2# L=490 |
2 | ||
| 90580-16029 |
AL2# L=390 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1628002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-1628003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1628106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1628102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71074-1632103 |
AL20..3DS..RHD..5F..GL;AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG GERMAN/U.K.SPECIAL SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1628103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1628006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1640002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-1640006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1640003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1640102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71410-1640103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1640106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1640003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1640006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1640106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1640102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71420-1640103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1640002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1640002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1640003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1640006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1640102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71430-1640106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1640103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1640003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1640002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-1640106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1640006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1640102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71440-1640103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16050 |
AL2#..DLX,GL,STD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16050 |
AL2#..DLX,GL,STD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-16100 |
AL2#..DLX,GL,STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-16100 |
AL2#..DLX,GL,STD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10051 |
AL2#..EUR,GEN |
1 | ||
| 71630-12310 |
AL2#..DLX,GL,STD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10051 |
AL2#..EUR,GEN |
1 | ||
| 71640-12270 |
AL2#..DLX,GL,STD |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201005 |
AL20,21..GL BEIGE,BEIGE,TRIM4# |
2 | ||
| 71922-3201013 |
AL20,21..GL GRAY,GRAY,TRIM1# |
2 | ||
| 71922-3201002 |
AL20,21..GL DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1612003 |
AL20..3DS..RHD..5F..GL;AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG GERMAN/U.K.SPECIAL SPEC,GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1606003 |
AL2#..EUR GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1610003 |
AL20,21..GL RETRACTABLE TYPE,GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1606002 |
AL20,21..EUR DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-1610002 |
AL20,21..GL RETRACTABLE TYPE,DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71910-1606006 |
AL2#..EUR BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1610006 |
AL20,21..GL RETRACTABLE TYPE,BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL20,21 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
AL2# W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
AL2# W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
AL2# W/O(LOCK),GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001002 |
AL20,21 W/O(LOCK),DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001025 |
AL2# W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006002 |
AL20,21 W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
AL2# W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006025 |
AL2# W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
AL2# W/O(LOCK),GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001002 |
AL20,21 W/O(LOCK),DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001025 |
AL2# W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90468-04137 | ||||
| 90523-08001 | ||||
| 93540-54012 | ||||

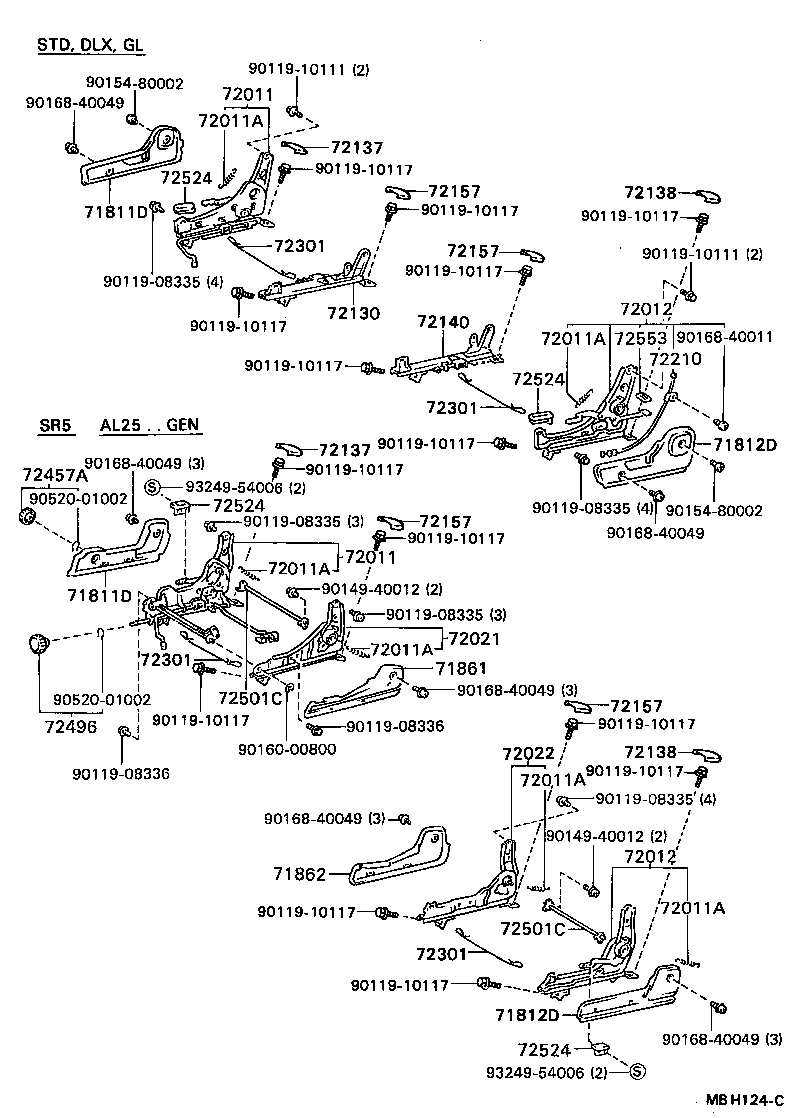

(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1603006 |
AL2#..DLX,GL,STD BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1603003 |
AL2#..DLX,GL,STD GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1603002 |
AL20,21 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1603006 |
AL2#..DLX,GL,STD BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1603003 |
AL2#..DLX,GL,STD GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1603002 |
AL20,21 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1603006 |
AL2#..DLX,GL,STD BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1603003 |
AL2#..DLX,GL,STD GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603002 |
AL20,21 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1603006 |
AL2#..DLX,GL,STD BROWN,BROWN,TRIM4# |
1 | ||
| 71812-1603003 |
AL2#..DLX,GL,STD GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1603002 |
AL20,21 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16100 |
AL25..DLX;AL20..RHD;AL20,21..5DS..LHD |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16100 |
AL25..DLX;AL20..RHD;AL20,21..5DS..LHD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AL2# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AL2# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AL2# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AL2# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AL2# |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AL2# |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16110 |
AL20..3DS..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16110 |
AL20..3DS..RHD |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-16040 |
AL25..DLX;AL20..RHD;AL20,21..5DS..LHD |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-16050 |
AL20..3DS..RHD |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-1601001 |
AL2# LH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157-1601001 |
AL2# RH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-1601001 |
AL2# LH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157-1601001 |
AL2# RH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-1601001 |
AL2# LH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157-1601001 |
AL2# RH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-1601001 |
AL2# LH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157-1601001 |
AL2# RH,BLACK,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-16080 |
AL20..3DS..RHD |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL20 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL20 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL20 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL20 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401003 |
AL2#..DLX,GL,STD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401002 |
AL20,21 LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401003 |
AL2#..DLX,GL,STD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401002 |
AL20,21 RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1401036 |
AL2#..DLX,GL,STD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401036 |
AL2#..DLX,GL,STD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401003 |
AL2#..DLX,GL,STD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401002 |
AL20,21 LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401003 |
AL2#..DLX,GL,STD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401002 |
AL20,21 RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1401036 |
AL2#..DLX,GL,STD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401036 |
AL2#..DLX,GL,STD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401003 |
AL2#..DLX,GL,STD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401002 |
AL20,21 LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401003 |
AL2#..DLX,GL,STD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401002 |
AL20,21 RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1401036 |
AL2#..DLX,GL,STD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401036 |
AL2#..DLX,GL,STD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401003 |
AL2#..DLX,GL,STD RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1401002 |
AL20,21 LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72526-1401003 |
AL2#..DLX,GL,STD LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-1401002 |
AL20,21 RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72525-1401036 |
AL2#..DLX,GL,STD RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401036 |
AL2#..DLX,GL,STD LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12020 |
AL20,21..3DS |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-08336 | ||||
| 90119-10111 | ||||
| 90119-10117 | ||||
| 90149-40012 | ||||
| 90154-80002 | ||||
| 90160-00800 | ||||
| 90168-40011 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
