AL20R-ZGMNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16050

AL20..RHD

JKC

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-32010

AL20..RHD..EUG

AISIN

 1
44608-32020

AL20..RHD;AL20,21..LHD..EUR

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-16060

AL20..RHD

 1
44618 - SEAL, BOOSTER BODY
44621-28120

AL20..RHD..EUG

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

AL20..RHD..EUG

 1
44642 - PISTON, BRAKE BOOSTER
44642-16050

AL20..RHD..EUG

 1
44663 - KEY, VALVE STOPPER
44635-28120

AL20..RHD..EUG

 1
Common parts
90179-08038

(8205- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-16050

AL20..RHD

JKC

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

AL20..RHD..EUG

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-32010

AL20..RHD..EUG

AISIN

 1
44608-32020

AL20..RHD;AL20,21..LHD..EUR

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-16060

AL20..RHD

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AL20..RHD;AL20,21..LHD..EUR

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-16060

AL20..RHD;AL20,21..LHD..EUR

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

AL20..RHD;AL20,21..LHD..EUR

 1
44673A - BODY, BOOSTER VALVE
44673-16060

AL20..RHD;AL20,21..LHD..EUR

 1
Common parts
90179-08038

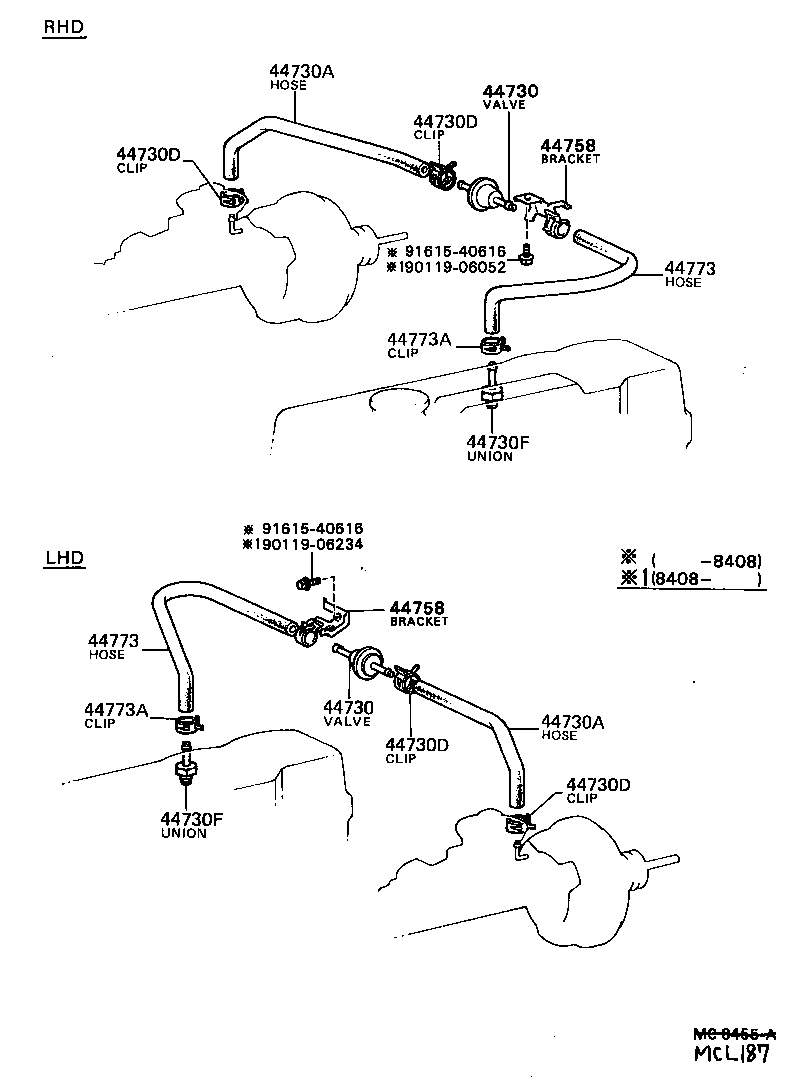

(8205- )

Click highlighted areas on diagram

diagram 44730 44730 44730A 44730A 44730D 44730D 44730D 44730D 44730F 44730F 44758 44758 44773 44773 44773A 44773A 9011906052 9011906234 9161540616 9161540616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AL2#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AL2#

 1
44730A - HOSE, VACUUM, NO.1
44772-16030

AL20,25..RHD

 1
44730A - HOSE, VACUUM, NO.1
44772-16030

AL20,25..RHD

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

AL20

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

AL20

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

AL20

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

AL20

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

AL2#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

AL2#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-16030

AL20,25..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-16030

AL20,25..RHD

 1
44773 - HOSE, VACUUM, NO.2
44773-16030

AL20,25..RHD

 1
44773 - HOSE, VACUUM, NO.2
44773-16030

AL20,25..RHD

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

AL20

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

AL20

 1
Common parts
90119-06052
90119-06234
91615-40616
