AL20R-ZGHNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

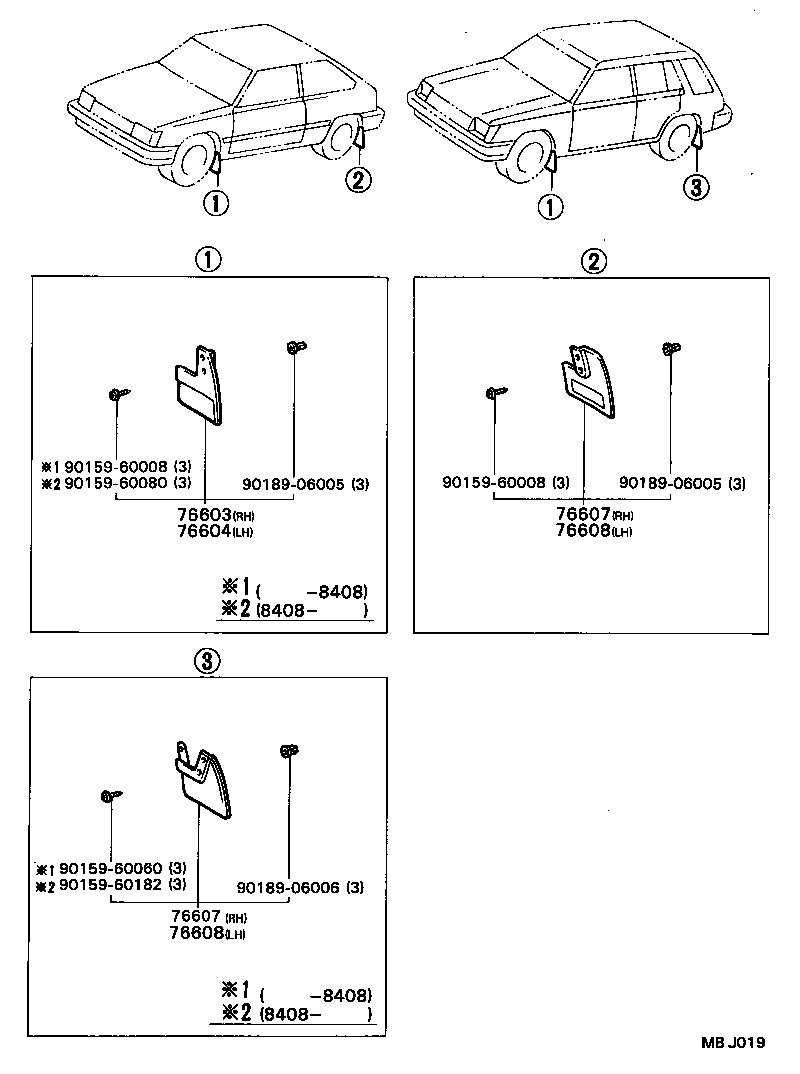

Click highlighted areas on diagram

diagram 76603 76604 76607 76607 76608 76608 9015960008 9015960008 9015960060 9015960080 9015960182 9018906005 9018906005 9018906006
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-19085

AL20,21..(DLX,GL)..EUR

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-19085

AL20,21..(DLX,GL)..EUR

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19135

AL20,21..(DLX,GL)..EUR

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19135

AL20,21..(DLX,GL)..EUR

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19135

AL20,21..(DLX,GL)..EUR

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19135

AL20,21..(DLX,GL)..EUR

 1
Common parts
90159-60008
90159-60060
90159-60080
90159-60182
90189-06005
90189-06006
