AL20R-ZGHNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8605) ; (8605- )3A ; (8605- )3AC..ARL

Click highlighted areas on diagram

(8605- )SWEDEN SPEC

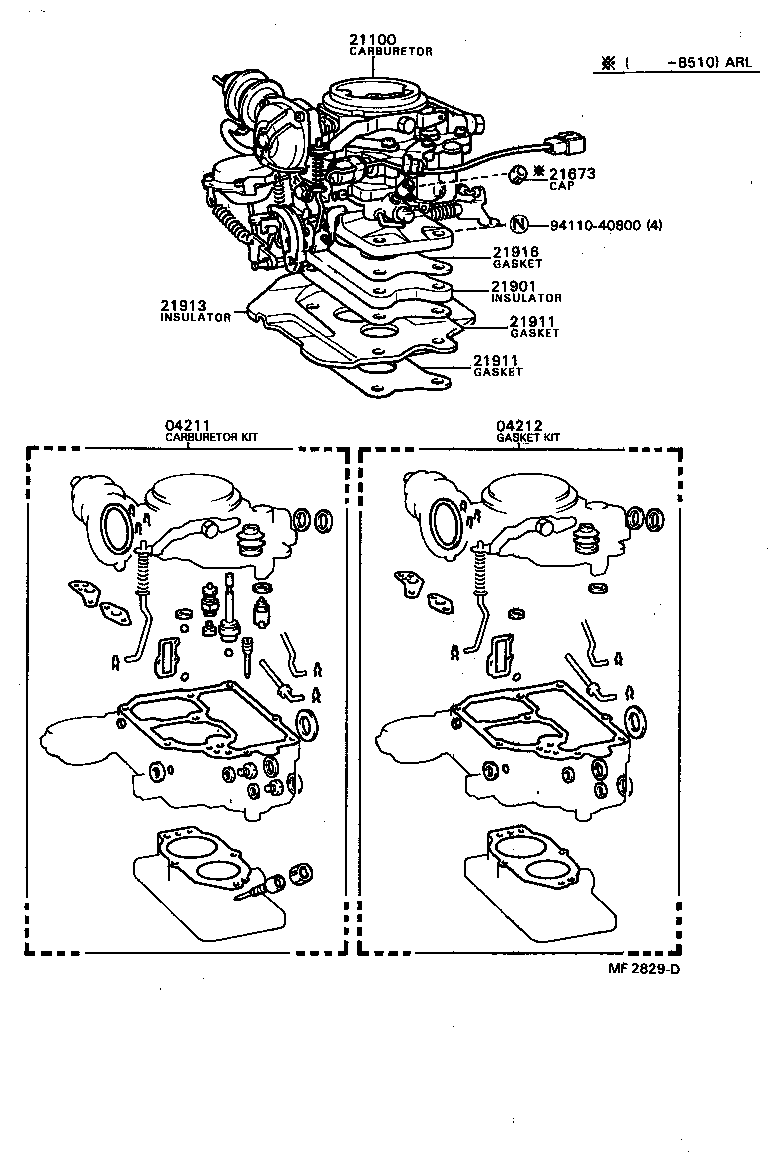

diagram 04211 04212 21100 21673 21901 21911 21911 21913 21916 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-14050

2A,3A..AL20,25..EUG

 1
04212 - GASKET KIT, CARBURETOR
04212-14010

2A,3A..AL20,25

 1
21100 - CARBURETOR ASSY
21100-14100

2A,3A..AL20,25..RHD..EUG

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15011

2A,3A#..AL2#..EUR,GEN

 1
21911 - GASKET, CARBURETOR
21916-15030

2A,3A#..AL2#

 2
21911 - GASKET, CARBURETOR
21916-15030

2A,3A#..AL2#

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15030

2A,3A#..AL2#

 1
Common parts
94110-40800
