AL20R-ZGHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

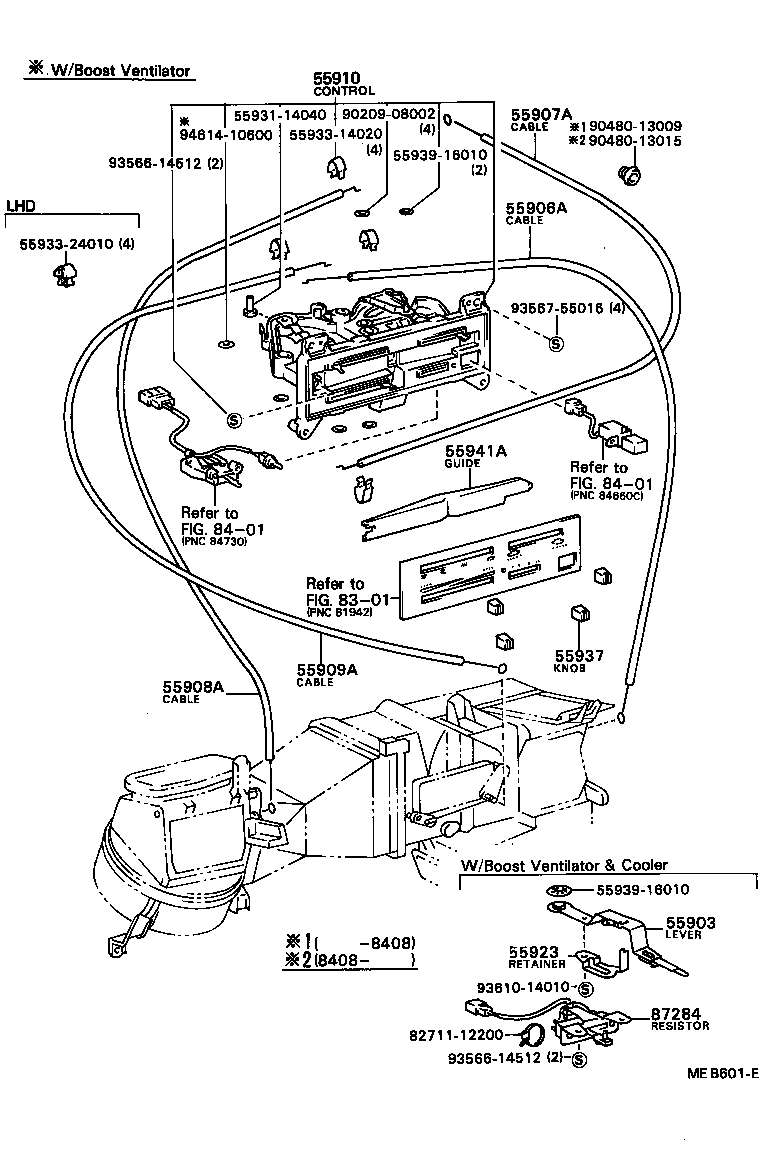

Click highlighted areas on diagram

diagram 55903 55906A 55907A 55908A 55909A 55910 55923 5593114040 5593314020 5593324010 55937 5593916010 5593916010 55941A 8271112200 8301 8401 8401 87284 9020908002 9048013009 9048013015 9356614512 9356614512 9356755016 9361014010 9461410600
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-16030

AL20,25..RHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-16060

AL20,25..RHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-16030

AL20,25..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-16020

AL20,25..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-16040

AL20,25..RHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

AL2#

 4
55941A - GUIDE, HEATER CONTROL
55941-16020

AL20,25..RHD

 1
Common parts
55931-14040
55933-14020
55933-24010
55939-16010
82711-12200
90209-08002
90480-13009
90480-13015
93566-14512
93567-55016
93610-14010
94614-10600
Linked diagrams
8301
8401

(8205- )

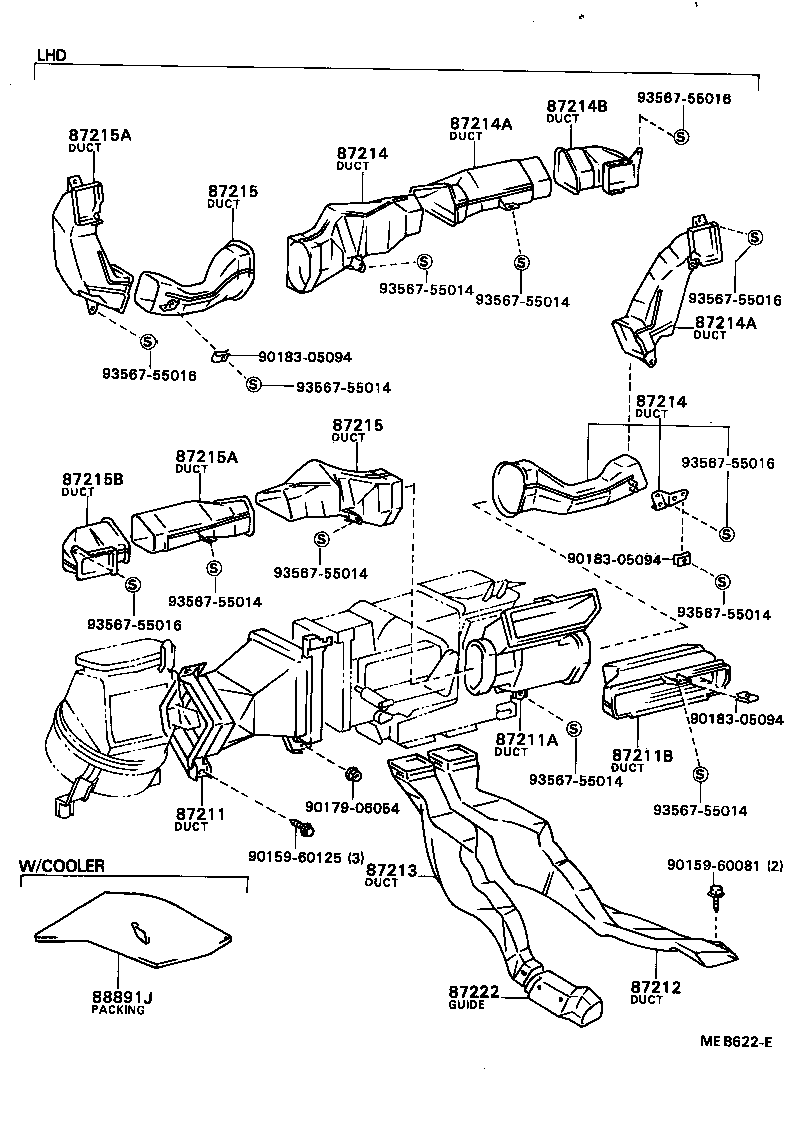

Click highlighted areas on diagram

diagram 87211 87211A 87211B 87212 87213 87214 87214 87214A 87214A 87214B 87215 87215 87215A 87215A 87215B 87222 88891J 9015960081 9015960125 9017906054 9018305094 9018305094 9018305094 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-16040

AL20,25..RHD

 1
87211A - DUCT, AIR, NO.2
87201-16030

AL20,25..RHD

 1
87211B - DUCT, AIR, NO.3
55086-16030

AL20,25..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-16020

AL20,25..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-16020

AL20,25..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-16010

AL20,25..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-16010

AL20,25..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-16030

AL20,25..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-16030

AL20,25..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-16010

AL20,25..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55088-16010

AL20,25..RHD

 1
87215B - DUCT, AIR, SIDE NO.3 LH
55089-16010

AL20,25..RHD

 1
Common parts
90159-60081
90159-60125
90179-06054
90183-05094
93567-55014
93567-55016
