AL20R-ZGHDS (1982)
Toyota Tercel
Production
May 1982
-
Aug 1984
Engine
2A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8408)3FC

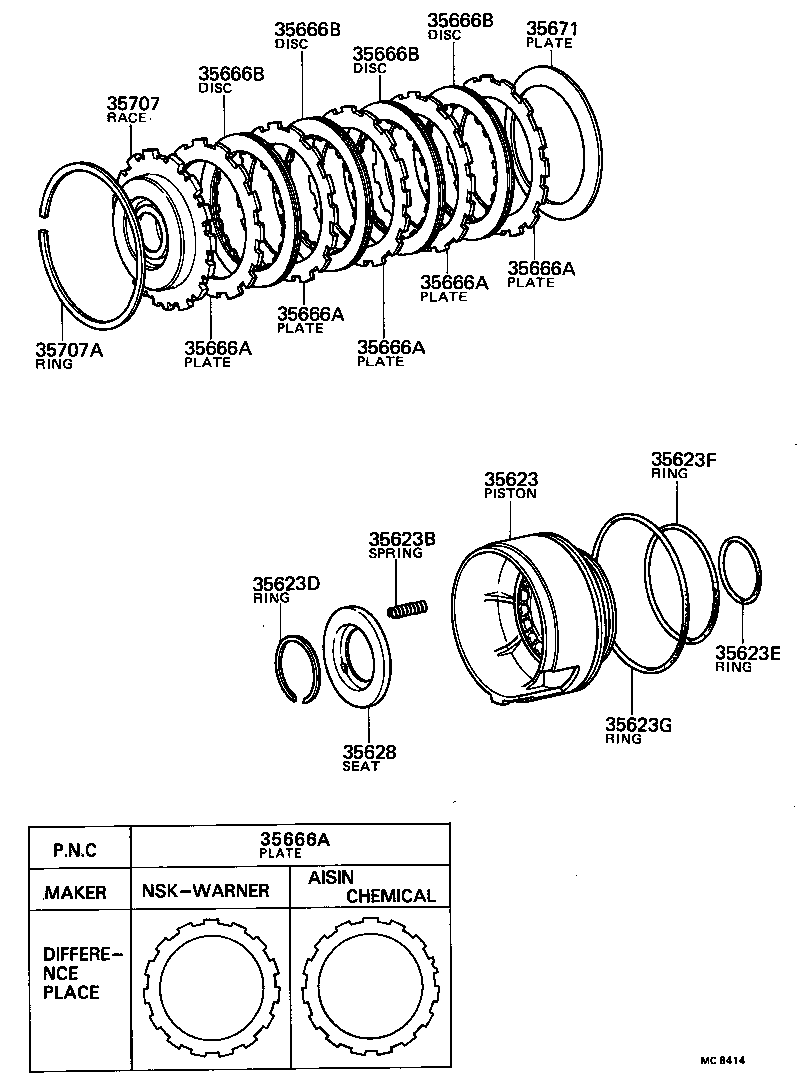

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-16010 |
AL20,21..3FC |
1 | ||
| 35623B - SPRING (FOR BRAKE PISTON RETURN) | ||||
| 90501-09016 |
AL20,21..3FC |
18 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-45001 |
AL20,21..3FC |
1 | ||
| 35623E - RING, O, NO.1 (FOR BRAKE PISTON) | ||||
| 90301-49001 |
AL20,21..3FC |
1 | ||
| 35623F - RING, O, NO.2 (FOR BRAKE PISTON) | ||||
| 90301-86001 |
AL20,21..3FC |
1 | ||
| 35623G - RING, O, NO.3 (FOR BRAKE PISTON) | ||||
| 90301-99192 |
AL20,21..3FC |
1 | ||
| 35628 - SEAT, BRAKE PISTON RETURN SPRING | ||||
| 35628-16010 |
AL20,21..3FC |
1 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
AL20,21..3FC AISIN CHEMICAL |
5 | ||
| 35634-22050 |
AL20,21..3FC NSK-WARNER |
5 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
AL20,21..3FC AISIN CHEMICAL |
5 | ||
| 35634-22050 |
AL20,21..3FC NSK-WARNER |
5 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
AL20,21..3FC AISIN CHEMICAL |
5 | ||
| 35634-22050 |
AL20,21..3FC NSK-WARNER |
5 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
AL20,21..3FC AISIN CHEMICAL |
5 | ||
| 35634-22050 |
AL20,21..3FC NSK-WARNER |
5 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
AL20,21..3FC AISIN CHEMICAL |
5 | ||
| 35634-22050 |
AL20,21..3FC NSK-WARNER |
5 | ||
| 35666A - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22080 |
AL20,21..3FC AISIN CHEMICAL |
5 | ||
| 35634-22050 |
AL20,21..3FC NSK-WARNER |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22050 |
AL20,21..3FC |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22050 |
AL20,21..3FC |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22050 |
AL20,21..3FC |
4 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22050 |
AL20,21..3FC |
4 | ||
| 35671 - PLATE, BRAKE CUSHION | ||||
| 35671-16010 |
AL20,21..3FC |
1 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30010 |
AL20,21..3FC |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
AL20,21..3FC |
1 | ||
