AL20L-ZHMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )AL20..GEN ; (8205- )AL25..LHD ; (8205- )AL25..RHD..GEN ; (8205-

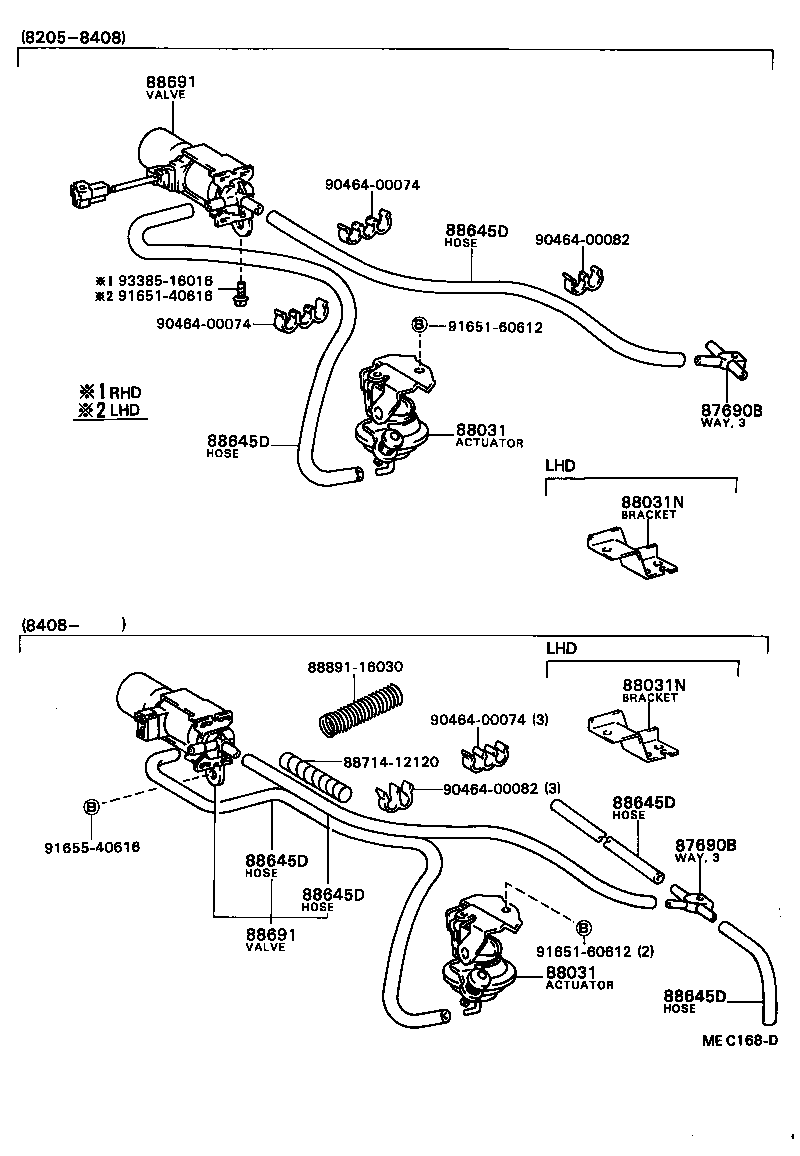

Click highlighted areas on diagram

diagram 87690B 87690B 88031 88031 88031N 88031N 88645D 88645D 88645D 88645D 88645D 88645D 88691 88691 8871412120 8889116030 9046400074 9046400074 9046400074 9046400082 9046400082 9165140616 9165160612 9165160612 9165540616 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AL2#..LHD

 1
87690B - WAY, 3
90413-04005

AL2#..LHD

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..LHD

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..LHD

 1
88031N - BRACKET, IDLE-UP ACTUATOR
88688-16090

AL2#..LHD

 1
88031N - BRACKET, IDLE-UP ACTUATOR
88688-16090

AL2#..LHD

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AL2#..LHD

*H,L=450,MARK=#*

 1
95411-10060

AL2#..LHD

*H,L=570,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AL2#..LHD

*H,L=450,MARK=#*

 1
95411-10060

AL2#..LHD

*H,L=570,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AL2#..LHD

*H,L=450,MARK=#*

 1
95411-10060

AL2#..LHD

*H,L=570,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AL2#..LHD

*H,L=450,MARK=#*

 1
95411-10060

AL2#..LHD

*H,L=570,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AL2#..LHD

*H,L=450,MARK=#*

 1
95411-10060

AL2#..LHD

*H,L=570,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AL2#..LHD

*H,L=450,MARK=#*

 1
95411-10060

AL2#..LHD

*H,L=570,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-87101

AL2#..LHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-87101

AL2#..LHD

 1
Common parts
88714-12120
88891-16030
90464-00074
90464-00082
91651-40616
91651-60612
91655-40616
93385-16016
