AL20L-ZHMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)AL20,21

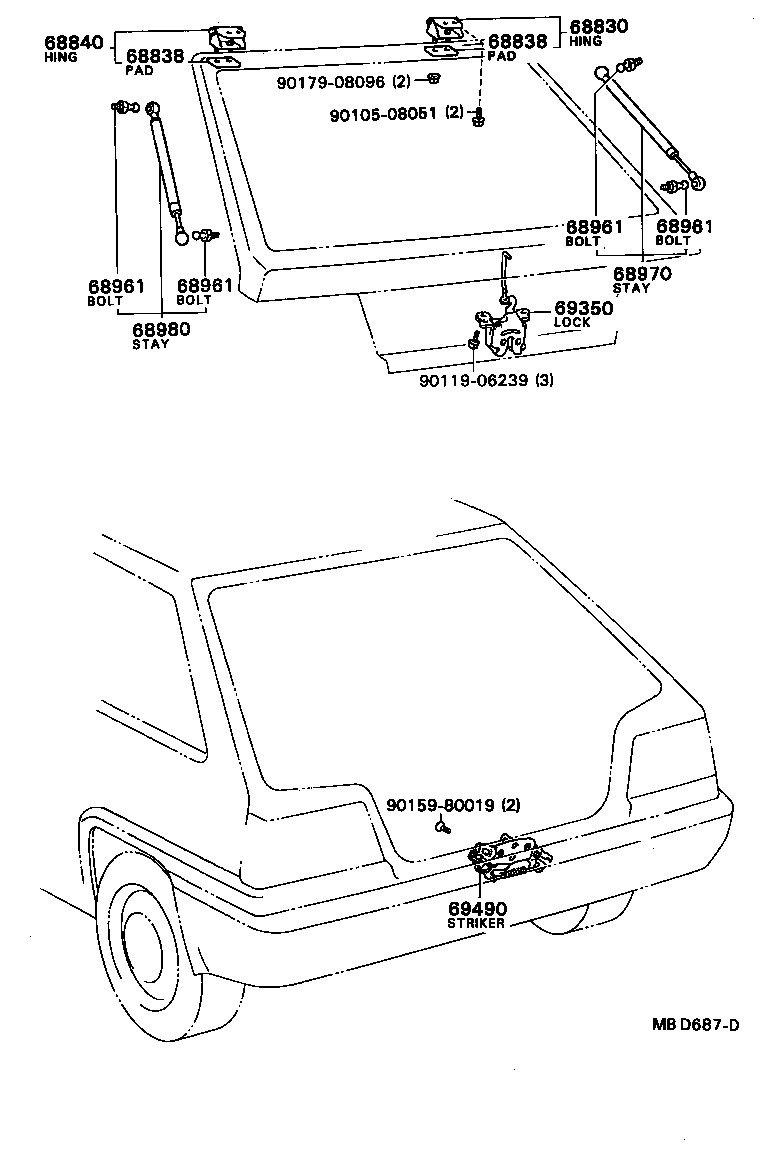

Click highlighted areas on diagram

diagram 68830 68838 68838 68840 68961 68961 68961 68961 68970 68980 69350 69490 9010508051 9011906239 9015980019 9017908096
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68801-16010

AL2#

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AL2#

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-14021

AL2#

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-16010

AL2#

 1
68961 - BOLT, BACK DOOR STAY
68961-16010

AL2#

 4
68961 - BOLT, BACK DOOR STAY
68961-16010

AL2#

 4
68961 - BOLT, BACK DOOR STAY
68961-16010

AL2#

 4
68961 - BOLT, BACK DOOR STAY
68961-16010

AL2#

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19325

AL20,21

TOKIKO

 1
68950-19305

AL20,21

W/RR WIPER,TOKIKO

 1
68950-19295

AL20,21

W/RR WIPER,KAYABA

 1
68950-19315

AL20,21

KAYABA

 1
68980 - STAY ASSY, BACK DOOR
68950-19305

AL20,21

W/RR WIPER,TOKIKO

 1
68950-19295

AL20,21

W/RR WIPER,KAYABA

 1
68950-19325

AL20,21

TOKIKO

 1
68950-19315

AL20,21

KAYABA

 1
69350 - LOCK ASSY, BACK DOOR
69350-16020

AL20,21

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-16030

AL20,21

 1
Common parts
90105-08051
90119-06239
90159-80019
90179-08096
