AL20L-ZHKDSW (1982)
Toyota Tercel
(8205- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30030 |
AL2# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-16040 |
AL2#..LHD |
1 | ||
| 55701F - BRACE, COWL TOP TO APRON | ||||
| 55715-16020 |
AL2# RH |
1 | ||
| 55716-16020 |
AL2# LH |
1 | ||
| 55701F - BRACE, COWL TOP TO APRON | ||||
| 55715-16020 |
AL2# RH |
1 | ||
| 55716-16020 |
AL2# LH |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-16020 |
AL2# |
1 | ||
| 55713B - COVER, COWL SIDE PANEL HOLE, RH | ||||
| 55729-16010 |
AL2#..LHD |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-16020 |
AL2# |
1 | ||
| 55755 - SCREEN, HEATER AIR DUCT | ||||
| 55756-16030 |
AL2#..LHD |
1 | ||
| 55781 - LOUVER, COWL VENTILATOR | ||||
| 55781-16020 |
AL2#..LHD |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-16030 |
AL2# |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-16010 |
AL2# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-16030 |
AL2#..LHD |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55970-16010 |
AL2#..ARL,EUR |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55980-16010 |
AL2#..ARL,EUR |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
AL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN |
2 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
AL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN |
2 | ||
| 55969 - COVER, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55959-16020 |
AL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN RH |
1 | ||
| 55969-16010 |
AL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN LH |
1 | ||
| 55969 - COVER, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55959-16020 |
AL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN RH |
1 | ||
| 55969-16010 |
AL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN LH |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-16070 |
AL20..(DLX,STD)..EUG *LAM,T=4.7 |
1 | ||
| 56111-16050 |
AL20..(DLX,STD)..EUG *ZT,T=5.0 |
1 | ||
| 56111-16080 |
AL20..DLX,GL *TL,T=4.7 |
1 | ||
| 56111-16100 |
AL2#..DLX,GL *TL,T=5.3,*TL,T=5.3 |
1 | ||
| 56111-16090 |
AL20,21..(DLX,STD)..EUR *LAM,T=5.3,*LAM,T=5.3 |
1 | ||
| 56111-16060 |
AL25..EUG;AL20..DLX,GL;AL25..DLX..(ARL,GEN) *TZT,T=5.0,*TZT,T=5.0 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-16020 |
AL2#..EUR,GEN |
2 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90333-20001 | ||||
| 90950-01181 | ||||
| 90950-01293 | ||||

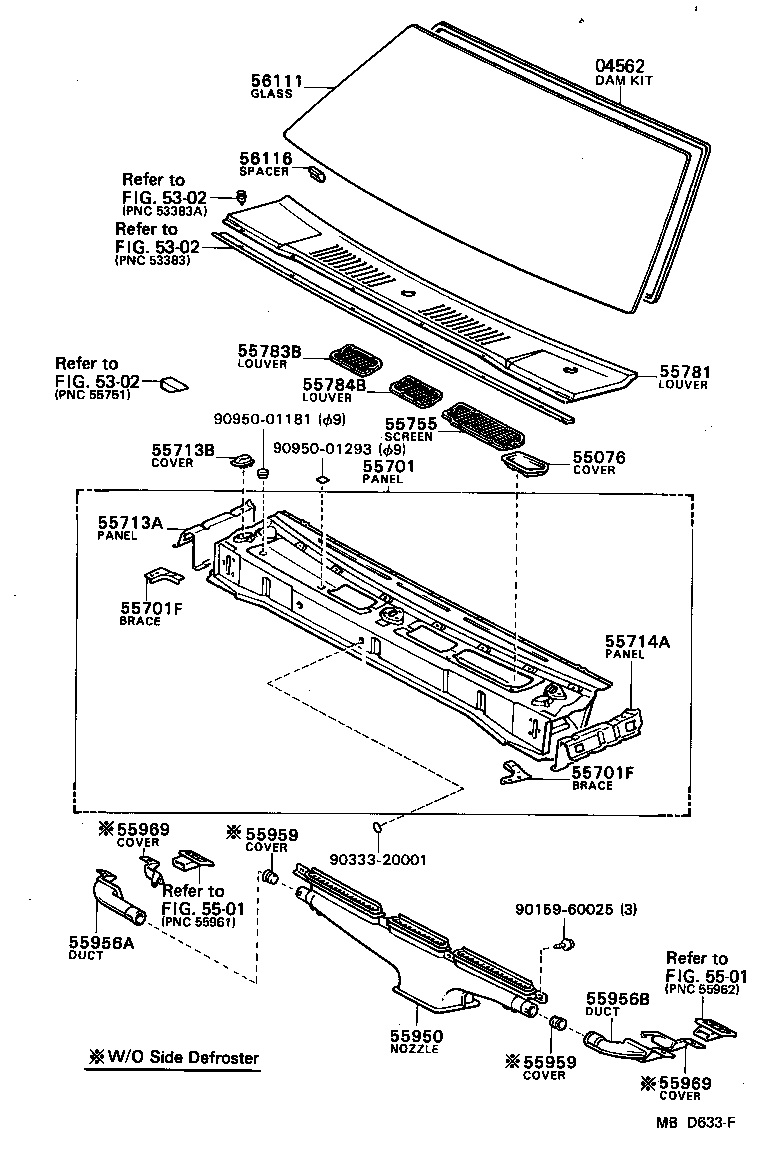

| Linked diagrams | ||||
| 5302 | ||||
| 5501 | ||||
