AL20L-ZHHNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)ARL,EUR ; (8408- )EUR ; (8605-)ARL,GEN

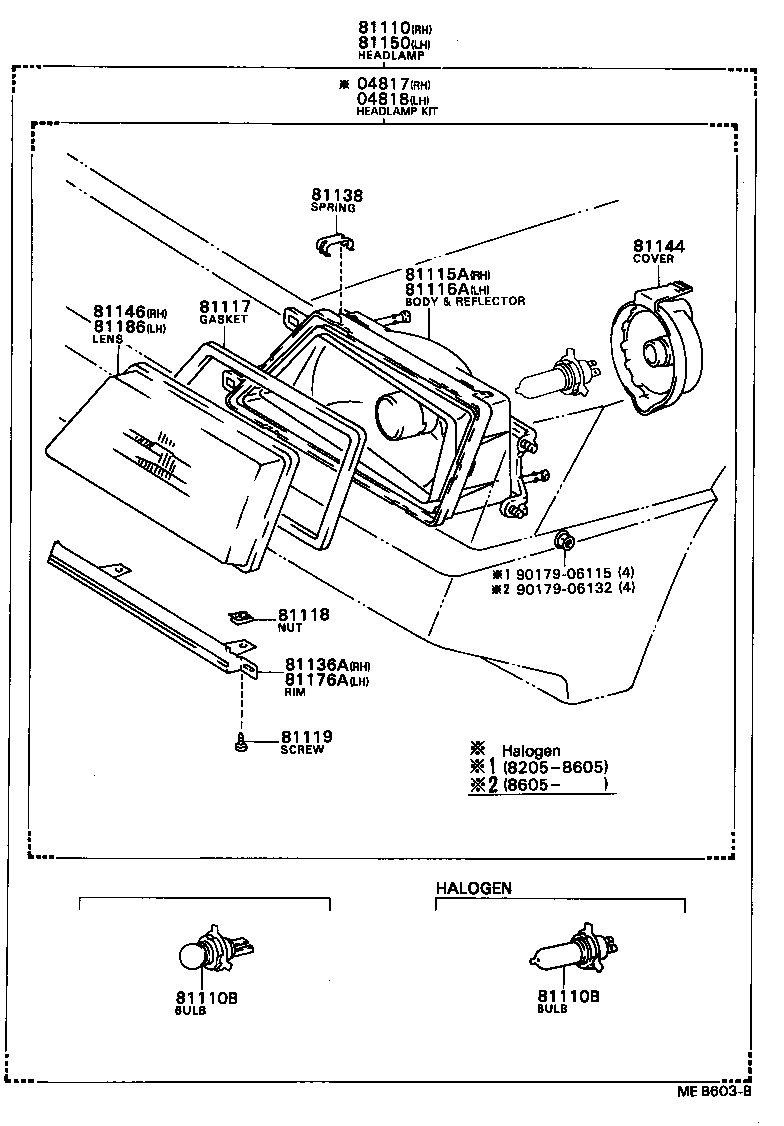

Click highlighted areas on diagram

diagram 04817 04818 81110 81110B 81110B 81115A 81116A 81117 81118 81119 81136A 81138 81144 81146 81150 81176A 81186 9017906115 9017906132
Part # Description Qty Price
04817 - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-16030

AL20,21..LHD

W/HALOGEN HEADLAMP

 1
04818 - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-16030

AL20,21..LHD

W/HALOGEN HEADLAMP

 1
81110 - HEADLAMP ASSY, RH
81110-80211

AL20,21..LHD

 1
81110-80215

AL20,21..LHD

HALOGEN,YELLOW

 1
81110-80215

AL20..LHD

HALOGEN,YELLOW

 1
81110-80212

AL20,21..LHD

HALOGEN,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

AL20,21..LHD

12V 45/40W,WHITE,12V 45/40W

 2
90981-13016

AL20,21..LHD

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
90981-13015

AL2#..ARL,EUR

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

AL20,21..LHD

12V 45/40W,WHITE,12V 45/40W

 2
90981-13016

AL20,21..LHD

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
90981-13015

AL2#..ARL,EUR

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81135-16170

AL20,21..LHD

 1
81135-16180

AL20,21..LHD

HALOGEN

 1
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81175-16170

AL20,21..LHD

 1
81175-16180

AL20,21..LHD

HALOGEN

 1
81117 - PACKING, HEADLAMP HOUSING
81147-16180

AL20,21..EUR;AL20..LHD..GEN

 2
81118 - NUT, SPRING
90183-04016

AL20,21..EUR;AL20..LHD..GEN

 4
81119 - SCREW, HEADLAMP
93540-54012

AL20,21..EUR;AL20..LHD..GEN

 4
81136A - RIM, HEADLAMP, RH
81136-16180

AL20,21..EUR;AL20..LHD..GEN

 1
81138 - SPRING, HEADLAMP
81138-20550

AL20,21..EUR;AL20..LHD..GEN

 12
81144 - COVER, HEADLAMP, NO.1
81139-30481

AL20,21..EUR;AL20..LHD..GEN

 2
81146 - LENS, HEADLAMP, RH
81146-16180

AL20,21..LHD

HALOGEN

 1
81146-16170

AL20,21..LHD

 1
81150 - HEADLAMP ASSY, LH
81150-80212

AL20,21..LHD

HALOGEN,YELLOW

 1
81150-80208

AL20,21..LHD

 1
81150-80209

AL20,21..LHD

HALOGEN,WHITE

 1
81150-80212

AL20..LHD

HALOGEN,YELLOW

 1
81176A - RIM, HEADLAMP, LH
81176-16180

AL20,21..EUR;AL20..LHD..GEN

 1
81186 - LENS, HEADLAMP, LH
81186-16180

AL20,21..LHD

HALOGEN

 1
81186-16170

AL20,21..LHD

 1
Common parts
90179-06115
90179-06132
